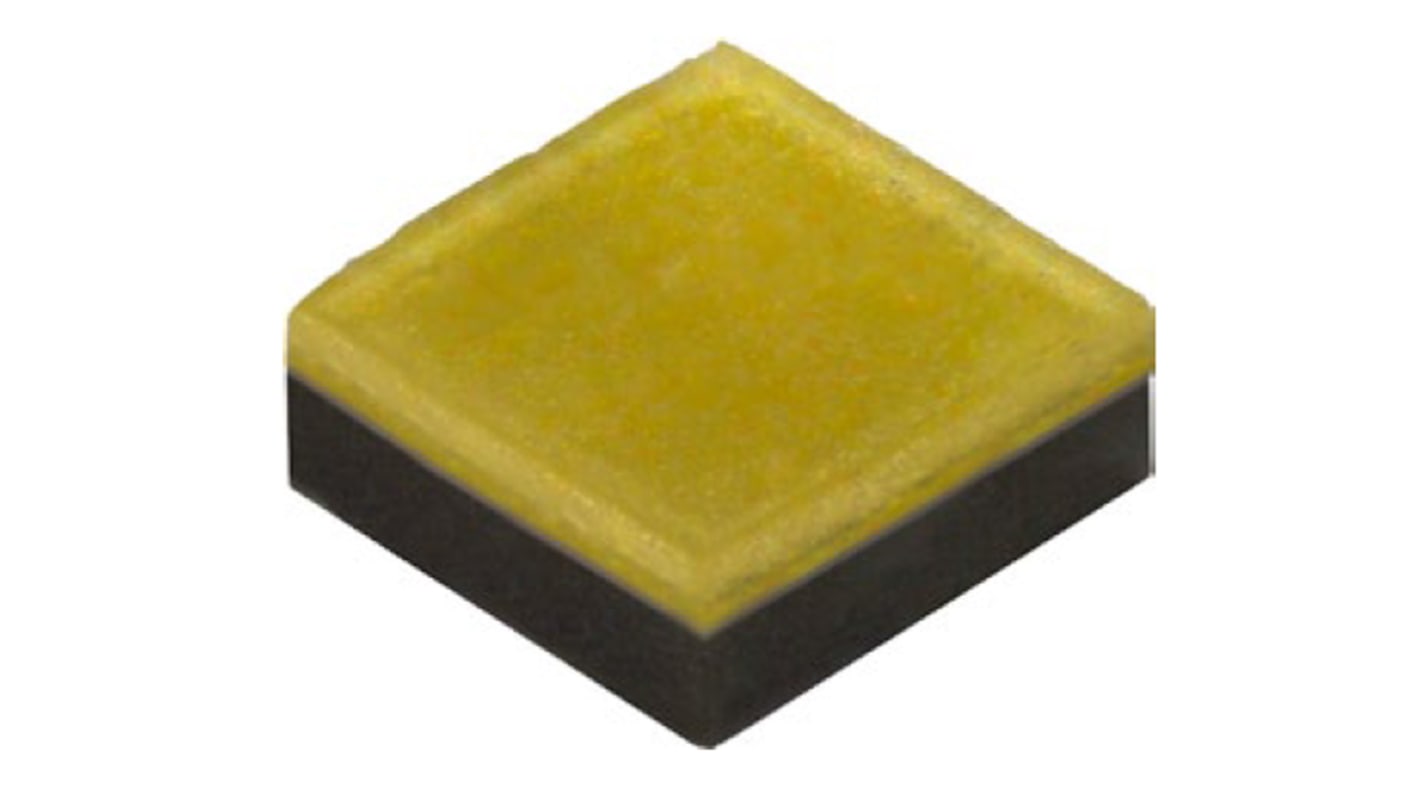

Cree LED2.73 → 2.98 V White LED 1616 (0606) SMD, XLamp XD16 XD16AWT-H0-0000-00000BKE5
- RS Stock No.:
- 144-9375
- Mfr. Part No.:
- XD16AWT-H0-0000-00000BKE5
- Manufacturer:
- Cree LED
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP432.22
(exc. VAT)
PHP484.085
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 345 unit(s) shipping from December 29, 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 45 | PHP86.444 | PHP432.22 |
| 50 - 95 | PHP83.852 | PHP419.26 |
| 100 - 245 | PHP81.336 | PHP406.68 |
| 250 - 495 | PHP78.894 | PHP394.47 |
| 500 + | PHP76.526 | PHP382.63 |
*price indicative
- RS Stock No.:
- 144-9375
- Mfr. Part No.:
- XD16AWT-H0-0000-00000BKE5
- Manufacturer:
- Cree LED
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cree LED | |
| LED Colours | White | |
| Package Type | 1616 (0606) | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 1 | |
| Forward Voltage | 2.73 → 2.98 V | |
| Number of Pins | 2 | |
| Viewing Angle | 135 ° | |
| Luminous Flux | 170 lm | |
| Lens Shape | Square | |
| Forward Current | 1500mA | |
| Colour Temperature | 4000K | |
| Series | XLamp XD16 | |
| Dimensions | 1.6 x 1.6 x 0.7mm | |
| Select all | ||
|---|---|---|
Brand Cree LED | ||
LED Colours White | ||
Package Type 1616 (0606) | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.73 → 2.98 V | ||
Number of Pins 2 | ||
Viewing Angle 135 ° | ||
Luminous Flux 170 lm | ||
Lens Shape Square | ||
Forward Current 1500mA | ||
Colour Temperature 4000K | ||
Series XLamp XD16 | ||
Dimensions 1.6 x 1.6 x 0.7mm | ||
Cree XLamp XD16 LEDs
The Cree XLamp XD16 series of white LEDs offer a high lumen density of up to 264lm per square meter. XD16 LEDs come in the Cree Dmax™ package, providing high light output and high lumens per watt. XD16 LEDs also provide excellent thermal performance and reliability.
Suitable applications include; street lghting, high bays and other high performance luminaire designs.
Features and Benefits:
70, 80 or 90 CRI available
High lumen density
Wide viewing angle
NX Technology Platform package
Footprint: 1.6 x 1.6 mm
Suitable applications include; street lghting, high bays and other high performance luminaire designs.
Features and Benefits:
70, 80 or 90 CRI available
High lumen density
Wide viewing angle
NX Technology Platform package
Footprint: 1.6 x 1.6 mm
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
