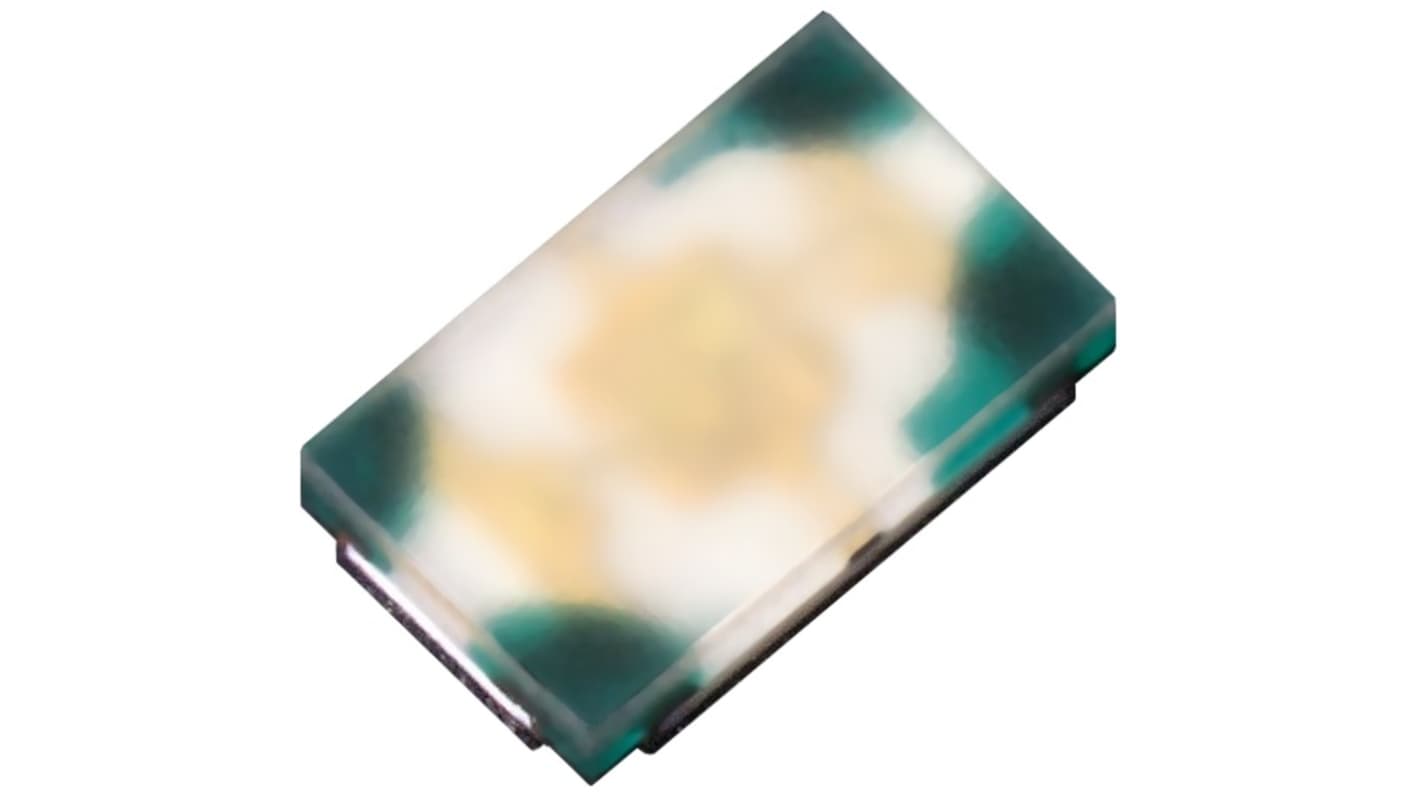

ROHM 1.5 V Clear LED Chip LED Surface Mount SML SML-P14R3WT86
- RS Stock No.:
- 264-955
- Mfr. Part No.:
- SML-P14R3WT86
- Manufacturer:
- ROHM
This image is representative of the product range
Bulk discount available
Subtotal (1 tape of 25 units)*
PHP399.725
(exc. VAT)
PHP447.70
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 75 unit(s) shipping from March 23, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tape* |
|---|---|---|
| 25 - 75 | PHP15.989 | PHP399.73 |
| 100 - 225 | PHP15.186 | PHP379.65 |
| 250 - 475 | PHP14.069 | PHP351.73 |
| 500 - 975 | PHP12.952 | PHP323.80 |
| 1000 + | PHP12.463 | PHP311.58 |
*price indicative
- RS Stock No.:
- 264-955
- Mfr. Part No.:
- SML-P14R3WT86
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | LED | |
| LED Colour | Clear | |
| Maximum Forward Current | 50mA | |
| Package Type | Chip LED | |
| Mount Type | Surface Mount | |
| Packaging | One Reel in Aluminium Bag | |
| Maximum Power Dissipation | 100mW | |
| Forward Voltage | 1.5V | |
| Dominant Wavelength | 940 nm | |
| Standards/Approvals | RoHS | |
| Lens Colour | Milky | |
| Series | SML | |
| Lens Finish | Milky White Diffused Resin | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type LED | ||
LED Colour Clear | ||
Maximum Forward Current 50mA | ||
Package Type Chip LED | ||
Mount Type Surface Mount | ||
Packaging One Reel in Aluminium Bag | ||
Maximum Power Dissipation 100mW | ||
Forward Voltage 1.5V | ||
Dominant Wavelength 940 nm | ||
Standards/Approvals RoHS | ||
Lens Colour Milky | ||
Series SML | ||
Lens Finish Milky White Diffused Resin | ||
Automotive Standard No | ||
The ROHM Near-infrared surface mount LED is meticulously designed for both consumer and industrial applications. Featuring advanced AlGaAs technology, it delivers exceptional performance encased in milky white diffused resin, providing optimal light diffusion and intensity control.
Constructed for surface mount applications allowing for ease of integration into modern electronic designs
Robust soldering guidelines ensure durability during assembly
Lightweight design minimises overall assembly weight for end products
