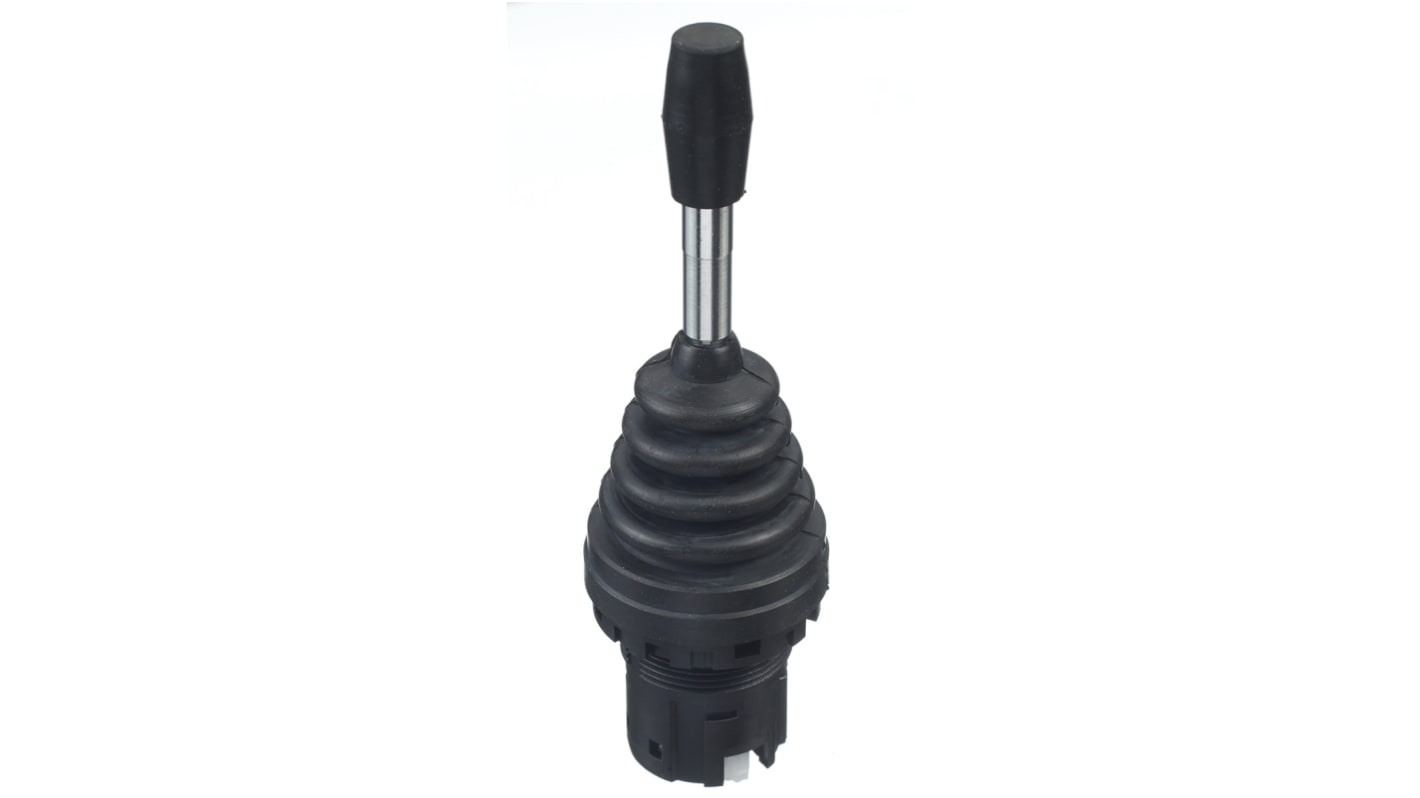

Idec 2-Axis Joystick Lever Spring Return, IP65, 10 A
- RS Stock No.:
- 168-3796
- Mfr. Part No.:
- HW1M-2222
- Manufacturer:
- Idec
Subtotal (1 unit)*
PHP2,907.83
(exc. VAT)
PHP3,256.77
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from July 20, 2026
- Plus 20 unit(s) shipping from September 21, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP2,907.83 |
*price indicative
- RS Stock No.:
- 168-3796
- Mfr. Part No.:
- HW1M-2222
- Manufacturer:
- Idec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Series | HW1M | |
| Product Type | Joystick | |
| Number of Axes | 2 | |
| Switch Technology | Spring Return | |
| IP Rating | IP65 | |
| Handle Type | Lever | |
| Switch Contact Current | 10 A | |
| Contact Configuration | 2 NO/2 NC | |
| Contact Material | Silver | |
| Joystick Travel | ±36 mm | |
| Terminal Type | Screw | |
| Mechanical Life | 250000Operations | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | -25°C | |
| Minimum Operating Temperature | 60°C | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Series HW1M | ||
Product Type Joystick | ||
Number of Axes 2 | ||
Switch Technology Spring Return | ||
IP Rating IP65 | ||
Handle Type Lever | ||
Switch Contact Current 10 A | ||
Contact Configuration 2 NO/2 NC | ||
Contact Material Silver | ||
Joystick Travel ±36 mm | ||
Terminal Type Screw | ||
Mechanical Life 250000Operations | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature -25°C | ||
Minimum Operating Temperature 60°C | ||
- COO (Country of Origin):
- JP
The Idec Joystick switch lever has spring return switch technology and handle height 72mm.
Operating Temperature: -25°C to +60°C
Note
This article is a joystick only. The contact block mounting adapter 833-6786 and the contact blocks NO: 168-3802 o NC: 168-3801 must be ordered separately to complete the product.
