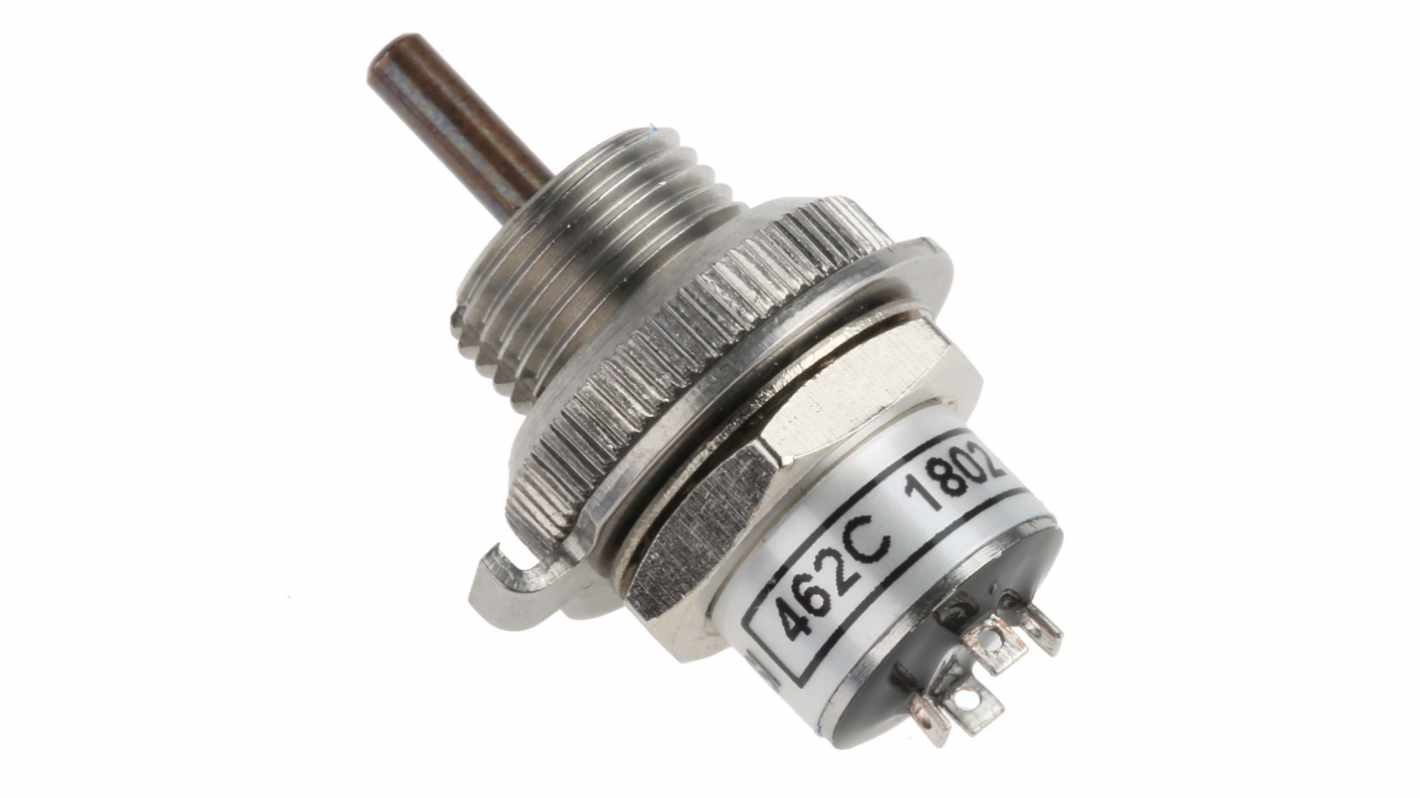

Ultra Electronics 2-Axis Joystick Knob Momentary, IP67, 5 V dc

RS Stock No.:: 419-681
Mfr. Part No.:: 462C-1
Manufacturer:: Ultra Electronics

Ultra Electronics 2-Axis Joystick Knob Momentary, IP67, 5 V dc

Bulk discount available

Subtotal (1 unit)*

PHP89,798.80

(exc. VAT)

PHP100,574.66

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

29 unit(s) ready to ship from another location
Plus 25 unit(s) shipping from October 13, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	PHP89,798.80
5 - 9	PHP87,104.83
10 - 24	PHP84,491.67
25 +	PHP81,956.91

*price indicative

RS Stock No.:: 419-681
Mfr. Part No.:: 462C-1
Manufacturer:: Ultra Electronics

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Ultra Electronics
	Product Type	Joystick
	Number of Axes	2
	Series	462
	Switch Technology	Momentary
	IP Rating	IP67
	Handle Type	Knob
	Joystick Travel	15 °
	Terminal Type	Solder
	Contact DC Voltage	5V dc
	Mechanical Life	100000h
	Standards/Approvals	RoHS
	Maximum Operating Temperature	50°C
	Minimum Operating Temperature	0°C

	Select all
	Brand Ultra Electronics
	Product Type Joystick
	Number of Axes 2
	Series 462
	Switch Technology Momentary
	IP Rating IP67
	Handle Type Knob
	Joystick Travel 15 °
	Terminal Type Solder
	Contact DC Voltage 5V dc
	Mechanical Life 100000h
	Standards/Approvals RoHS
	Maximum Operating Temperature 50°C
	Minimum Operating Temperature 0°C

COO (Country of Origin):: US

ZF Joystick Knob

The ZF 2 way momentary joystick knob is force operated and has precision fingertip or thumb control which converts the input force of the operator to an analogue output voltage proportional to the applied force and input voltage. It incorporates piezo-resistive technology, first patented and used in joystick technology, by Ultra MSI (U. S. Patent No. 3454920)

Note:

Supplied with a 9.4mm diameter by a 32.5mm long handle

When affixing control knobs to joysticks, use 0.035 hex key (see stock no 609-708). Loctite 222 is also recommended to lock threads on screws (see stock no 514-509)

Features and Benefits

Operating temperature ranges between 0°C and 50°C

Infinite resolution, easy and natural to operate and highly reliable (100,000 hours MTBF)

Epoxy sealed construction makes it capable of sealing to IP67

Performs without loss of precision throughout the operational life

Easy to integrate into instrument panels or for thumb operation in handgrips

Operating temperature ranges between 0°C and 50°C

Applications

Computer cursor control

Robotics

Medical field

Scanning equipment

Security cameras

Certifications

ANSI/ESD S20.20:2014

BS EN 61340-5-1:2007

IEC/EN60947
