RS PRO Jack Connector 6.35 mm PCB Female 3 Stereo
- RS Stock No.:
- 175-0155
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP772.10
(exc. VAT)
PHP864.75
(inc. VAT)
Add 20 units to get free delivery
In Stock
- 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 120 | PHP154.42 | PHP772.10 |
| 125 - 245 | PHP149.786 | PHP748.93 |
| 250 - 495 | PHP145.292 | PHP726.46 |
| 500 + | PHP140.938 | PHP704.69 |
*price indicative
- RS Stock No.:
- 175-0155
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Jack Connector | |
| Size | 6.35 mm | |
| Mount Type | PCB | |
| Sub Type | Stereo | |
| Number of Ways | 3 | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Contact Plating | Nickel | |
| Housing Material | Polybutylene Terephthalate | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Jack Connector | ||
Size 6.35 mm | ||
Mount Type PCB | ||
Sub Type Stereo | ||
Number of Ways 3 | ||
Connector Gender Female | ||
Orientation Straight | ||
Contact Plating Nickel | ||
Housing Material Polybutylene Terephthalate | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Brass | ||
- COO (Country of Origin):
- GB

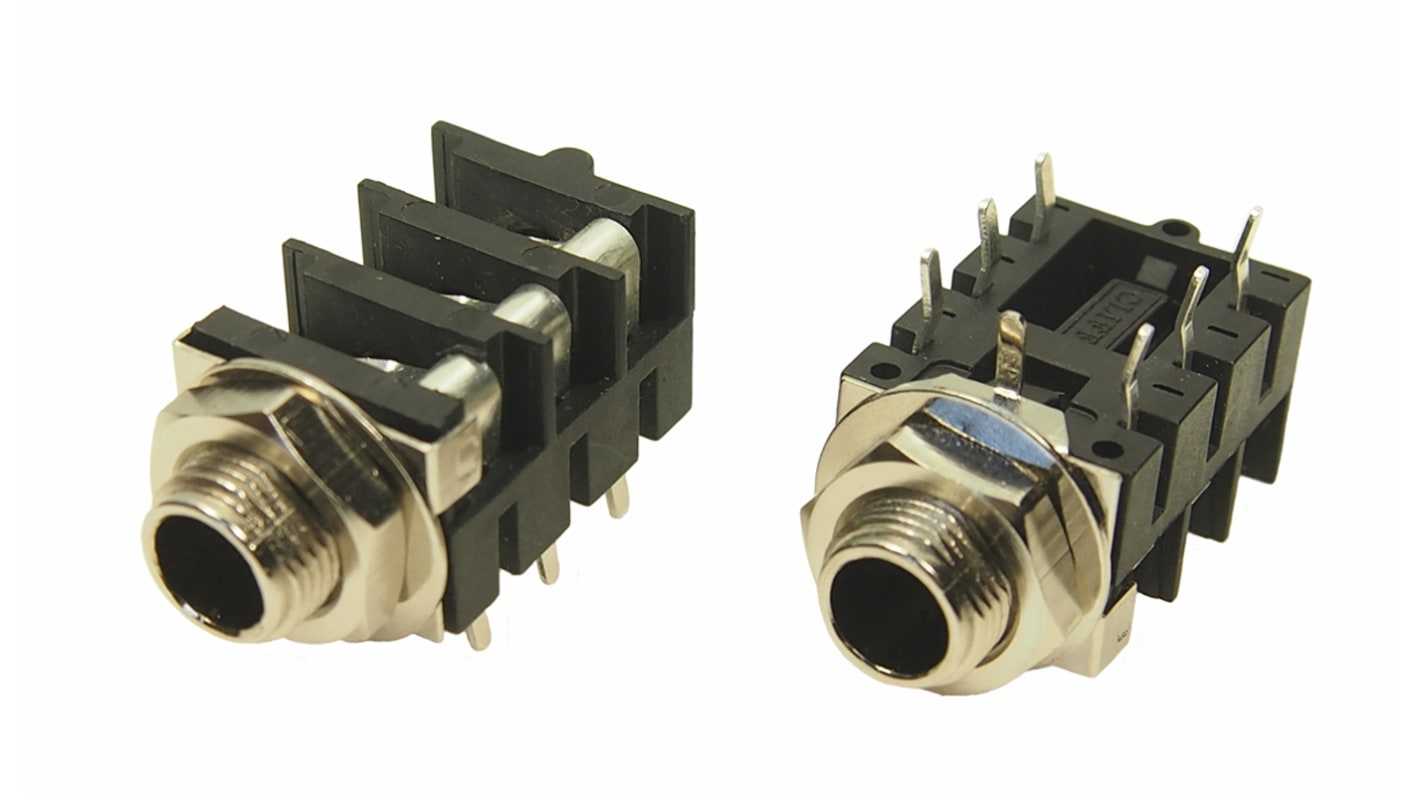

The RS Pro 6.35mm Stereo jack socket has a metal nose and removable front earth washer. The body material is PBT UL V0 with an aluminium nose, and the contact material is brass / nickel plated. It has kinked PC legs for easy board assembly and is supplied with a washer and nut separate.
Gender Female
Size 6.35 mm
Mounting Type PCB Mount
Type Stereo
