Vishay, 38 kHz IR Receiver ±45°, 45 m Range -0.3 V 6V, Surface 6.95 mm Mold 6 mm 3-Pin 5.6mm

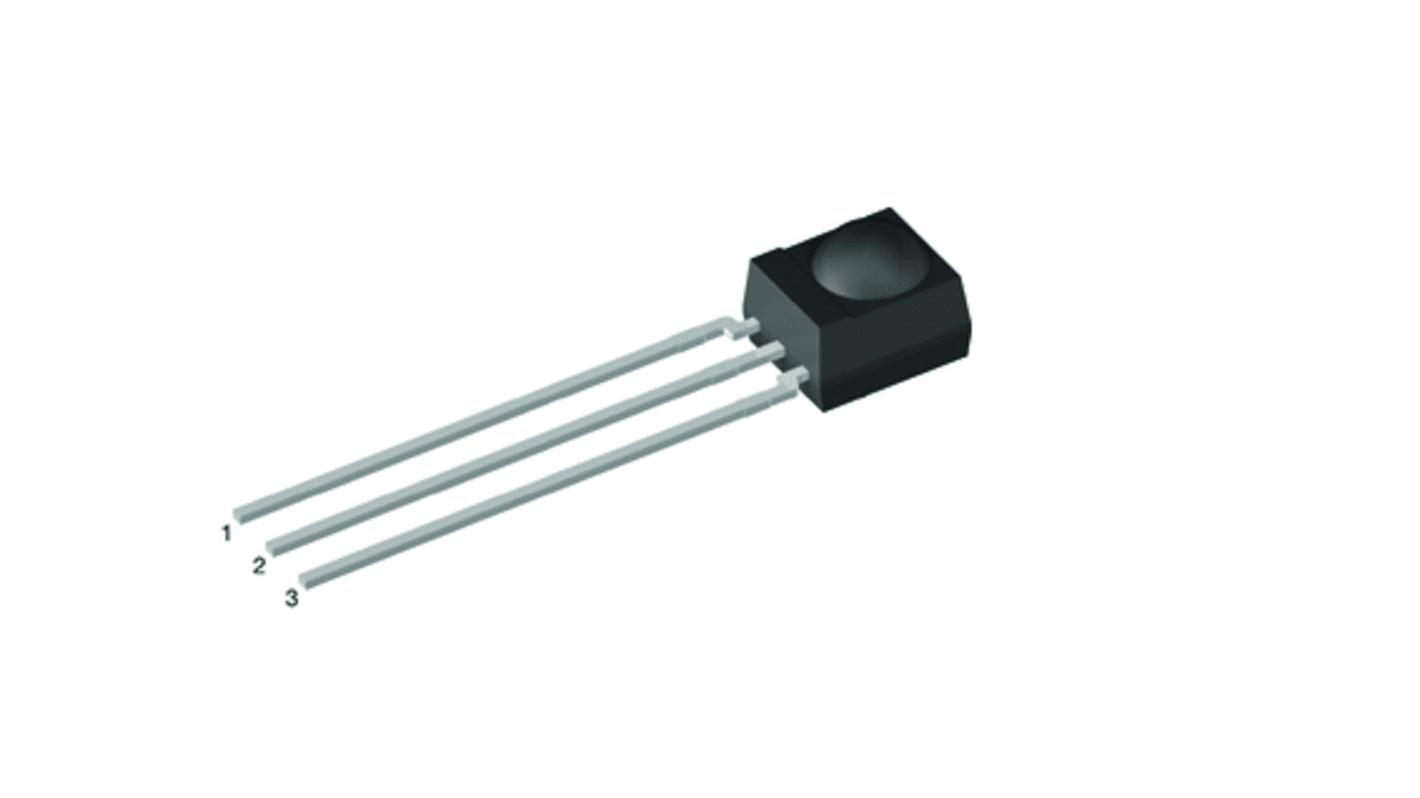

This image is representative of the product range

View all IR Receivers
Bulk discount available
View bulk pricing options

Subtotal 10 units (supplied in a tube)*

PHP503.54

(exc. VAT)

PHP563.96

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1,265 unit(s), ready to ship from another location

Units
Per Unit
10 - 20PHP50.354
25 - 45PHP49.316
50 - 95PHP48.384
100 +PHP36.648

*price indicative

Packaging Options:
RS Stock No.:
257-6898P
Mfr. Part No.:
TSOP34338
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Carrier Frequency

38kHz

Product Type

IR Receiver

Maximum Transmission Distance

45m

Angle of Half Transmission Distance

±45°

Output Current

5mA

Number of Pins

3

Mount Type

Surface

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

85°C

Package Type

Mold

Standards/Approvals

GADSL, REACH, RoHS, Halogen Free, IEC 62474

Width

5.6mm

Length

6mm

Maximum Supply Voltage

6V

Height

6.95mm

Minimum Supply Voltage

-0.3V

Automotive Standard

No

Supply Current

3mA

The Vishay IR Sensor IC is miniaturized receivers for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding.

Very low supply current

Photo detector and preamplifier in one package

Internal filter for PCM frequency

Improved shielding against EMI

Supply voltage: 2.5 V to 5.5 V

Improved immunity against ambient light
