Vishay, 38 kHz IR Receiver ±45°, 20 m Range -0.3 V 6V, Surface 6.95 mm Minicast 5 mm 3-Pin 4.8mm
- RS Stock No.:
- 257-6892P
- Mfr. Part No.:
- TSMP58138
- Manufacturer:
- Vishay

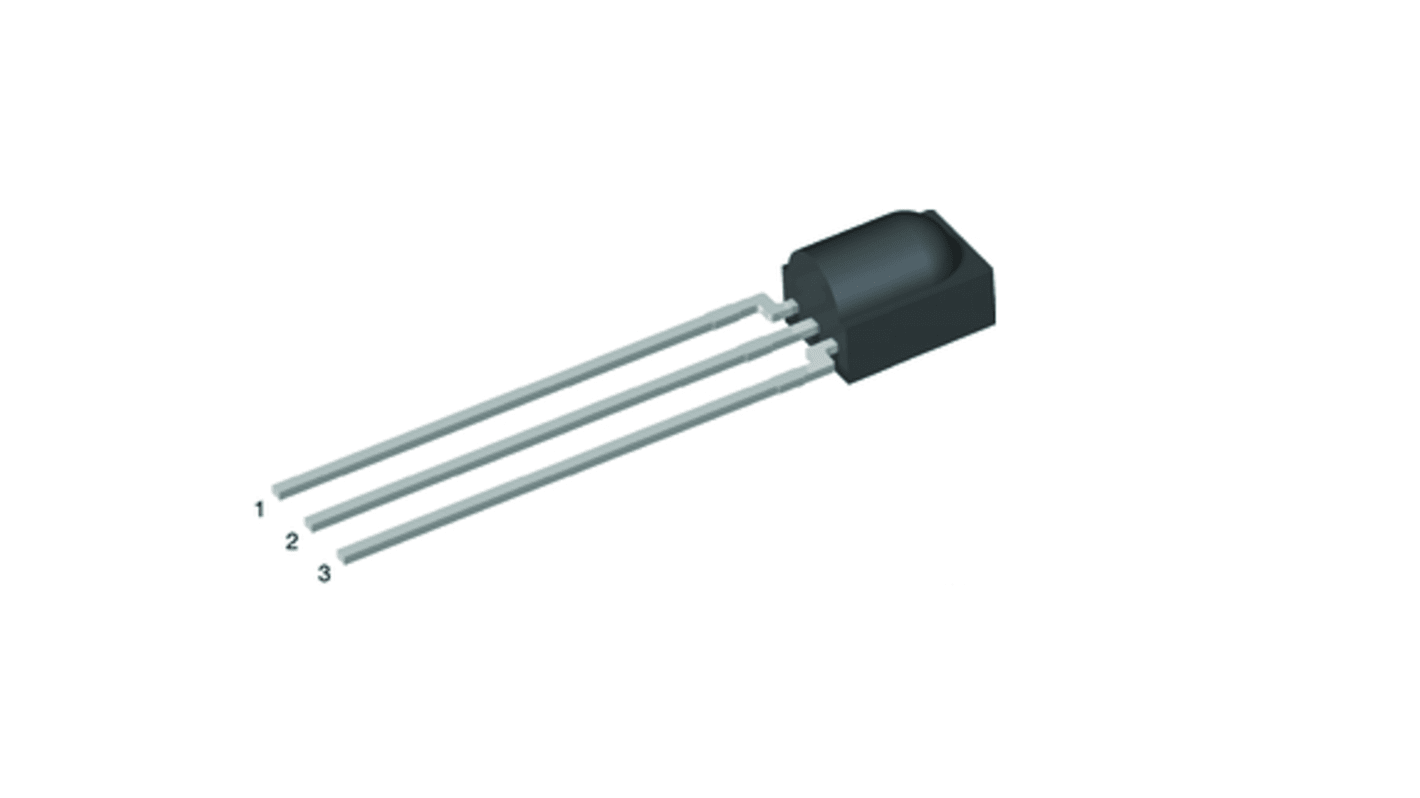

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal 50 units (supplied in a bag)*
PHP1,912.50
(exc. VAT)
PHP2,142.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 1,489 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 50 - 99 | PHP38.25 |
| 100 - 249 | PHP37.10 |
| 250 - 499 | PHP35.99 |
| 500 + | PHP34.90 |
*price indicative
- RS Stock No.:
- 257-6892P
- Mfr. Part No.:
- TSMP58138
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Carrier Frequency | 38kHz | |
| Product Type | IR Receiver | |
| Maximum Transmission Distance | 20m | |
| Angle of Half Transmission Distance | ±45° | |
| Output Current | 5mA | |
| Number of Pins | 3 | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Package Type | Minicast | |
| Width | 4.8mm | |
| Standards/Approvals | RoHS, Halogen Free, IEC 62474, REACH, GADSL | |
| Height | 6.95mm | |
| Maximum Supply Voltage | 6V | |
| Length | 5mm | |
| Minimum Supply Voltage | -0.3V | |
| Automotive Standard | No | |
| Supply Current | 5mA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Carrier Frequency 38kHz | ||
Product Type IR Receiver | ||
Maximum Transmission Distance 20m | ||
Angle of Half Transmission Distance ±45° | ||
Output Current 5mA | ||
Number of Pins 3 | ||
Mount Type Surface | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Package Type Minicast | ||
Width 4.8mm | ||
Standards/Approvals RoHS, Halogen Free, IEC 62474, REACH, GADSL | ||
Height 6.95mm | ||
Maximum Supply Voltage 6V | ||
Length 5mm | ||
Minimum Supply Voltage -0.3V | ||
Automotive Standard No | ||
Supply Current 5mA | ||
The Vishay IR sensor module is a miniaturized sensor for receiving the modulated signal of infrared remote control systems. A PIN diode and preamplifier are assembled on a lead frame, the epoxy package is designed as an IR filter. The modulated output signal, carrier out, can be used for repeater applications and code learning applications.
AGC to suppress ambient noise
High sensitivity, long receiving range
Supply voltage: 2.5 V to 5.5 V
AC coupled response from 30 kHz to 60 kHz, all data formats
