Vishay TSSP98038, 38 kHz IR Receiver, 8 m Range 2 V 3.6V, Lead 6.95 mm 3-Pin 5mm
- RS Stock No.:
- 244-4830P
- Mfr. Part No.:
- TSSP98038
- Manufacturer:
- Vishay

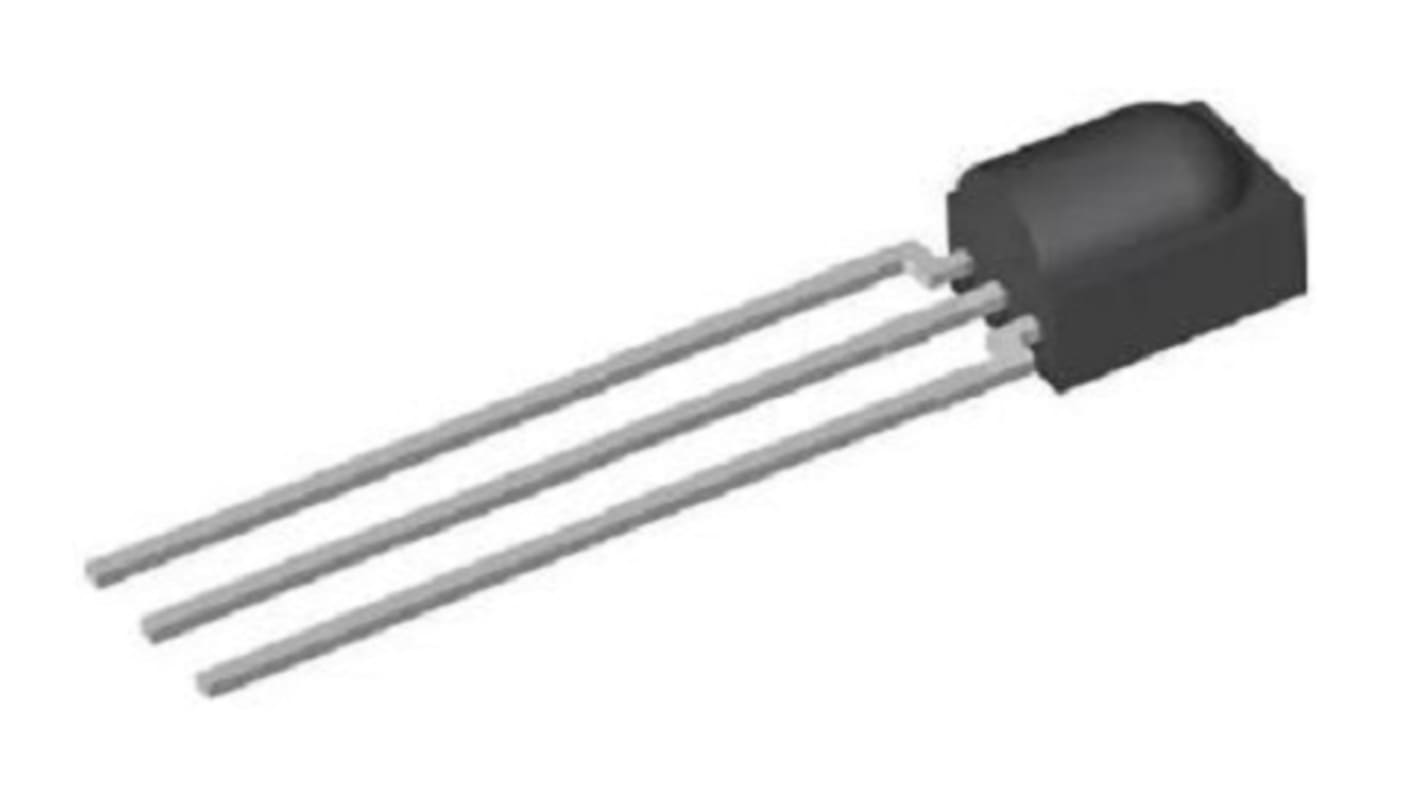

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal 50 units (supplied in a bag)*
PHP3,307.50
(exc. VAT)
PHP3,704.50
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Last RS stock
- Final 1,426 unit(s), ready to ship from another location
Units | Per Unit |
|---|---|
| 50 - 99 | PHP66.15 |
| 100 - 249 | PHP59.54 |
| 250 - 499 | PHP53.58 |
| 500 + | PHP48.21 |
*price indicative
- RS Stock No.:
- 244-4830P
- Mfr. Part No.:
- TSSP98038
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Carrier Frequency | 38kHz | |
| Product Type | IR Receiver | |
| Maximum Transmission Distance | 8m | |
| Output Current | 5mA | |
| Number of Pins | 3 | |
| Mount Type | Lead | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 6.95mm | |
| Maximum Supply Voltage | 3.6V | |
| Standards/Approvals | No | |
| Width | 5mm | |
| Minimum Supply Voltage | 2V | |
| Automotive Standard | No | |
| Series | TSSP980 | |
| Supply Current | 5mA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Carrier Frequency 38kHz | ||
Product Type IR Receiver | ||
Maximum Transmission Distance 8m | ||
Output Current 5mA | ||
Number of Pins 3 | ||
Mount Type Lead | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Height 6.95mm | ||
Maximum Supply Voltage 3.6V | ||
Standards/Approvals No | ||
Width 5mm | ||
Minimum Supply Voltage 2V | ||
Automotive Standard No | ||
Series TSSP980 | ||
Supply Current 5mA | ||
The Vishay IR Receiver Module is a compact infrared detector module for presence, proximity or light curtain applications. It provides an active low output in response to infrared bursts at 940 nm. The frequency of the burst should correspond to the carrier frequency.
Presence sensor up to 2 m distance
Light barrier up to 12 m distance
Fast proximity up to 2 m range at 5 ms response time
