Vishay TSOP94638, 38 kHz IR Receiver, 35 m Range 2.5 V 5.5V, Lead 6.96 mm 3-Pin 6mm

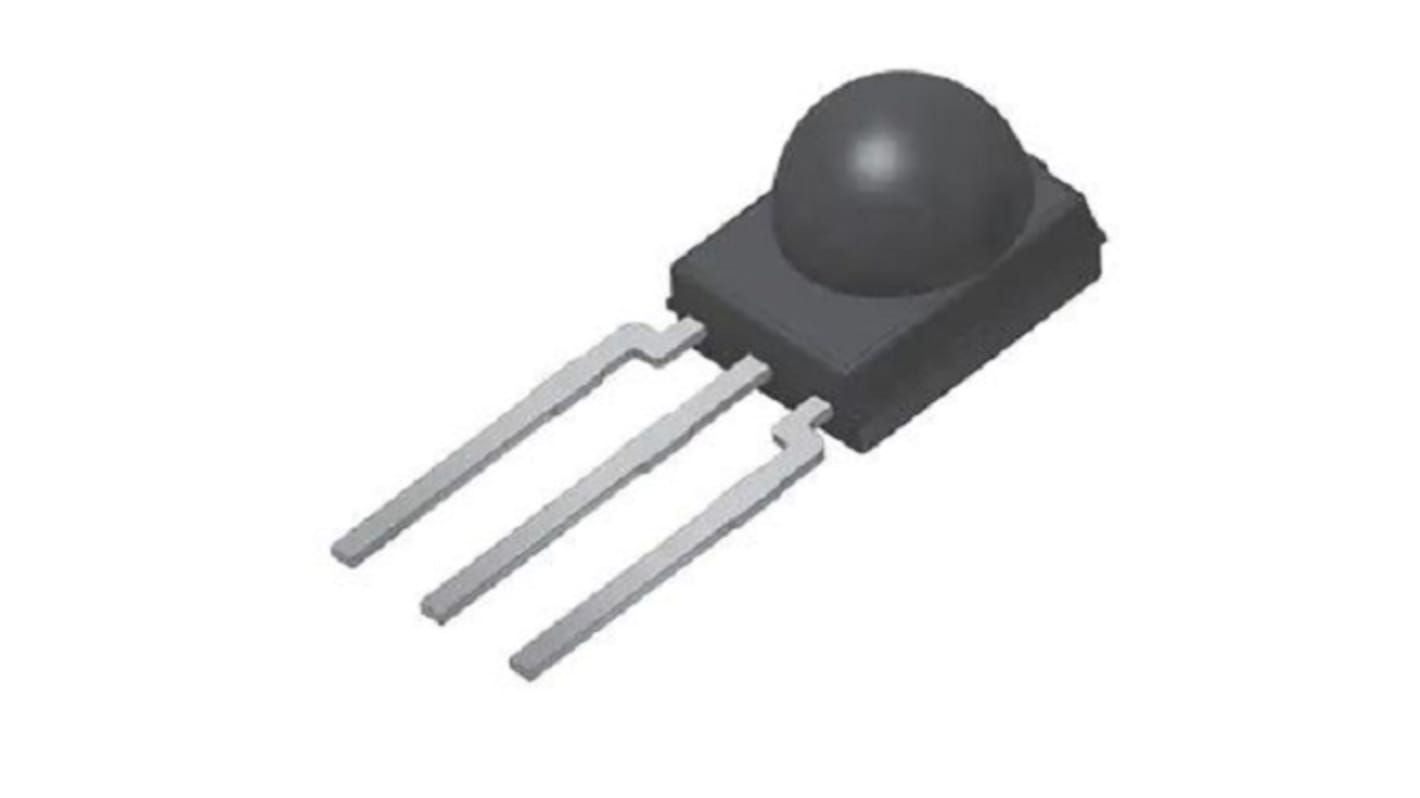

This image is representative of the product range

View all IR Receivers
Bulk discount available
View bulk pricing options

Subtotal 10 units (supplied in a bag)*

PHP547.50

(exc. VAT)

PHP613.20

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 51 unit(s), ready to ship from another location

Units
Per Unit
10 - 24PHP54.75
25 - 49PHP53.11
50 - 99PHP51.52
100 +PHP49.97

*price indicative

Packaging Options:
RS Stock No.:
244-4817P
Mfr. Part No.:
TSOP94638
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

IR Receiver

Carrier Frequency

38kHz

Maximum Transmission Distance

35m

Output Current

5mA

Number of Pins

3

Mount Type

Lead

Minimum Operating Temperature

-25°C

Range Automatic Gain Control AGC

AGC6

Maximum Operating Temperature

85°C

Maximum Supply Voltage

5.5V

Width

6mm

Standards/Approvals

No

Height

6.96mm

Minimum Supply Voltage

2.5V

Automotive Standard

No

Series

TSOP33

Supply Current

3mA

The Vishay miniaturized IR receiver modules for infrared remote control systems. These series provide improvements in sensitivity to remote control signals in dark ambient as well as in sensitivity in the presence of optical disturbances e.g. from CFLs. The devices contain a PIN diode and a preamplifier assembled on a lead frame. The epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding.

Very low supply current

Photo detector and preamplifier in one package

Internal filter for PCM frequency

Insensitive to supply voltage ripple and noise

Improved immunity against optical noise
