Vishay TSSP96038TR, 38 kHz IR Receiver ±50°, 8 m Range 2 V 3.6V, Surface 5.3 mm Panhead 7.5 mm 4-Pin 4mm
- RS Stock No.:
- 230-8373P
- Mfr. Part No.:
- TSSP96038TR
- Manufacturer:
- Vishay

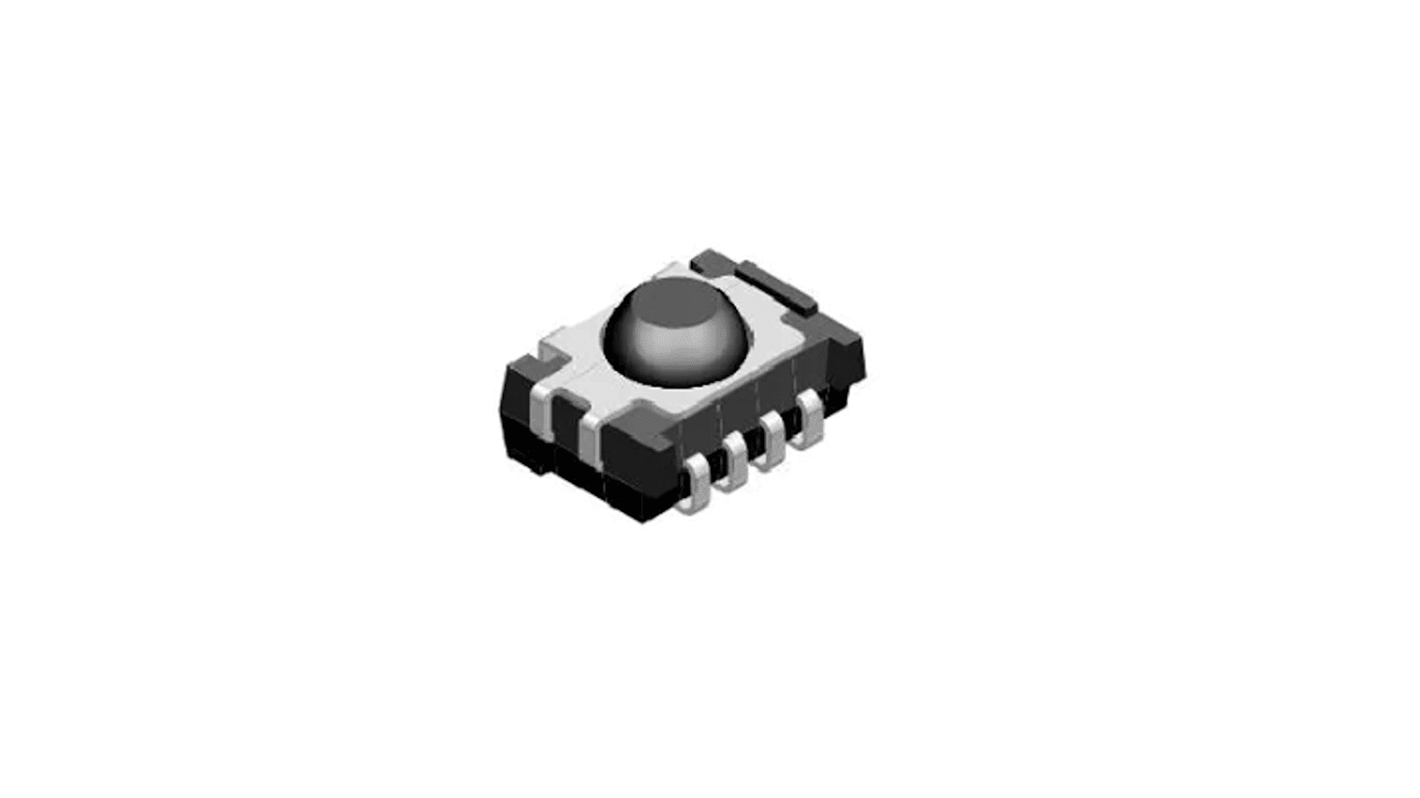

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 230-8373P
- Mfr. Part No.:
- TSSP96038TR
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Carrier Frequency | 38kHz | |
| Product Type | IR Receiver | |
| Maximum Transmission Distance | 8m | |
| Angle of Half Transmission Distance | ±50° | |
| Orientation | Top View | |
| Output Current | 0.5mA | |
| Number of Pins | 4 | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -25°C | |
| Package Type | Panhead | |
| Maximum Operating Temperature | 85°C | |
| Height | 5.3mm | |
| Length | 7.5mm | |
| Maximum Supply Voltage | 3.6V | |
| Width | 4mm | |
| Standards/Approvals | JEDEC | |
| Minimum Supply Voltage | 2V | |
| Series | TSSP960 | |
| Supply Current | 5mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Carrier Frequency 38kHz | ||
Product Type IR Receiver | ||
Maximum Transmission Distance 8m | ||
Angle of Half Transmission Distance ±50° | ||
Orientation Top View | ||
Output Current 0.5mA | ||
Number of Pins 4 | ||
Mount Type Surface | ||
Minimum Operating Temperature -25°C | ||
Package Type Panhead | ||
Maximum Operating Temperature 85°C | ||
Height 5.3mm | ||
Length 7.5mm | ||
Maximum Supply Voltage 3.6V | ||
Width 4mm | ||
Standards/Approvals JEDEC | ||
Minimum Supply Voltage 2V | ||
Series TSSP960 | ||
Supply Current 5mA | ||
Automotive Standard No | ||
The Vishay Compact infrared detector modules use for presence, proximity, or light curtain applications. They provide an Active low output in response to infrared bursts at 940 nm. The frequency of the burst should correspond to the carrier frequency shown in the parts table. Visible light is suppressed by IR filter. It is compliant to RoHS directive and lead free.
It provides shielding against EMI
It has up to 2 m for presence and proximity sensing
