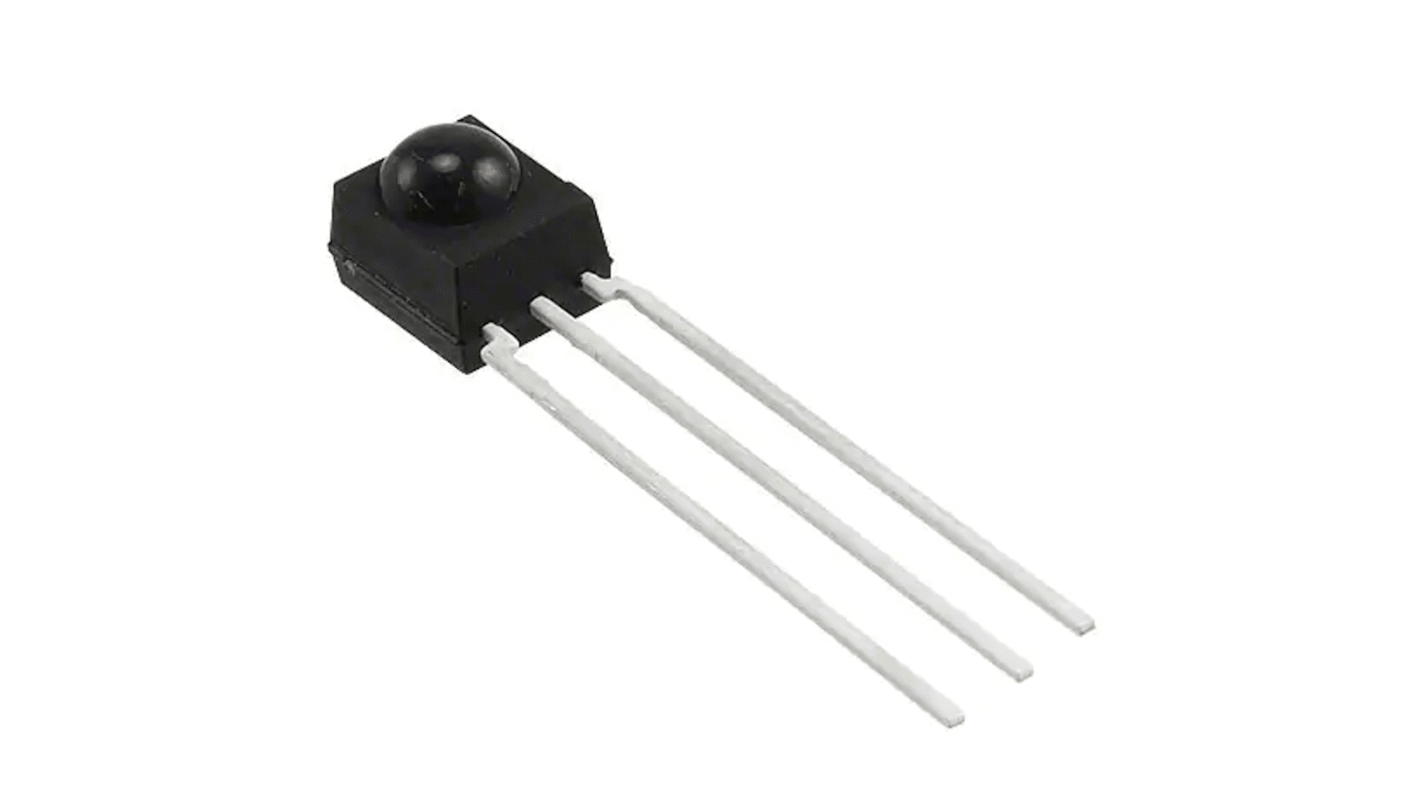

Vishay, 38 kHz IR Receiver 45 °, 45 m Range 2.5 V 5.5 V, Through Hole 6.95 mm Mold 6 mm 3-Pin 5.6 mm
- RS Stock No.:
- 180-8093
- Mfr. Part No.:
- TSOP34438
- Manufacturer:
- Vishay
Bulk discount available
Subtotal (1 pack of 10 units)*
PHP351.45
(exc. VAT)
PHP393.62
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Last RS stock
- Final 920 unit(s), ready to ship from another location
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 10 | PHP35.145 | PHP351.45 |
| 20 - 40 | PHP34.09 | PHP340.90 |
| 50 + | PHP33.067 | PHP330.67 |
*price indicative
- RS Stock No.:
- 180-8093
- Mfr. Part No.:
- TSOP34438
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | IR Receiver | |
| Carrier Frequency | 38kHz | |
| Maximum Transmission Distance | 45m | |
| Angle of Half Transmission Distance | 45 ° | |
| Orientation | Top View | |
| Packaging | 2160 pieces in tubes | |
| Output Current | 5mA | |
| Number of Pins | 3 | |
| Mount Type | Through Hole | |
| Minimum Operating Temperature | -25°C | |
| Package Type | Mold | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | DIN | |
| Length | 6mm | |
| Maximum Supply Voltage | 5.5V | |
| Width | 5.6 mm | |
| Height | 6.95mm | |
| Minimum Supply Voltage | 2.5V | |
| Supply Current | 0.45mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type IR Receiver | ||
Carrier Frequency 38kHz | ||
Maximum Transmission Distance 45m | ||
Angle of Half Transmission Distance 45 ° | ||
Orientation Top View | ||
Packaging 2160 pieces in tubes | ||
Output Current 5mA | ||
Number of Pins 3 | ||
Mount Type Through Hole | ||
Minimum Operating Temperature -25°C | ||
Package Type Mold | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals DIN | ||
Length 6mm | ||
Maximum Supply Voltage 5.5V | ||
Width 5.6 mm | ||
Height 6.95mm | ||
Minimum Supply Voltage 2.5V | ||
Supply Current 0.45mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
The Vishay TSOP341 series are miniaturized receiver module for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding and the device are optimized to suppress almost all spurious pulses from energy saving lamps like CFLs.
Very low supply current
Photo detector and preamplifier in one package
Internal filter for PCM frequency
