Vishay TSOP34856, 56 kHz IR Receiver 45 °, 45 m Range 2.5 V 5.5V, Through Hole 6.95 mm Mold 5.6 mm 3-Pin 6mm
- RS Stock No.:
- 180-7451
- Mfr. Part No.:
- TSOP34856
- Manufacturer:
- Vishay

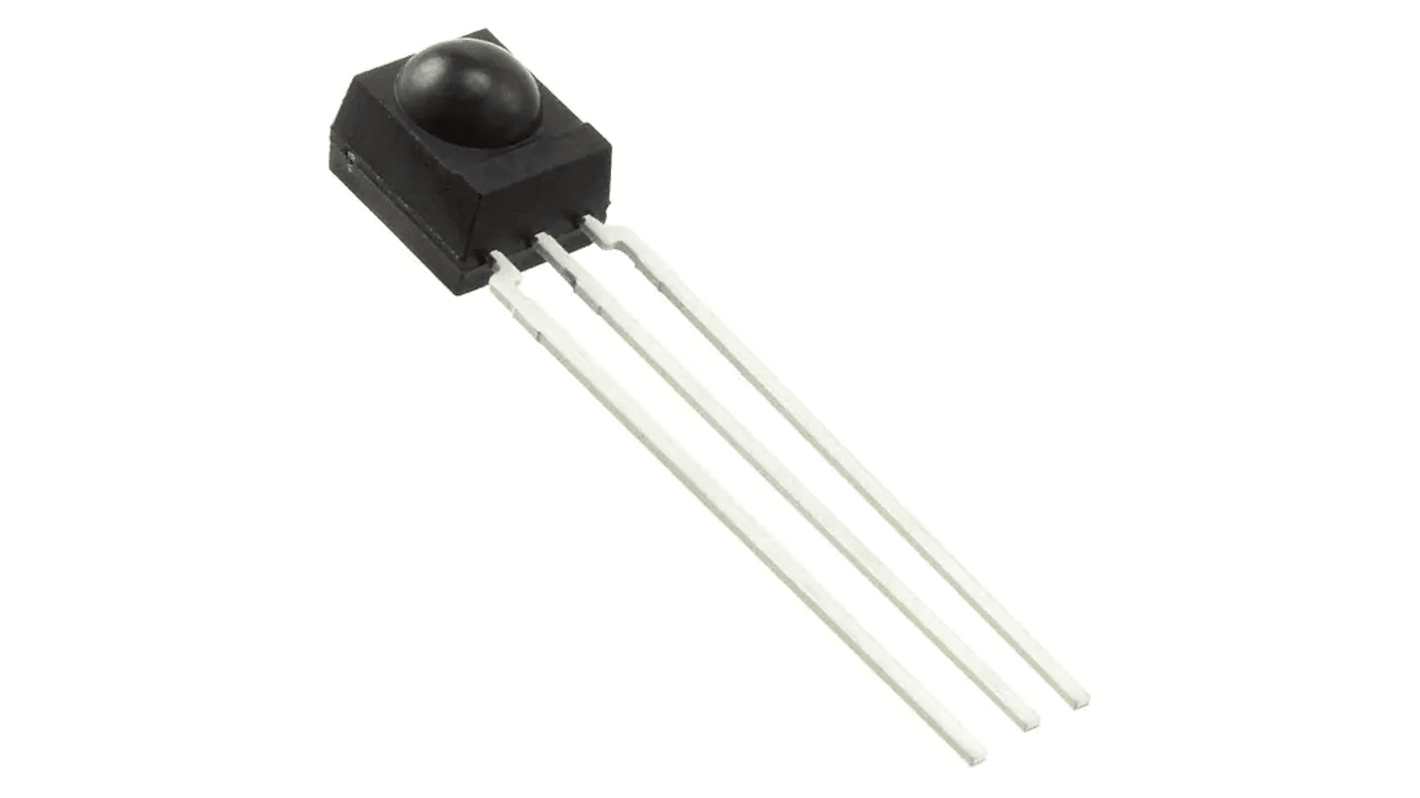

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 90 units)*
PHP3,403.80
(exc. VAT)
PHP3,812.40
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 2,160 unit(s) shipping from June 26, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 90 - 90 | PHP37.82 | PHP3,403.80 |
| 180 - 360 | PHP36.685 | PHP3,301.65 |
| 450 - 810 | PHP35.585 | PHP3,202.65 |
| 900 - 1710 | PHP34.517 | PHP3,106.53 |
| 1800 + | PHP33.481 | PHP3,013.29 |
*price indicative
- RS Stock No.:
- 180-7451
- Mfr. Part No.:
- TSOP34856
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Carrier Frequency | 56kHz | |
| Product Type | IR Receiver | |
| Maximum Transmission Distance | 45m | |
| Angle of Half Transmission Distance | 45 ° | |
| Packaging | 2160 pieces in tubes | |
| Orientation | Top View | |
| Output Current | 5mA | |
| Number of Pins | 3 | |
| Mount Type | Through Hole | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Package Type | Mold | |
| Length | 5.6mm | |
| Height | 6.95mm | |
| Standards/Approvals | DIN | |
| Width | 6mm | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.5V | |
| Automotive Standard | No | |
| Supply Current | 0.45mA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Carrier Frequency 56kHz | ||
Product Type IR Receiver | ||
Maximum Transmission Distance 45m | ||
Angle of Half Transmission Distance 45 ° | ||
Packaging 2160 pieces in tubes | ||
Orientation Top View | ||
Output Current 5mA | ||
Number of Pins 3 | ||
Mount Type Through Hole | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Package Type Mold | ||
Length 5.6mm | ||
Height 6.95mm | ||
Standards/Approvals DIN | ||
Width 6mm | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.5V | ||
Automotive Standard No | ||
Supply Current 0.45mA | ||
- COO (Country of Origin):
- PH
The Vishay TSOP341 series are miniaturized receiver module for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding and the device are optimized to suppress almost all spurious pulses from energy saving lamps like CFLs.
Very low supply current
Photo detector and preamplifier in one package
Internal filter for PCM frequency
