Phoenix Contact 16-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A
- RS Stock No.:
- 607-7898
- Mfr. Part No.:
- 2962560
- Manufacturer:
- Phoenix Contact
Temporarily out of stock - back order for despatch 04/06/2024, delivery within 10 working days from desptach date
Added
Price Each
PHP4,930.70
(exc. VAT)
PHP5,522.38
(inc. VAT)
| Units | Per Unit |
| 1 + | PHP4,930.70 |
- RS Stock No.:
- 607-7898
- Mfr. Part No.:
- 2962560
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

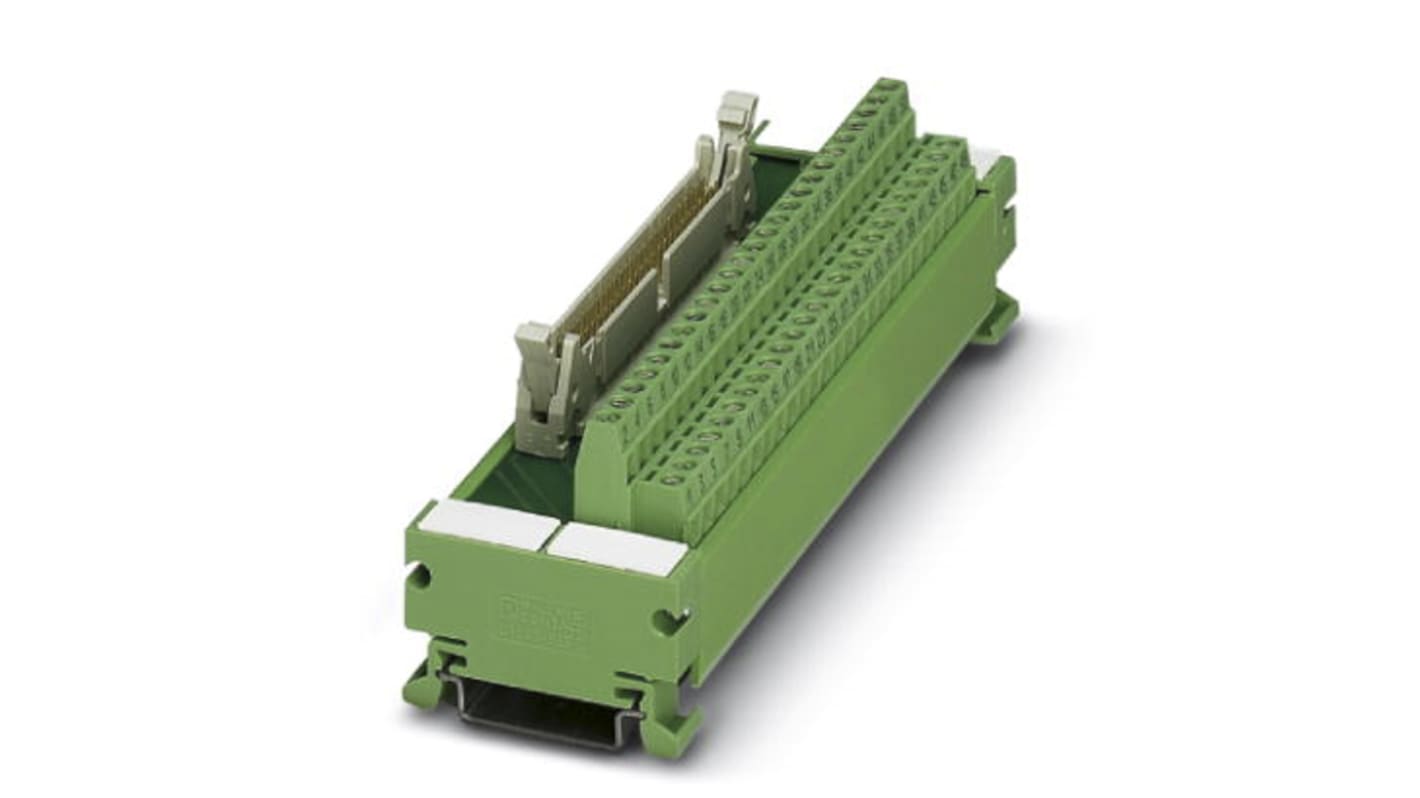

UM 45-FLK 10...64 Wiring Module
Connects ribbon cable socket boards with screw or tension spring terminals (ZFKDS)
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
Standards
IEC 60664, DIN VDE 0110
Approvals
UL, CUL
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Wire Size | 26 → 16 AWG |
| Number of Contacts | 16 |
| Connector Type | Flat Ribbon Cable |
| Mounting Type | DIN Rail Mount |
| Test Proof Voltage | 500V ac |
| Voltage Rating | 25 V ac, 60 V dc |
| Current Rating | 1A |
| Cable CSA | 0.14 → 1.5mm² |
| Dimensions | 64 x 50 x 45mm |
| Depth | 45mm |
| Length | 64mm |
| Minimum Operating Temperature | -20°C |
| Width | 50mm |
| Maximum Operating Temperature | +50°C |
