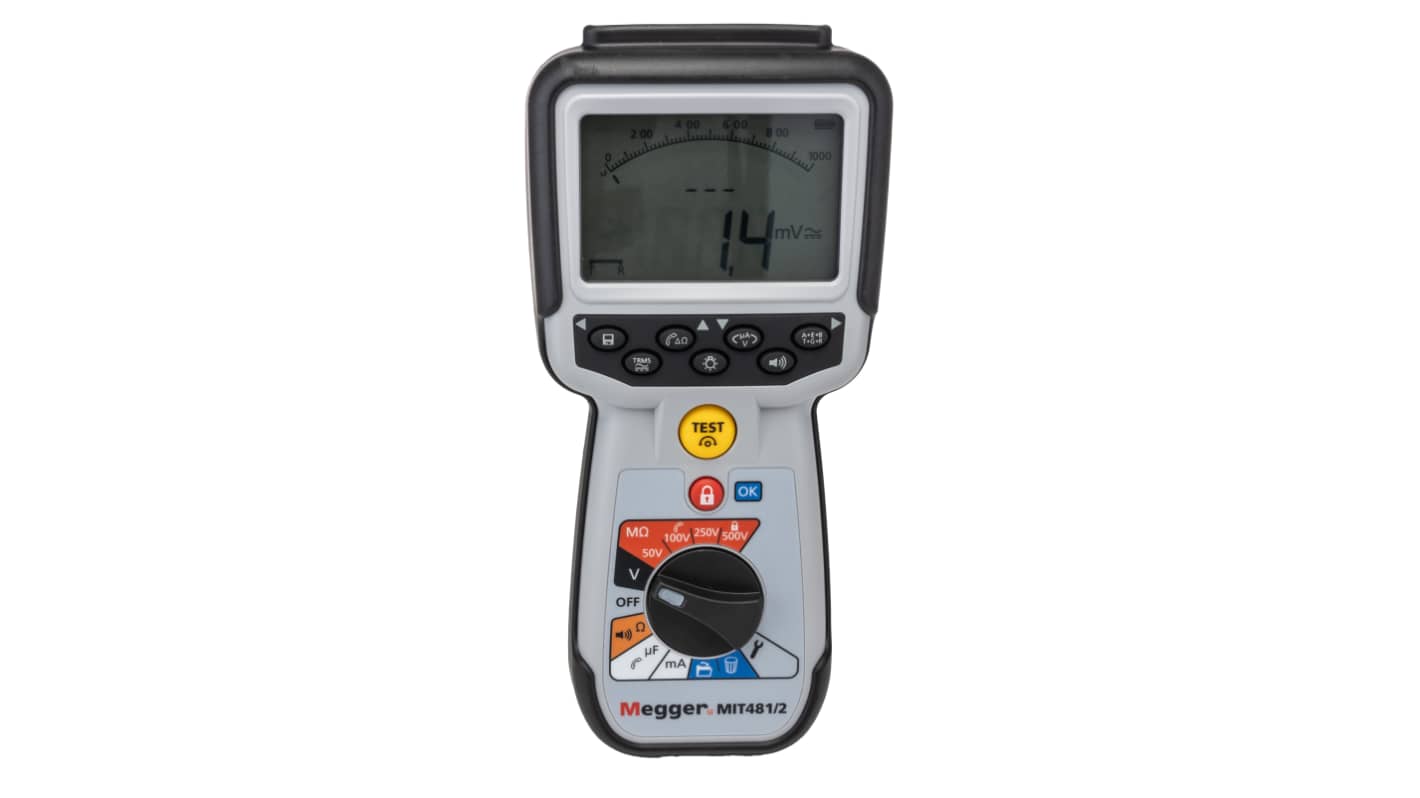

Megger MIT481 Insulation Tester, 50V Min, 500V Max, 200GΩ Max, CAT IV

RS Stock No.:: 122-6796
Distrelec Article No.:: 300-77-062
Mfr. Part No.:: 1004-741
Manufacturer:: Megger

Megger MIT481 Insulation Tester, 50V Min, 500V Max, 200GΩ Max, CAT IV

Subtotal (1 unit)*

PHP63,482.42

(exc. VAT)

PHP71,100.31

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

3 unit(s) ready to ship from another location
Plus 12 unit(s) shipping from January 29, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP63,482.42

*price indicative

RS Stock No.:: 122-6796
Distrelec Article No.:: 300-77-062
Mfr. Part No.:: 1004-741
Manufacturer:: Megger

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Megger
	Model Number p	MIT481
	Tester Type	Insulation Tester
	Minimum Test Voltage	50V
	Maximum Test Voltage	500V
	Maximum Insulation Resistance Measurement	200GΩ
	Display Type	Digital
	Test Current	20 mA @ 10.0 Ω → 99.9 Ω, 205 mA @ 0.01 Ω → 9.99 Ω
	Battery Life	2200 5-Second Tests
	Power Source	Battery
	Battery Type	Alkaline, NiMH
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+55°C
	Safety Category	CAT IV 600V
	Safety Category Level	CAT IV
	Safety Category Voltage	600V
	Length	92mm
	Width	50mm
	Weight	590 g, 775 (With Boot) g
	Dimensions	92 x 50 x 220mm
	Height	220mm

	Select all
	Brand Megger
	Model Number p MIT481
	Tester Type Insulation Tester
	Minimum Test Voltage 50V
	Maximum Test Voltage 500V
	Maximum Insulation Resistance Measurement 200GΩ
	Display Type Digital
	Test Current 20 mA @ 10.0 Ω → 99.9 Ω, 205 mA @ 0.01 Ω → 9.99 Ω
	Battery Life 2200 5-Second Tests
	Power Source Battery
	Battery Type Alkaline, NiMH
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +55°C
	Safety Category CAT IV 600V
	Safety Category Level CAT IV
	Safety Category Voltage 600V
	Length 92mm
	Width 50mm
	Weight 590 g, 775 (With Boot) g
	Dimensions 92 x 50 x 220mm
	Height 220mm

Datasheet

COO (Country of Origin):: GB

Megger Insulation Tester, 500V Gated Operation, Battery-Powered - MIT480/2 Series - 1004-741

Want to check the resistance of your electrical insulation? This handheld tester from Megger is a whizz at the task. After connecting the leads to your instrument's terminals, choose a voltage between 50 and 500V, then push-test to get a simple and straightforward measurement. You can also use the versatile unit to measure AC or DC voltages, frequency and capacitance. A broad operating temperature range of -10°C to +55°C makes it just the thing for testing in harsh work areas.

Features & Benefits

• Hard carry case included for safe storage and easy transportation
• IP54 rating shows it's partially dust-protected and waterproof against splashes from any direction
• Bluetooth-compatible, so you can download and store measurements for future reference
• 6 x AA batteries deliver 3000 insulation tests before replacements are needed
• Strong ABS housing shrugs off damage if dropped

Applications

• Telecommunications equipment
• Factory floors
• Office repairs and maintenance

How accurate is this tester?

It has a high accuracy of ±2% for insulation readings, ±2% ±2 digits for voltages, ±0.5% ±1 digits for frequencies and ±5.0% and ±2 digits for capacitance measurements. These tiny levels of variance make it the ideal choice for precision measuring tasks.
