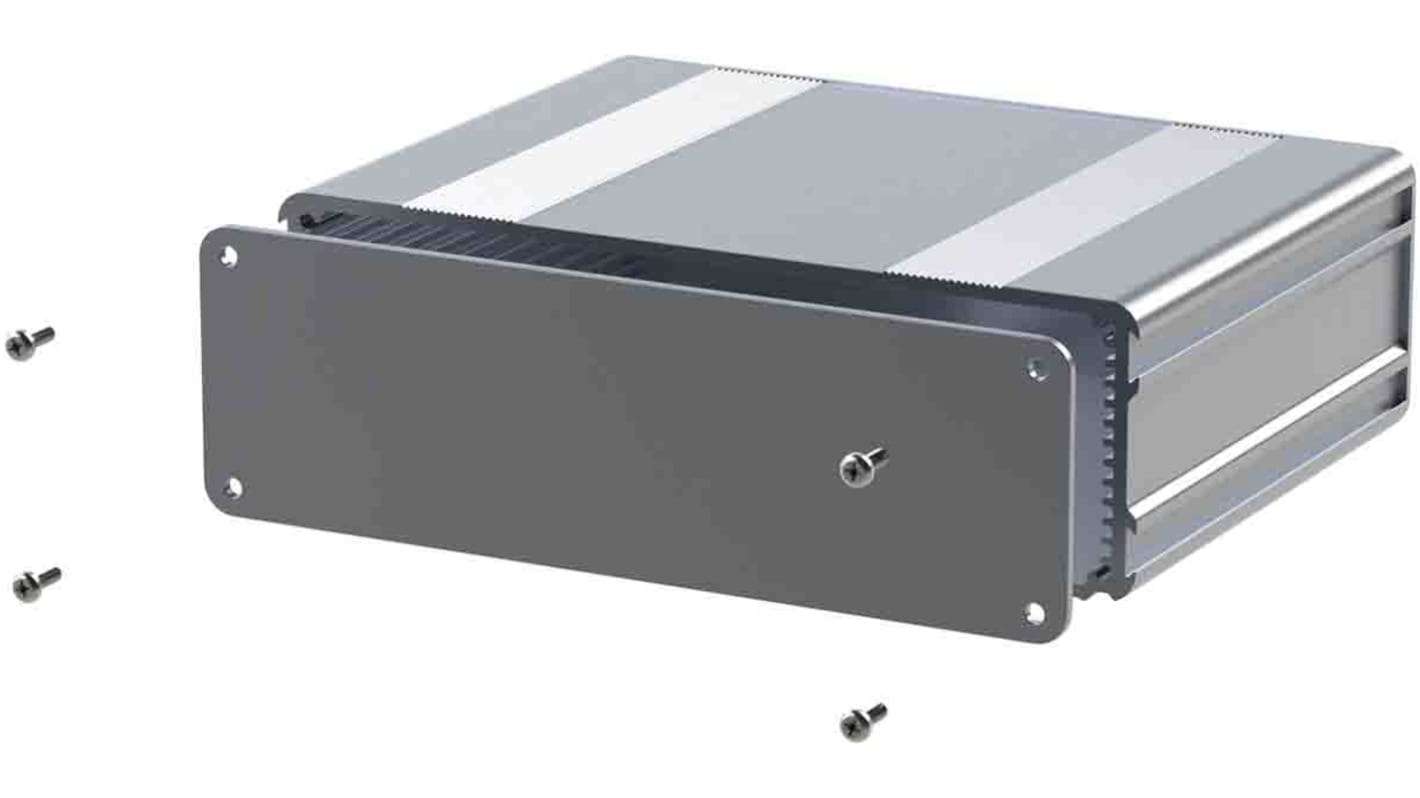

RS PRO Silver Anodised Aluminium Instrument Case, 220 x 169.8 x 53.8mm

RS Stock No.:: 195-1550
Distrelec Article No.:: 304-05-425
Manufacturer:: RS PRO

RS PRO Silver Anodised Aluminium Instrument Case, 220 x 169.8 x 53.8mm

Subtotal (1 unit)**

PHP4,467.16

(exc. VAT)

PHP5,003.22

(inc. VAT)

39 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP7,000.00 (ex VAT)

Units	Per Unit
1 +	PHP4,467.16

**price indicative

Benefits of choosing RS PRO

Quality

Performance tested products with a 3 year warranty.

Value

Quality, choice and sustainable product at competitive prices.

Choice

+90,000 products available with a return rate under 0.04%.

RS Stock No.:: 195-1550
Distrelec Article No.:: 304-05-425
Manufacturer:: RS PRO

RS PRO Datasheet

RS PRO Anodised Aluminium Enclosures With Extruded Dovetail Slots, Silver

Introducing anodised aluminium enclosures, a range of lightweight yet durable enclosures ideal for housing and protecting internal electrical components such as wiring and PCB boards. These versatile enclosures are available in a range of sizes to suit a variety of applications.

This range of high standard silver anodised aluminium enclosures are manufactured from aluminium, offering a selection of highly durable protective cases with high corrosion resistance and a wide operating temperature range. The enclosures feature a silver anodised finish to further enhance the corrosion resistance and durability whilst providing an aesthetically pleasing look and feel. The inside of the enclosures also feature integral card slots for easy PCB mounting whilst allowing other components to be installed with ease. The enclosures also feature dovetail slots down the side which accept a mounting bracket for surface mounting if required.

Features and benefits

Available in a range of sizes

Manufactured from aluminium offering a lightweight yet durable enclosure

Silver anodised finish to enhance corrosion resistance

Suitable for a range of applications

Integral card slots for easy PCB mounting

Dovetail slots down the side that accept a mounting bracket for surface mounting

Applications

Aluminium enclosures are a type of protective case ideal for housing electrical parts and components in a variety of applications. They are available in a wide range of sizes and often feature internal slots for easy PCB mounting and installation.

Electrical

Button switching elements

Telecommunication

Network Junction boxes

Mechanical and automation

What is included?

1 x Aluminium Extruded Case

2 x Aluminium End Plates

8 x No4 x 3/8 Plastite screw

Is this waterproof?

This range of aluminium enclosures are not waterproof and should only be used for indoor applications.

Benefits of anodised aluminium

Anodised aluminium is a process used with metal to enhance the corrosion resistance, whilst making it more aesthetically pleasing. Unlike metal paint that can chip, anodised aluminium is fully integrated with the underlying aluminium substrate, producing an appealing texture that is both durable and appealing.

Optional extras

This range of aluminium enclosures have a selection of brackets allowing them to be fixed to a wall or similar surface and a selection of optional accessories:

Clip-on Mounting Bracket – 1951523

Mounting Bracket Lug 80mm - 1951536

Mounting Bracket Lug 40mm - 1951535

Attribute	Value
Body Material	Anodised Aluminium
External Length	220 mm
External Width	169.8 mm
External Height	53.8 mm
External Dimensions	220 x 169.8 x 53.8mm
Colour	Silver
