RS PRO Hose Connector 6 mm ID, 100 bar
- RS Stock No.:
- 176-2038
- Distrelec Article No.:
- 304-02-754
- Manufacturer:
- RS PRO
Subtotal (1 pack of 10 units)*
PHP1,777.66
(exc. VAT)
PHP1,990.98
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 560 unit(s) ready to ship from another location
- Plus 540 unit(s) shipping from September 29, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 + | PHP177.766 | PHP1,777.66 |
*price indicative
Sponsored
- RS Stock No.:
- 176-2038
- Distrelec Article No.:
- 304-02-754
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hose Connector | |
| Hose Inside Diameter | 6mm | |
| Sub Type | Adapter | |
| Connection Gender A | Male | |
| Connection Size A | 1/4 in | |
| Connection Standard A | G | |
| Body Material | Brass | |
| Maximum Operating Pressure | 100 bar | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 300°C | |
| Standards/Approvals | No | |
| Series | RS PRO | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hose Connector | ||
Hose Inside Diameter 6mm | ||
Sub Type Adapter | ||
Connection Gender A Male | ||
Connection Size A 1/4 in | ||
Connection Standard A G | ||
Body Material Brass | ||
Maximum Operating Pressure 100 bar | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 300°C | ||
Standards/Approvals No | ||
Series RS PRO | ||
- COO (Country of Origin):
- IT

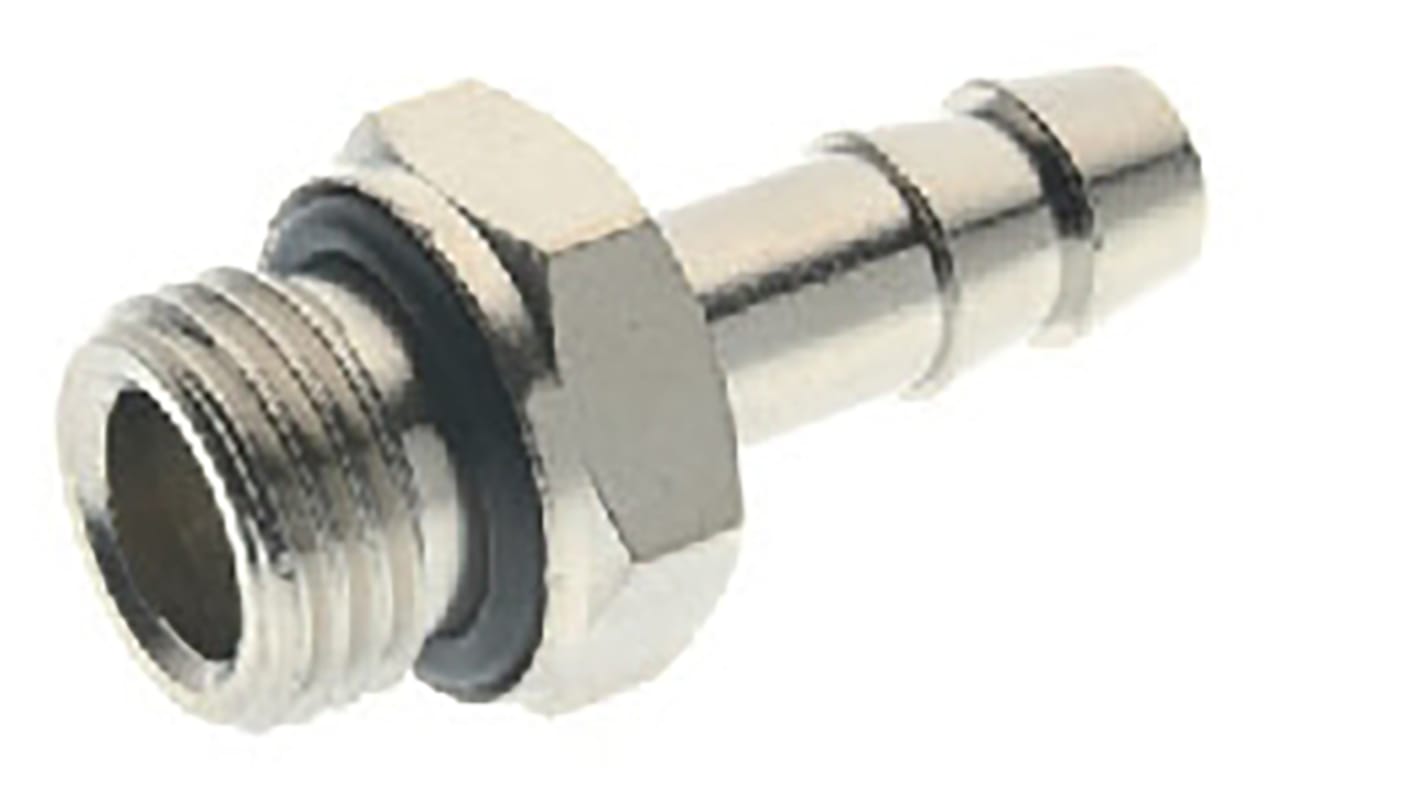

RS PRO Straight Brass Hose Connector, 1/4 in BSPP Male, 5 MPa, 50 bar
This hose connector from RS PRO is ideal for use in challenging industrial environments. It's made from nickel-plated brass, which makes it highly resistant to corrosion.
The connector can withstand pressures of up to 50 bar and temperatures up to +300˚C while offering great mechanical resistance. It can be used with all kinds of fluids, including compressed air, inert gases and steam. To use, simply push the connector's serrated tail into the hose to make a secure join. Then, screw the other end, which is a threaded connection of constant diameter, into your application of choice.
These hose connectors are supplied in packs of 10. They come with a three-year warranty for peace of mind. Components such as these are commonly used in industrial water circuits, as well as in vacuum systems and pneumatic automation.
Features and Benefits
• Brass body
• Male connector and male thread
• Straight coupling type
• Inner hose diameter of 6 mm
• Maximum working pressure of 5 MPa, 50 bar
• Thread size of 6.35 mm
• Threaded connection of 1/4 in BSPP (British Standard Parallel Pipe)
