Alpha Wire Hook-up Wire PVC Series White 2.1 mm² Hook Up Wire, 14 AWG, 41/0.25 mm, 30m, PVC Insulation, 1559 WH005
- RS Stock No.:
- 842-5933
- Distrelec Article No.:
- 301-45-242
- Mfr. Part No.:
- 1559 WH005
- Manufacturer:
- Alpha Wire

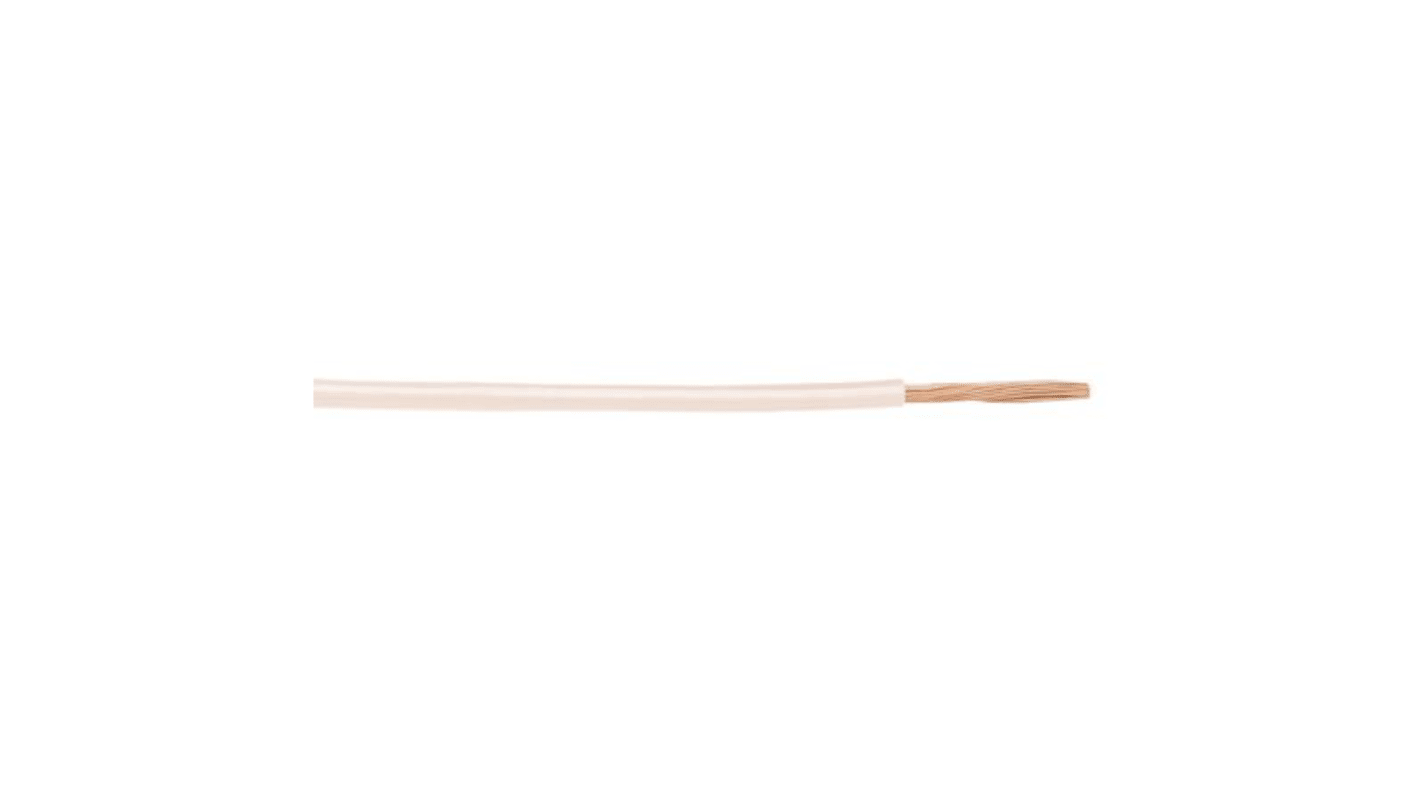

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 30 metres)*
PHP5,298.77
(exc. VAT)
PHP5,934.62
(inc. VAT)
Stock information currently inaccessible
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 49 | PHP5,298.77 | PHP176.626 |
| 50 + | PHP5,139.82 | PHP171.327 |
*price indicative
- RS Stock No.:
- 842-5933
- Distrelec Article No.:
- 301-45-242
- Mfr. Part No.:
- 1559 WH005
- Manufacturer:
- Alpha Wire
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 2.1 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 14 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 41/0.25 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Voltage Rating | 1 kV | |
| Outer Diameter | 2.34mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +80°C | |
| Conductor Material | Copper | |
| Wire Style | MIL-W-76 | |
| Standards Met | Military MIL-W-76B TYPE MW | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.4mm | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 41 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 2.1 mm² | ||
Sheath Colour White | ||
American Wire Gauge 14 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 41/0.25 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Voltage Rating 1 kV | ||
Outer Diameter 2.34mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +80°C | ||
Conductor Material Copper | ||
Wire Style MIL-W-76 | ||
Standards Met Military MIL-W-76B TYPE MW | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.4mm | ||
Size of Strands 0.25 mm | ||
Number of Strands 41 | ||
RoHS Status: Exempt
MIL-W-76B Type MW Hook-up wire
Stranded tinned copper MIL standard equipment hook-up wire with colour-coded PVC insulation
Voltage rating: 1000V
Operating temperature range -40 → 80°C
Operating temperature range -40 → 80°C
Standards
MIL-W-76B Type MW
