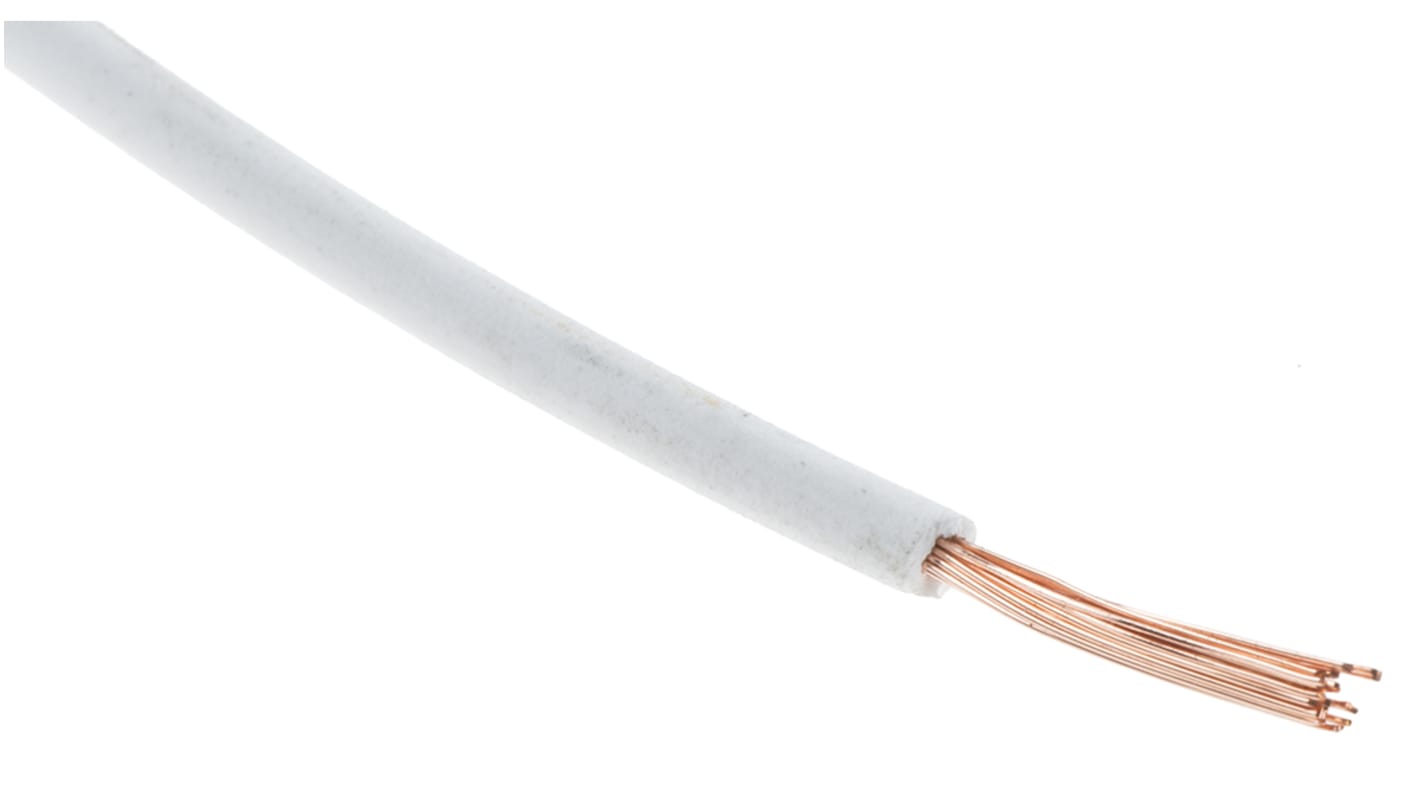

RS PRO White 0.75mm² Hook Up Wire, 22 AWG, 22/1.0 mm, 100m, Polyolefin Cross-linked EI5 Insulation
- RS Stock No.:
- 836-0789
- Distrelec Article No.:
- 304-04-987
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 metres)*
PHP2,381.76
(exc. VAT)
PHP2,667.57
(inc. VAT)
Stock information currently inaccessible
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | PHP2,381.76 | PHP23.818 |
| 5 + | PHP2,310.30 | PHP23.103 |
*price indicative
- RS Stock No.:
- 836-0789
- Distrelec Article No.:
- 304-04-987
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.75mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Round | |
| Core Strands | 22/1.0 mm | |
| Length | 100m | |
| European Harmonised Code | H05Z-K | |
| Insulation Material | Polyolefin Cross-linked EI5 | |
| Voltage Rating | 500 V | |
| Outer Diameter | 2.8mm | |
| CPR Certification | Eca | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +90°C | |
| Current Rating | 15A | |
| Conductor Material | Copper | |
| Standards Met | Euroclass Eca | |
| Fire Behaviour | Flame Retardant | |
| Series | 2491B | |
| Harmonised Code | H05Z-K | |
| Insulation Wall Thickness | 0.6mm | |
| Number of Strands | 22 | |
| Outer Sheath Material | XL HFFR | |
| Size of Strands | 1mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.75mm² | ||
Sheath Colour White | ||
American Wire Gauge 22 AWG | ||
Cable Shape Round | ||
Core Strands 22/1.0 mm | ||
Length 100m | ||
European Harmonised Code H05Z-K | ||
Insulation Material Polyolefin Cross-linked EI5 | ||
Voltage Rating 500 V | ||
Outer Diameter 2.8mm | ||
CPR Certification Eca | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +90°C | ||
Current Rating 15A | ||
Conductor Material Copper | ||
Standards Met Euroclass Eca | ||
Fire Behaviour Flame Retardant | ||
Series 2491B | ||
Harmonised Code H05Z-K | ||
Insulation Wall Thickness 0.6mm | ||
Number of Strands 22 | ||
Outer Sheath Material XL HFFR | ||
Size of Strands 1mm | ||
- COO (Country of Origin):
- TR
H05Z-K Cable
The H05Z-K cable is designed for pipes/ducts and internal wiring of appliances. As low smoke zero halogen (LSZH) cables, these products are ideal where smoke and toxic fumes may cause a threat to life or equipment; public and government buildings make use of these cables.
Class 5 flexible copper conductor
Flexible fine stranded core
Max operating temperature +90°C
Flexible fine stranded core
Max operating temperature +90°C
Standards
EN50525-3-41, Class 5 IEC 60228, EN 50363-5, IEC 60332-1, RoHS
