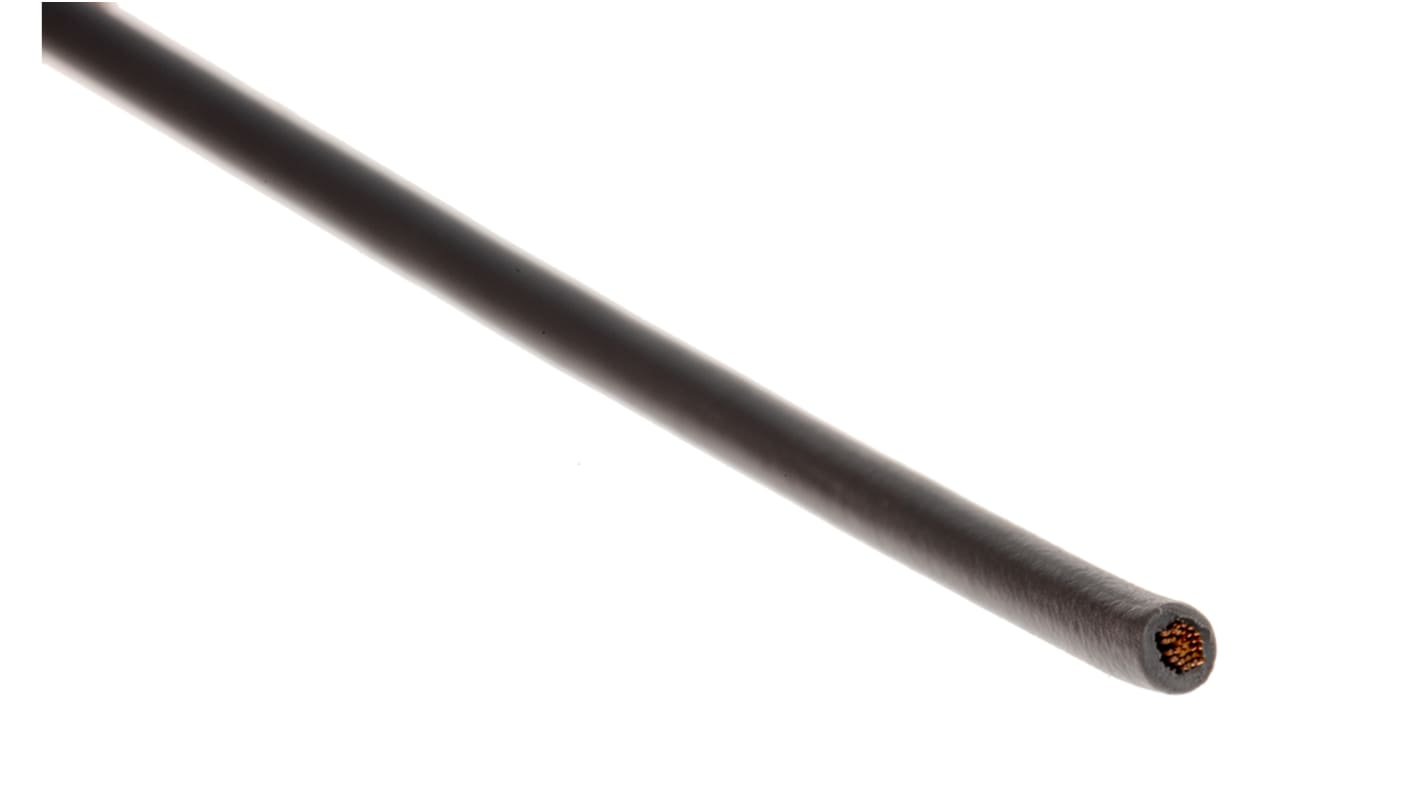

Lapp ÖLFLEX® H05V-K Series Grey 1 mm² Hook Up Wire, 32/32, 100m, PVC Insulation
- RS Stock No.:
- 724-4377
- Mfr. Part No.:
- 4510063
- Manufacturer:
- Lapp
41 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Price 1 Reel of 100 Metre(s)
PHP4,590.07
(exc. VAT)
PHP5,140.88
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 - 24 | PHP4,590.07 | PHP45.901 |
25 - 124 | PHP4,452.37 | PHP44.524 |
125 + | PHP4,318.81 | PHP43.188 |
*price indicative
- RS Stock No.:
- 724-4377
- Mfr. Part No.:
- 4510063
- Manufacturer:
- Lapp
Technical data sheets
Legislation and Compliance
Product Details
Single Core Cable - H05V-K
A single core, fine flexible wiring cable designed for internal wiring of devices.
Features and Benefits
·Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2
·Nominal working voltage 300/500V
·Minimum bending radius 6 x cable diameter
·Fixed installation temperature range of -30 up to +80°C
·Flame retardant according to IEC 60 332.1
·Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2
·Nominal working voltage 300/500V
·Minimum bending radius 6 x cable diameter
·Fixed installation temperature range of -30 up to +80°C
·Flame retardant according to IEC 60 332.1
Applications
·Internal wiring of devices
· Protected installation in and on lighting equipments
· Signal systems in and on plaster in tubes"
·Internal wiring of devices
· Protected installation in and on lighting equipments
· Signal systems in and on plaster in tubes"
Note
These are supplied in boxes not reels.
Standards
EN 50525-2-31, IEC 60332-1-2
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 1 mm² |
Sheath Colour | Grey |
Cable Shape | Single Core |
Core Strands | 32/32 |
Length | 100m |
Insulation Material | PVC |
European Harmonised Code | H05V-K |
Outer Diameter | 2.6mm |
Voltage Rating | 500 V |
Maximum Operating Temperature | +80°C |
CPR Certification | Eca |
Minimum Operating Temperature | -30°C |
Conductor Material | Bare Copper |
Series | ÖLFLEX® H05V-K |
Size of Strands | 32 AWG |
Number of Strands | 32 |
