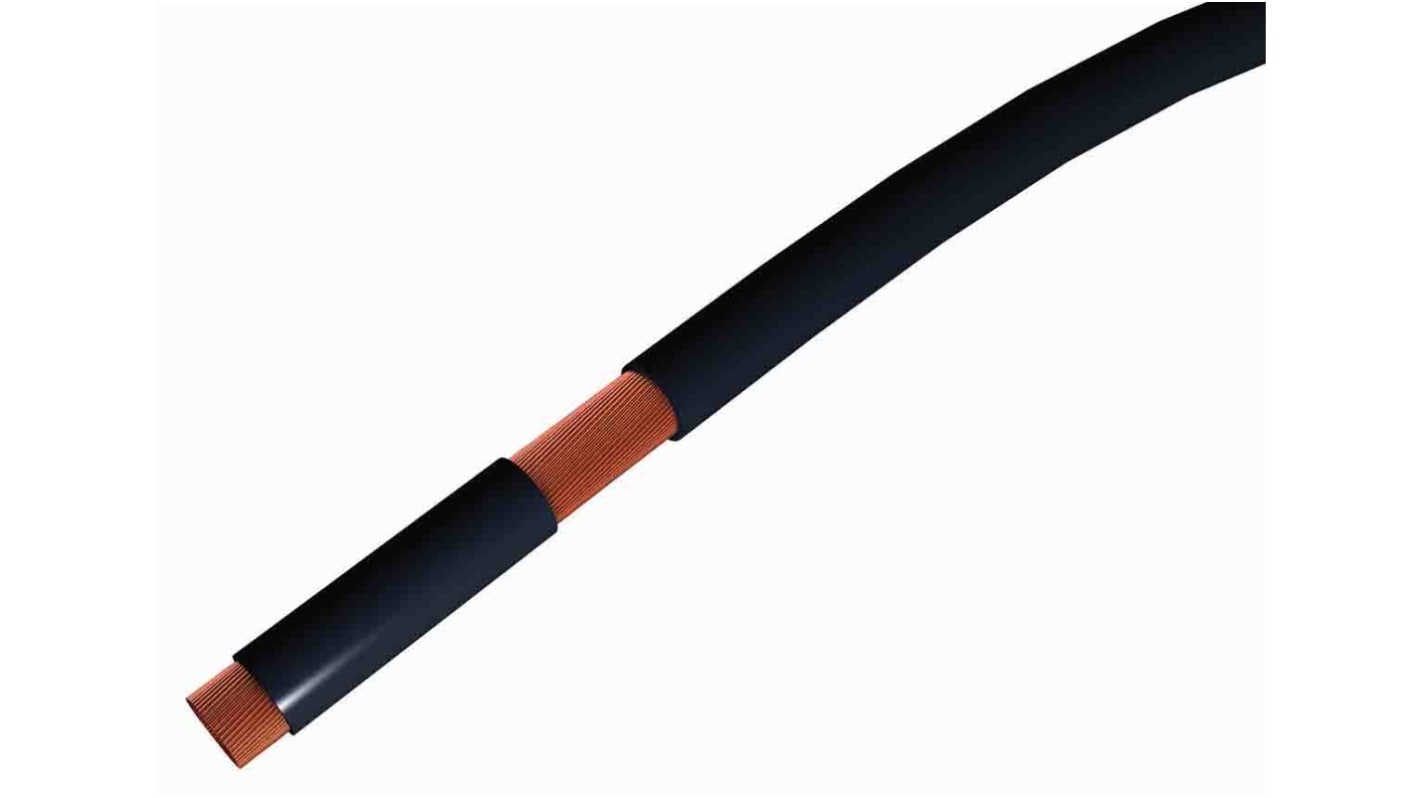

RS PRO Black 0.75mm² Hook Up Wire, 18 AWG, 100m, PVC Insulation
- RS Stock No.:
- 201-0551
- Manufacturer:
- RS PRO
Subtotal (1 reel of 100 metres)*
PHP3,237.04
(exc. VAT)
PHP3,625.48
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP3,237.04 | PHP32.37 |
*price indicative
- RS Stock No.:
- 201-0551
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.75mm² | |
| Sheath Colour | Black | |
| Cable Shape | Single Core | |
| American Wire Gauge | 18 AWG | |
| Length | 100m | |
| Insulation Material | PVC | |
| European Harmonised Code | H07V-K | |
| Voltage Rating | 450/750 V | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -5°C | |
| Conductor Material | Stranded Bare Copper | |
| Cable Type | PVC Wire | |
| Standards Met | IEC 60332-1 | |
| Fire Behaviour | Flame Retardant | |
| Shield Type | Unshielded | |
| Number of Strands | 1 | |
| Size of Strands | mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.75mm² | ||
Sheath Colour Black | ||
Cable Shape Single Core | ||
American Wire Gauge 18 AWG | ||
Length 100m | ||
Insulation Material PVC | ||
European Harmonised Code H07V-K | ||
Voltage Rating 450/750 V | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -5°C | ||
Conductor Material Stranded Bare Copper | ||
Cable Type PVC Wire | ||
Standards Met IEC 60332-1 | ||
Fire Behaviour Flame Retardant | ||
Shield Type Unshielded | ||
Number of Strands 1 | ||
Size of Strands mm | ||
- COO (Country of Origin):
- IT
RS PRO Single Core PVC Insulated Equipment Wire
Introducing the range of RS PRO equipment wires, ideal for use across a wide variety of electrical power, lighting and internal wiring applications. The flexible hook up cable can be used for reliable cable connections in a neat and well-organised layout. By using this RS PRO high-quality range of single-core equipment cables, the installation wires can be easily colour coded by using the different sheath colours available in the range, dependant on the installation terminals being used. In addition to this, the robust and carefully manufactured copper conductor ensures optimum reliability and performance, regardless of the application the wires are being used for.
Features and Benefits:
Applications:
Equipment wire or hook up wire can be used for a wide variety of low voltage and current applications. These can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors and PVC sheath, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Standards and Certifications:
