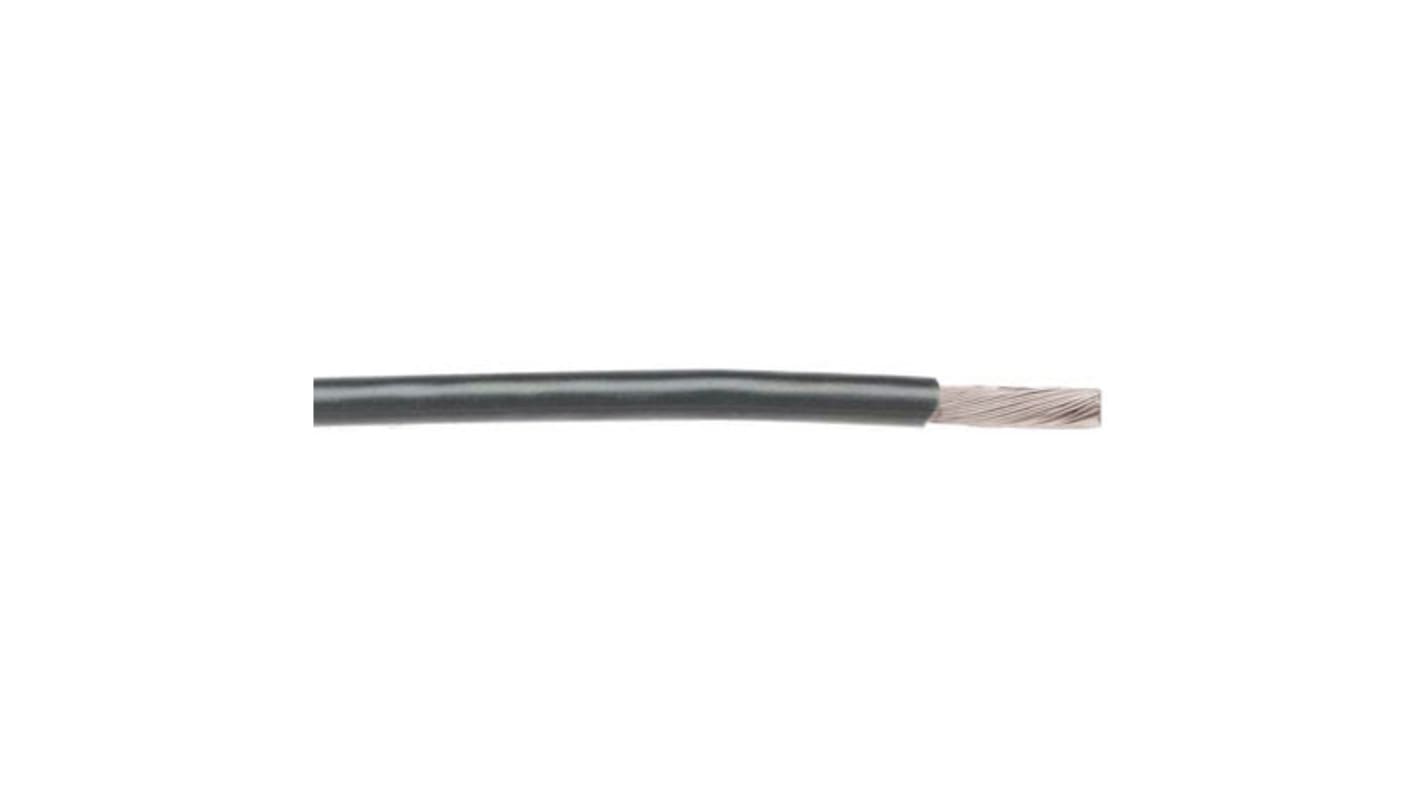

Alpha Wire Hook-up Wire TEFLON Series Grey 0.23 mm² PTFE Equipment Wire, 24 AWG, 7/0.20 mm, 30m, PTFE Insulation,

RS Stock No.:: 177-1040
Mfr. Part No.:: 5854/7 SL005
Manufacturer:: Alpha Wire

Alpha Wire Hook-up Wire TEFLON Series Grey 0.23 mm² PTFE Equipment Wire, 24 AWG, 7/0.20 mm, 30m, PTFE Insulation,

Bulk discount available

Subtotal (1 reel of 30 metres)*

PHP4,585.59

(exc. VAT)

PHP5,135.86

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

15 unit(s) ready to ship from another location
Plus 6 unit(s) shipping from December 22, 2025
Plus 15 unit(s) shipping from March 10, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 49	PHP4,585.59	PHP152.853
50 +	PHP4,448.04	PHP148.268

*price indicative

RS Stock No.:: 177-1040
Mfr. Part No.:: 5854/7 SL005
Manufacturer:: Alpha Wire

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Cross Sectional Area	0.23 mm²
	Sheath Colour	Grey
	American Wire Gauge	24 AWG
	Cable Shape	Single Core
	Core Strands	7/0.20 mm
	Length	30m
	Insulation Material	PTFE
	Outer Diameter	1.12mm
	Voltage Rating	600 V
	Maximum Operating Temperature	+200°C
	Minimum Operating Temperature	-60°C
	Conductor Material	Silver Plated Copper
	Cable Type	High Temperature
	Wire Style	UL1213
	Standards Met	MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1
	Tri-rated	No
	Series	Hook-up Wire TEFLON
	Insulation Wall Thickness	0.3mm
	Hook Up Wire Type	High Temperature
	Shield Type	Unshielded
	Size of Strands	0.2 mm
	Resistant To	Chemicals, Oils, Solvents
	Number of Strands	7

	Select all
	Brand Alpha Wire
	Cross Sectional Area 0.23 mm²
	Sheath Colour Grey
	American Wire Gauge 24 AWG
	Cable Shape Single Core
	Core Strands 7/0.20 mm
	Length 30m
	Insulation Material PTFE
	Outer Diameter 1.12mm
	Voltage Rating 600 V
	Maximum Operating Temperature +200°C
	Minimum Operating Temperature -60°C
	Conductor Material Silver Plated Copper
	Cable Type High Temperature
	Wire Style UL1213
	Standards Met MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1
	Tri-rated No
	Series Hook-up Wire TEFLON
	Insulation Wall Thickness 0.3mm
	Hook Up Wire Type High Temperature
	Shield Type Unshielded
	Size of Strands 0.2 mm
	Resistant To Chemicals, Oils, Solvents
	Number of Strands 7

Belden Hook-up Wire TEFLON Series PTFE Equipment Wire, 0.23 mm² Cross Sectional Area, Grey Sheath - 5854/7 SL005

This PTFE Equipment Wire is designed for high-performance applications in demanding environments. The cable features a cross-sectional area of 0.23 mm² and comes in a length of 30m. Developed with a single-core structure and insulation material made of PTFE, it delivers impressive electrical and thermal properties, making it suitable for various industrial applications.

Features & Benefits

• Rated for maximum operating temperatures up to +200°C
• Insulated with PTFE for superior chemical resistance
• Silver-plated copper construction ensures excellent conductivity
• Complies with UL1213 and military standards for reliability
• Unshielded design facilitates easier installation and routing
• Voltage rating of 600V supports high voltage applications

Applications

• Utilised in high-temperature electronics and automation setups
• Suitable for wiring connections in military and aerospace equipment
• Applied in environments where chemical exposure is a concern
• Ideal for high voltage electrical systems and circuit assemblies
• Used for customised hook-up wiring in mechanical systems

What characteristics contribute to its chemical resistance?

The wire's PTFE insulation material is specifically engineered to withstand exposure to a variety of chemicals, oils, and solvents, ensuring durability in harsh conditions.

How does its temperature range affect usage in electrical applications?

The operational temperature range of -60°C to +200°C allows for versatile use in extreme environments, making it reliable for various electrical applications that encounter different thermal conditions.

What advantages does the silver-plated copper provide compared to standard copper?

Silver-plated copper enhances conductivity, reducing power losses and improving the overall efficiency of electrical systems compared to traditional copper configurations.

Can this wire accommodate bends in tight spaces?

Its construction allows for a bend radius of 10 times the cable diameter, making it flexible enough to navigate through tight spaces without compromising integrity.
