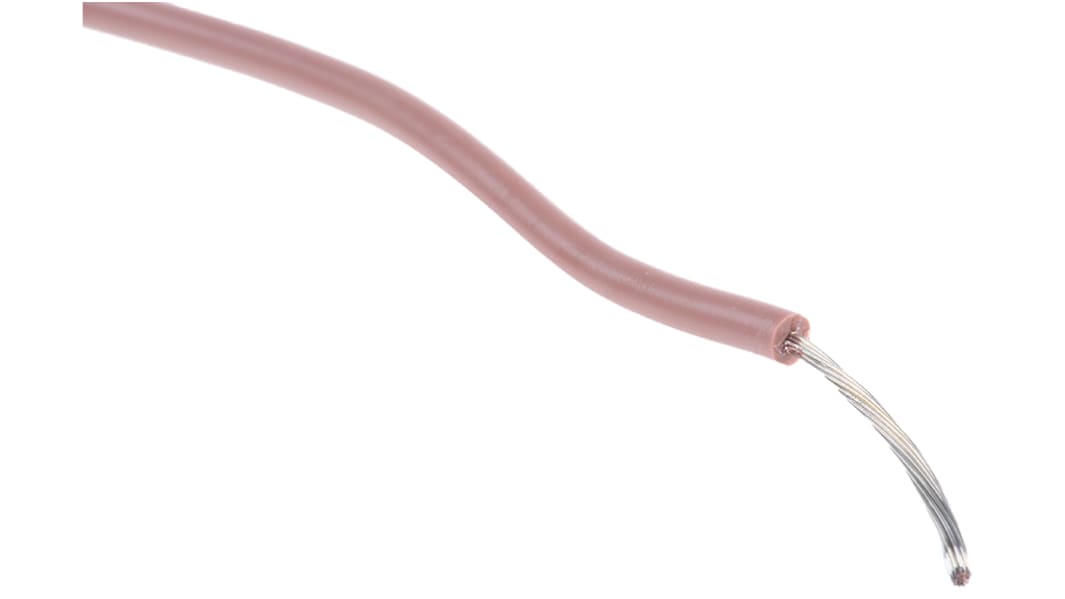

RS PRO Brown 0.5mm² Hook Up Wire, 20 AWG, 16/0.2 mm, 25m, Silicone Rubber Insulation
- RS Stock No.:
- 359-706
- Manufacturer:
- RS PRO
Subtotal (1 reel of 25 metres)**
Was PHP2,034.77
You pay
PHP1,818.46
(exc. VAT)
PHP2,036.68
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for over PHP3,000.00 (ex VAT)
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 - 24 | PHP1,818.46 | PHP72.738 |
| 25 + | PHP1,763.91 | PHP70.556 |
**price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 25 Metre(s)
PHP1,704.10
(exc. VAT)
PHP1,908.59
(inc. VAT)
- RS Stock No.:
- 359-706
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.5mm² | |
| Sheath Colour | Brown | |
| American Wire Gauge | 20 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 16/0.2 mm | |
| Length | 25m | |
| Insulation Material | Silicone Rubber | |
| Voltage Rating | 750 V | |
| Outer Diameter | 2.6mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +180°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Harsh Environment | |
| Wire Style | BS6195 | |
| Insulation Wall Thickness | 0.8mm | |
| Number of Strands | 16 | |
| Size of Strands | 0.2mm | |
| Resistant To | Corona Discharge, Heat, Oils, Ozone, Radiation, Solvents, Weathering | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.5mm² | ||
Sheath Colour Brown | ||
American Wire Gauge 20 AWG | ||
Cable Shape Single Core | ||
Core Strands 16/0.2 mm | ||
Length 25m | ||
Insulation Material Silicone Rubber | ||
Voltage Rating 750 V | ||
Outer Diameter 2.6mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +180°C | ||
Conductor Material Tinned Copper | ||
Cable Type Harsh Environment | ||
Wire Style BS6195 | ||
Insulation Wall Thickness 0.8mm | ||
Number of Strands 16 | ||
Size of Strands 0.2mm | ||
Resistant To Corona Discharge, Heat, Oils, Ozone, Radiation, Solvents, Weathering | ||
