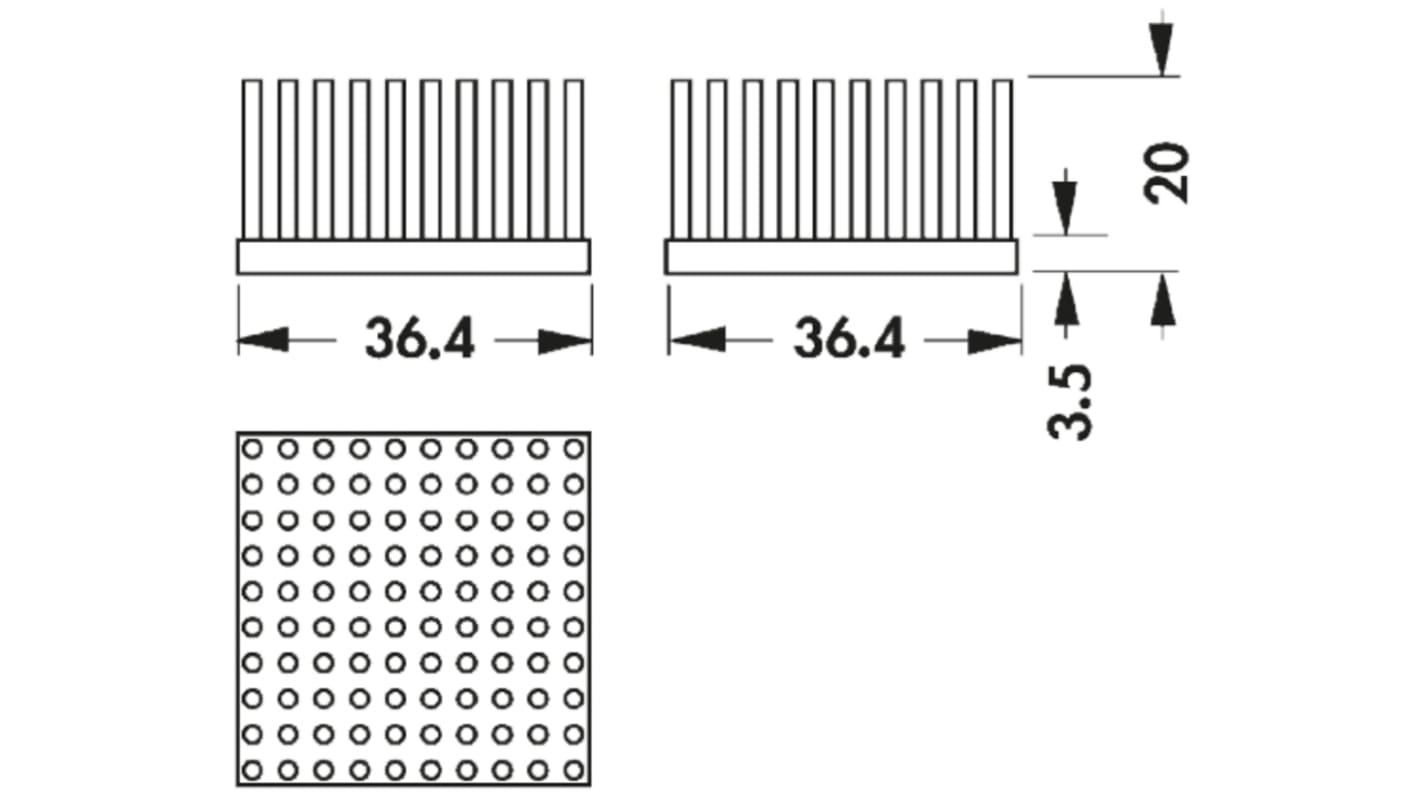

Fischer Elektronik Heatsink, Universal Square Alu, 3.2K/W 20 mm 36.4 mm 36.4 mm
- RS Stock No.:
- 674-4822
- Mfr. Part No.:
- ICK S 36x36x20
- Manufacturer:
- Fischer Elektronik
Subtotal (1 unit)*
PHP644.00
(exc. VAT)
PHP721.28
(inc. VAT)
FREE delivery for orders over ₱3,000.00
- 5 unit(s) shipping from May 04, 2026
Units | Per Unit |
|---|---|
| 1 - 49 | PHP644.00 |
| 50 - 99 | PHP624.67 |
| 100 - 249 | PHP605.92 |
| 250 + | PHP587.74 |
*price indicative
- RS Stock No.:
- 674-4822
- Mfr. Part No.:
- ICK S 36x36x20
- Manufacturer:
- Fischer Elektronik
Select all | Attribute | Value |
|---|---|---|
| Brand | Fischer Elektronik | |
| Product Type | Heatsink | |
| For Use With | Universal Square Alu | |
| Length | 36.4mm | |
| Width | 36.4 mm | |
| Height | 20mm | |
| Thermal Resistance | 3.2K/W | |
| Fastening | Conductive Foil | |
| Finish | Black Anodised | |
| Compatible Package Type | PGA, IC, Slot 1, SMD, Slot, DIL/IC, BGA, LED, PLCC, Slot II | |
| Standards/Approvals | No | |
| Material | Aluminium | |
| Special Features | Other Pin Lengths and Surfaces on Request, Double Ball Bearing for High Reliability and Long Life, Compact Design With High Mechanical Stability, Custom-specific Modifications and Special Designs, Can Be Glued Directly on the BGA Component, Fan Motors Also Available With Pulse Output and Alarm Device Circuit, Particularly Suited for Ball Grid Arrays, Effective Heat Dissipation by Optimum Design, Excellent Thermal Efficiency by Flow-Favourable Omnidirectional Fin Geometry, Fan Motors With Other Operating Voltages on Request, Low Current Consumption and Thus Low Self-Heating, Heatsink Dimensions Match Respective BGA Type, High-grade Industrial Type | |
| Select all | ||
|---|---|---|
Brand Fischer Elektronik | ||
Product Type Heatsink | ||
For Use With Universal Square Alu | ||
Length 36.4mm | ||
Width 36.4 mm | ||
Height 20mm | ||
Thermal Resistance 3.2K/W | ||
Fastening Conductive Foil | ||
Finish Black Anodised | ||
Compatible Package Type PGA, IC, Slot 1, SMD, Slot, DIL/IC, BGA, LED, PLCC, Slot II | ||
Standards/Approvals No | ||
Material Aluminium | ||
Special Features Other Pin Lengths and Surfaces on Request, Double Ball Bearing for High Reliability and Long Life, Compact Design With High Mechanical Stability, Custom-specific Modifications and Special Designs, Can Be Glued Directly on the BGA Component, Fan Motors Also Available With Pulse Output and Alarm Device Circuit, Particularly Suited for Ball Grid Arrays, Effective Heat Dissipation by Optimum Design, Excellent Thermal Efficiency by Flow-Favourable Omnidirectional Fin Geometry, Fan Motors With Other Operating Voltages on Request, Low Current Consumption and Thus Low Self-Heating, Heatsink Dimensions Match Respective BGA Type, High-grade Industrial Type | ||
- COO (Country of Origin):
- DE
ICK S Series
PGA Heatsinks
