SPREADFAST Heatsink, Universal Square Ceramic, 2.4°C/W, 5.2 °C/W 15 mm 60 mm 50 mm
- RS Stock No.:
- 123-5621
- Mfr. Part No.:
- SF-CHS-606015P
- Manufacturer:
- SPREADFAST
Bulk discount available
Subtotal (1 unit)*
PHP399.20
(exc. VAT)
PHP447.10
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 98 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP399.20 |
| 25 - 49 | PHP387.22 |
| 50 - 99 | PHP375.61 |
| 100 + | PHP364.32 |
*price indicative
- RS Stock No.:
- 123-5621
- Mfr. Part No.:
- SF-CHS-606015P
- Manufacturer:
- SPREADFAST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SPREADFAST | |
| For Use With | Universal Square Ceramic | |
| Product Type | Heatsink | |
| Length | 60mm | |
| Width | 50 mm | |
| Height | 15mm | |
| Fastening | Adhesive, Screw | |
| Thermal Resistance | 2.4, 5.2°C/W | |
| Series | Pin Fin | |
| Colour | White | |
| Standards/Approvals | RoHS | |
| Material | Aluminium Oxide | |
| Special Features | Good Thermal Cycling Stability, High Volume Resistivity, High Breakdown Voltage, Lower density, Good EMC, Good Heat Spreader, Ideal for Direct Metalisation | |
| Select all | ||
|---|---|---|
Brand SPREADFAST | ||
For Use With Universal Square Ceramic | ||
Product Type Heatsink | ||
Length 60mm | ||
Width 50 mm | ||
Height 15mm | ||
Fastening Adhesive, Screw | ||
Thermal Resistance 2.4, 5.2°C/W | ||
Series Pin Fin | ||
Colour White | ||
Standards/Approvals RoHS | ||
Material Aluminium Oxide | ||
Special Features Good Thermal Cycling Stability, High Volume Resistivity, High Breakdown Voltage, Lower density, Good EMC, Good Heat Spreader, Ideal for Direct Metalisation | ||

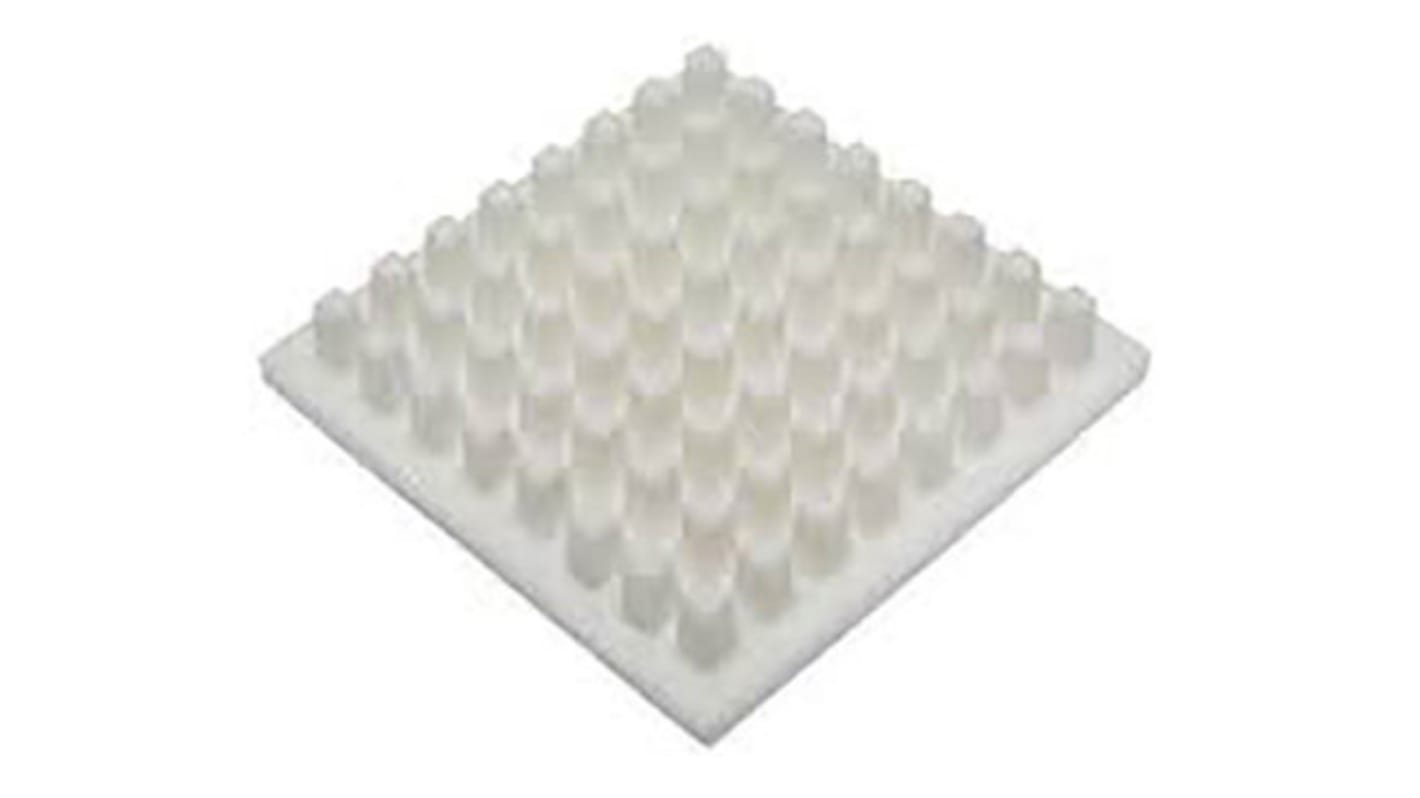

Spreadfast SF-CHS Series Square Pin Ceramic Heatsink
Spreadfast SF-CHS series of square pin ceramic heatsinks have been designed as a lower density improvement over traditional metal heatsinks. The innate characteristics of ceramic heatsinks means the SF-CHS series have a high breakdown voltage and heat dissipation. Thanks to the meticulous design of these ceramic heatsinks, the SF-CHS series are ideally suited to applications where thermal cycling stability are required.
Typical Applications
Traditional heatsink replacement.
LED & chipset cooling.
Power modules.
IC cooling.
