RS PRO Heating Element, 75mm, 125 W, 220 V ac

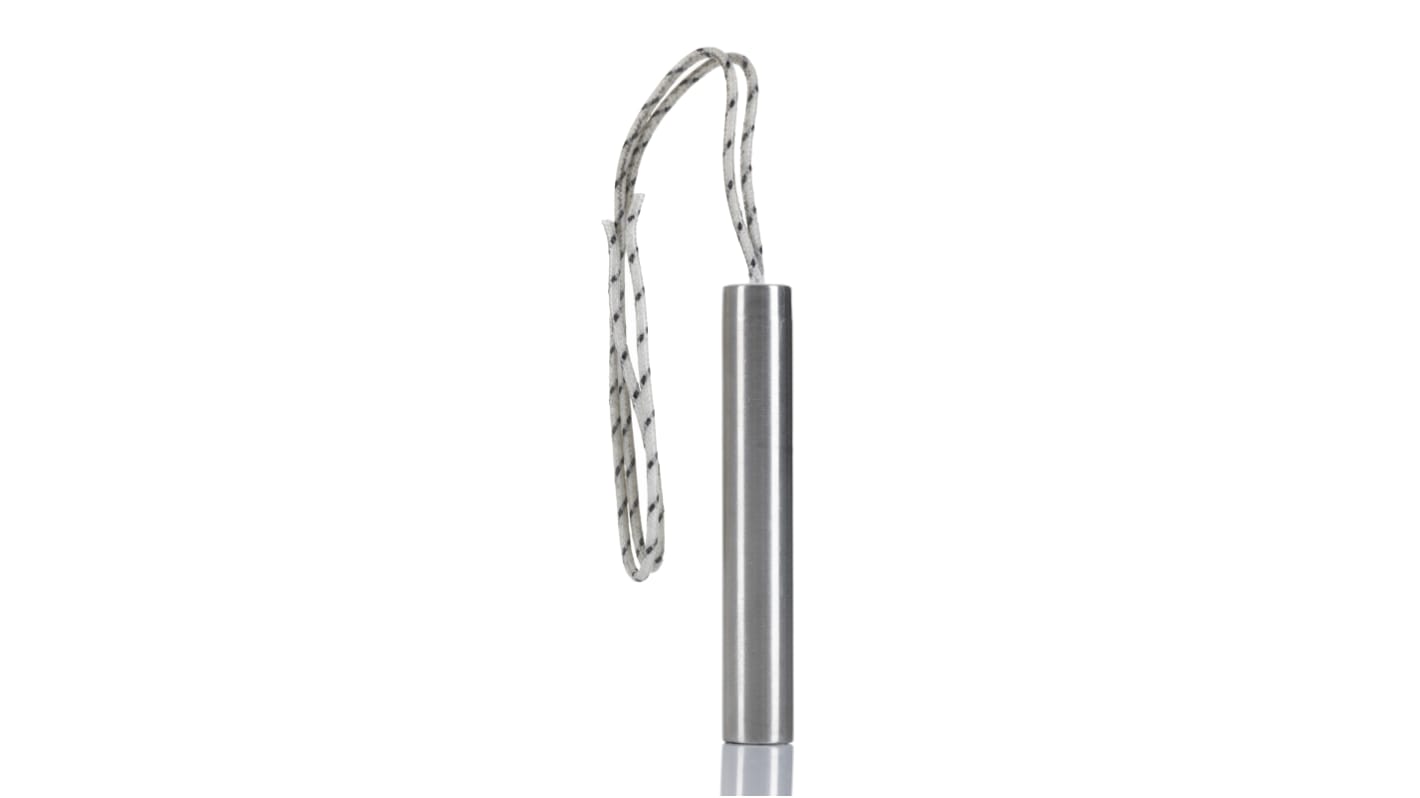

This cartridge heater is a tube-shaped heating element that's used to heat a variety of metal plates and components. It's part of our stringently tested RS PRO series.

Used primarily in industrial settings, these heating cartridges are handily designed to slide into holes drilled with English or metric drill sizes. It’s important to consider the intended use beforehand, as the element needs to fit snugly to work. For reference, this cartridge has a diameter of 10 mm.

The heater is equipped with a 10-inch lead wire that can withstand temperatures of up to +450°C. The lead itself is flexible, with deep holes in the ceramic cap designed to prevent fraying when bent.

Versatile and robust, this cartridge heater is a great choice for use in plastics and packaging applications, test instruments, hot stamping and printing. It's also RoHS certified, which means it's protected against hazardous substances.

• Power rating of 250 W
• Supply voltage of 220 V ac
• Diameter of 10 mm
• Length of 70 mm
• Lead length of 10 inches
• Nickel-chromium resistance wire for maximum heater life
• TIG-welded end disc prevents contamination and moisture absorption
• Fibreglass lead wire insulation

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

Cartridge Heaters

In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.

Designed to provide localised heat to a restricted work area requiring close thermal control
Cartridge heaters have low/moderate watt density elements consisting of helical wire coils on ceramic former or high watt density elements with the heating element located close to the sheath, which is swaged to improve heat conduction
All units supplied with instruction leaflet
