Molex Type D 19 Way Female Right Angle HDMI Connector 30 V
- RS Stock No.:
- 167-6399
- Mfr. Part No.:
- 46765-2001
- Manufacturer:
- Molex

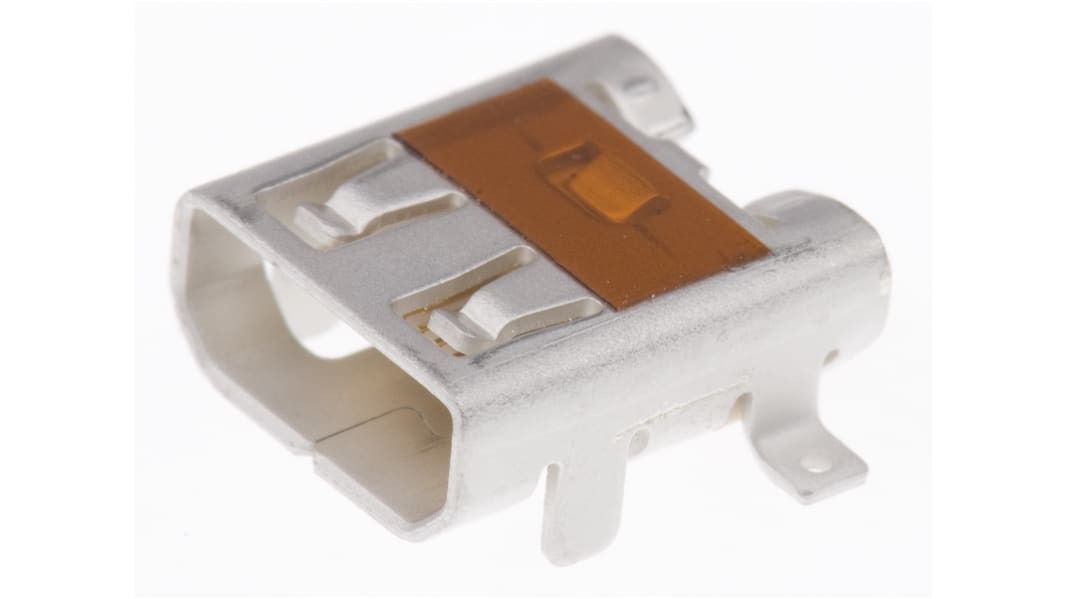

This image is representative of the product range
View all HDMI Connectors
Temporarily out of stock - back order for despatch 03/01/2024, delivery within 10 working days from desptach date
Price 1 Reel of 4000
PHP517,940.00
(exc. VAT)
PHP580,092.80
(inc. VAT)
| Reel(s) | Per Reel | Per Unit* |
| 1 - 4 | PHP517,940.00 | PHP129.485 |
| 5 + | PHP466,146.00 | PHP116.536 |
| *price indicative | ||
- RS Stock No.:
- 167-6399
- Mfr. Part No.:
- 46765-2001
- Manufacturer:
- Molex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- SG
Product Details
HDMI Type D Micro Connectors
These HDMI Type D Micro receptacles meet the requirements of the HDMI 1.4 Specification.
Features include:
0.40mm (.016″) pitch dual-row
5,000 mating cycles
Friction lock on receptacle shell
Rear receptacle-shell-over-housing design
Receptacle terminal hold-down feature
0.40mm (.016″) pitch dual-row
5,000 mating cycles
Friction lock on receptacle shell
Rear receptacle-shell-over-housing design
Receptacle terminal hold-down feature
Note
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Molex HDMI Type D Micro Connectors
The Molex HDMI Type D Micro connector meets all mechanical and electrical requirements of the HDMI 1.4 Specification and is only half the size of the current Type C (Mini) connector. These HDMI Type D Micro connectors offer significant space-saving and real estate advantages and is the industry’s only I/O solution that allows customers to surpass HD consumer demand. Despite its smaller size, the new HDMI Type D Micro connector delivers equivalent mechanical strength and electrical characteristics of its larger Type C predecessor.
Specifications
| Attribute | Value |
| Gender | Female |
| Number of Contacts | 19 |
| Size | Type D |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Current Rating | 800mA |
| Voltage Rating | 30 V |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Series | HDMI |
| Series Number | 7879 |
