Bernstein AG Momentary Foot Switch - 2 NO/2 NC Aluminium 10 A Contact Current, 400 V ac Contact Voltage
- RS Stock No.:
- 410-7307
- Mfr. Part No.:
- 6061700008
- Manufacturer:
- Bernstein AG
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP19,784.90
(exc. VAT)
PHP22,159.09
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 35 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP19,784.90 |
| 5 - 9 | PHP19,191.36 |
| 10 + | PHP18,615.62 |
*price indicative
- RS Stock No.:
- 410-7307
- Mfr. Part No.:
- 6061700008
- Manufacturer:
- Bernstein AG
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bernstein AG | |
| Contact Configuration | 2 NO/2 NC | |
| Series | 606 | |
| Product Type | Foot Switch | |
| Switch Operation | Momentary | |
| Housing Material | Aluminium | |
| Contact AC Voltage | 400V ac | |
| Contact DC Voltage | 240V dc | |
| Contact Current | 10A | |
| IP Rating | IP65 | |
| Terminal Type | Screw | |
| Cover | Yes | |
| Depth | 146mm | |
| Length | 250mm | |
| Standards/Approvals | EU, CSA, CCC | |
| Width | 146mm | |
| Housing Colour | Red | |
| Mechanical Life | 1000000Operations | |
| Number of Pedals | 1 | |
| Select all | ||
|---|---|---|
Brand Bernstein AG | ||
Contact Configuration 2 NO/2 NC | ||
Series 606 | ||
Product Type Foot Switch | ||
Switch Operation Momentary | ||
Housing Material Aluminium | ||
Contact AC Voltage 400V ac | ||
Contact DC Voltage 240V dc | ||
Contact Current 10A | ||
IP Rating IP65 | ||
Terminal Type Screw | ||
Cover Yes | ||
Depth 146mm | ||
Length 250mm | ||
Standards/Approvals EU, CSA, CCC | ||
Width 146mm | ||
Housing Colour Red | ||
Mechanical Life 1000000Operations | ||
Number of Pedals 1 | ||
- COO (Country of Origin):
- DE

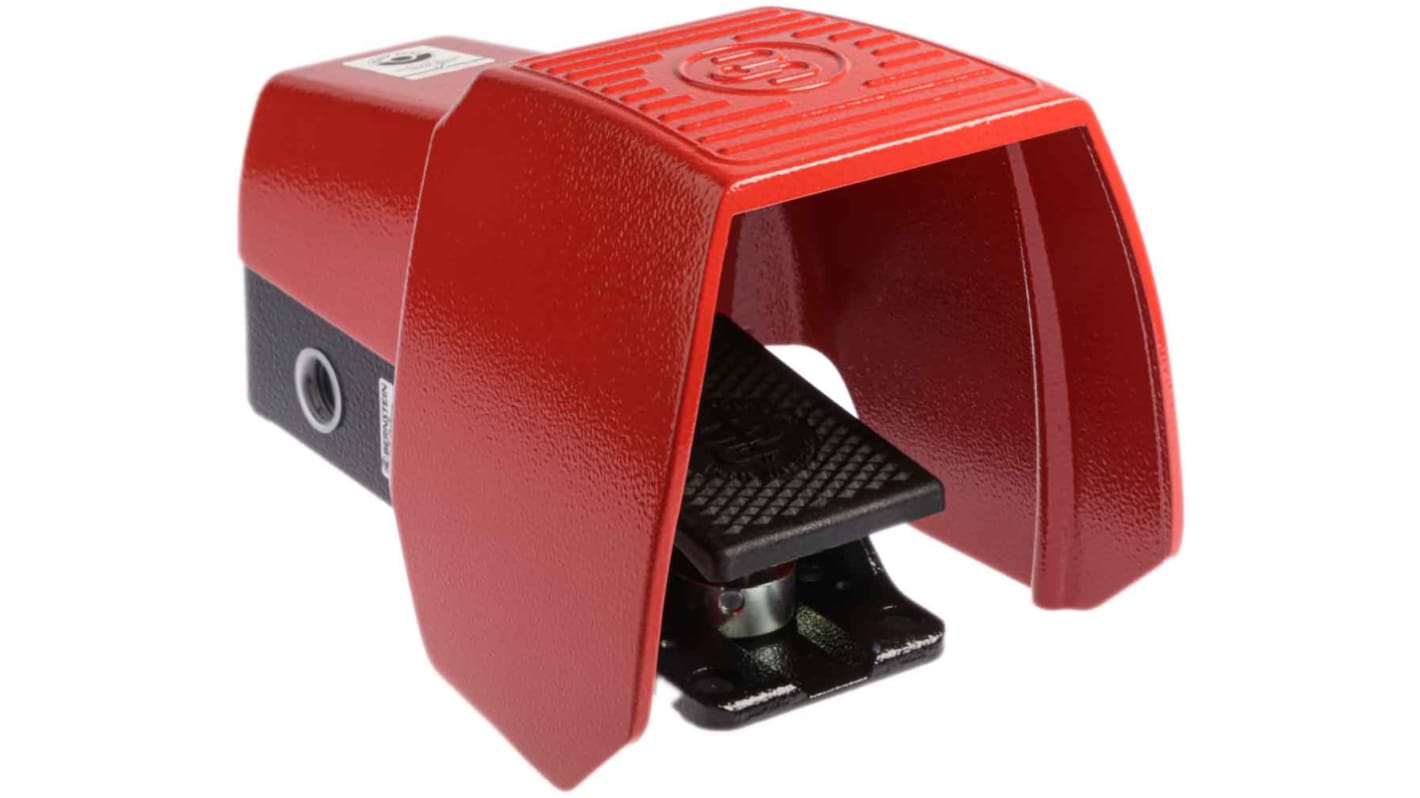

Bernstein AG Foot Switch
The Bernstein AG 606 series single-pedal, momentary contact guarded foot switch has double normally open and double normally closed as normal state configuration. It is red and made of aluminium. This foot switch has a rated insulation voltage of 400VAC, rated operational voltage of 240V and conventional thermal current of 10A.
Features and Benefits
4PST pole and throw configuration
Safety stay put with manual locking release
Metal encapsulated housing
AL safety cover for accident prevention
Foot pedal is made up of thermoplastic
Latching foot pedal
8 screw connections (M3.5)
Cable entry 3 x M20 x 1.5
Applications
Coil winding machines
Photo lab equipment
Sewing machines
Conveyor belts
Imprinting equipment
CNC machines
Certifications
IP65 rated
CCC certified
DGUV certified
CSA certified
UL approved
BG certified
DIN EN 60947-1
IEC 60947-1
DIN EN 60947-5-1
IEC 60947-5-1
