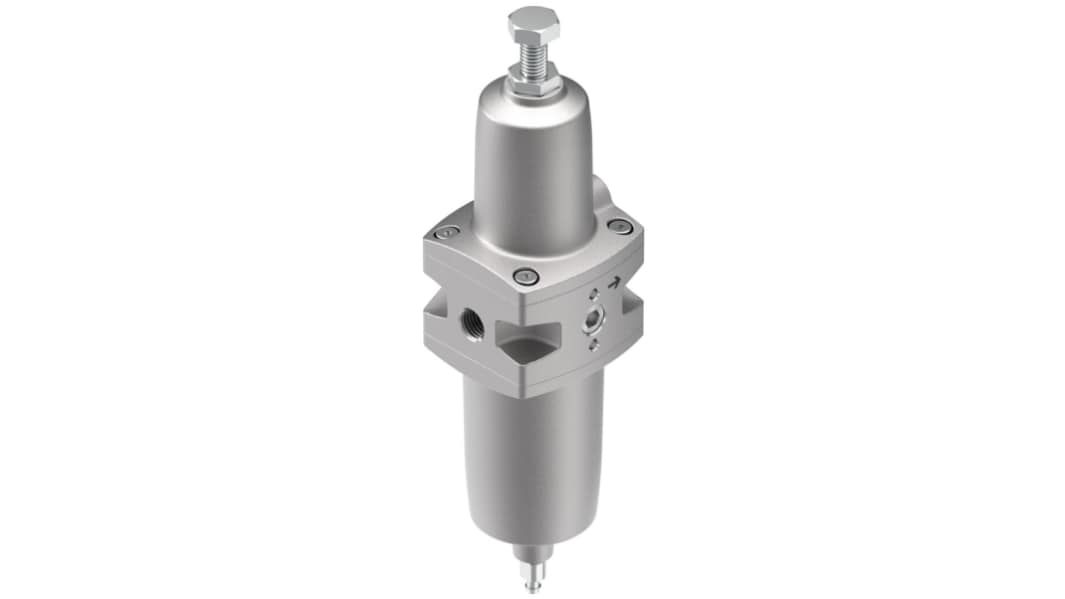

Festo P Stainless Steel Filter Regulator, 40μm, G 1/4, Manual, 20 bar, 5394671

RS Stock No.:: 288-2873
Mfr. Part No.:: PCRP-64-G14-7-E-R1-M-T19
Manufacturer:: Festo

Festo P Stainless Steel Filter Regulator, 40μm, G 1/4, Manual, 20 bar, 5394671

Subtotal (1 unit)*

PHP27,114.81

(exc. VAT)

PHP30,368.59

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Temporarily out of stock

Shipping from January 05, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP27,114.81

*price indicative

RS Stock No.:: 288-2873
Mfr. Part No.:: PCRP-64-G14-7-E-R1-M-T19
Manufacturer:: Festo

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Port Connection	G 1/4
	Maximum Operating Pressure	20 bar
	Manufacturer Series	P
	Drain Type	Manual
	Filtration Size	40µm
	Pressure Gauge Port	G 1/4
	Pressure Gauge Port Thread Size	1/4 in
	Port Connection Thread Size	1/4 in
	Maximum Ambient Operating Temperature	+80°C
	Minimum Process Operating Temperature	-60°C
	Minimum Operating Pressure	1bar
	Pressure Gauge Port Thread Standard	G
	Port Connection Thread Standard	G
	Maximum Process Operating Temperature	+80°C
	Ambient Operating Temperature Range	-60 → +80°C
	Bowl Material	Stainless Steel
	Model Number	5394671
	Process Operating Temperature Range	-60 → +80°C
	Minimum Ambient Operating Temperature	-60°C

	Select all
	Brand Festo
	Port Connection G 1/4
	Maximum Operating Pressure 20 bar
	Manufacturer Series P
	Drain Type Manual
	Filtration Size 40µm
	Pressure Gauge Port G 1/4
	Pressure Gauge Port Thread Size 1/4 in
	Port Connection Thread Size 1/4 in
	Maximum Ambient Operating Temperature +80°C
	Minimum Process Operating Temperature -60°C
	Minimum Operating Pressure 1bar
	Pressure Gauge Port Thread Standard G
	Port Connection Thread Standard G
	Maximum Process Operating Temperature +80°C
	Ambient Operating Temperature Range -60 → +80°C
	Bowl Material Stainless Steel
	Model Number 5394671
	Process Operating Temperature Range -60 → +80°C
	Minimum Ambient Operating Temperature -60°C

COO (Country of Origin):: IN

Festo Series P Filter Regulator, 20 bar Maximum Operating Pressure, G 1/4 Port Connection - PCRP-64-G14-7-E-R1-M-T19, Numeric Part Number: 5394671

This filter regulator is designed for efficient management of compressed air systems. As part of the P range, it features a G 1/4 port connection and a maximum operating pressure of 20 bar, ensuring robust performance in various applications. The regulator maintains optimal pressure levels while offering manual condensate drainage and high-temperature resilience, making it suitable for demanding environments.

Features & Benefits

• Provides a filtration size of 40 μm for effective air purification
• Adjustable pressure regulation from 0.5 bar to 7 bar enhances flexibility
• Compatible with both analogue and digital pressure gauges for monitoring
• Operates efficiently within a wide temperature range of -60°C to +80°C

Applications

• Used with pneumatic systems in industrial environments
• Ideal for requiring compressed air purity
• Suitable for high-temperature and low-temperature operating settings
• Utilised in automation and process control systems

How does the manual drain feature benefit users?

The manual drain feature enables users to easily remove condensate build-up, ensuring efficient operation and prolonging the life of the equipment by reducing potential blockages.

What materials are used in the construction of this filter regulator?

The product features high-alloy stainless steel in its housing, drain screw, and filter, ensuring durability and compliance with various industrial standards. This construction also guarantees resistance to corrosion during use.

What should be considered for installation regarding the mounting position?

The regulator can be installed vertically with a tolerance of +/- 5°, which is essential for optimal performance and effective condensate drainage.
