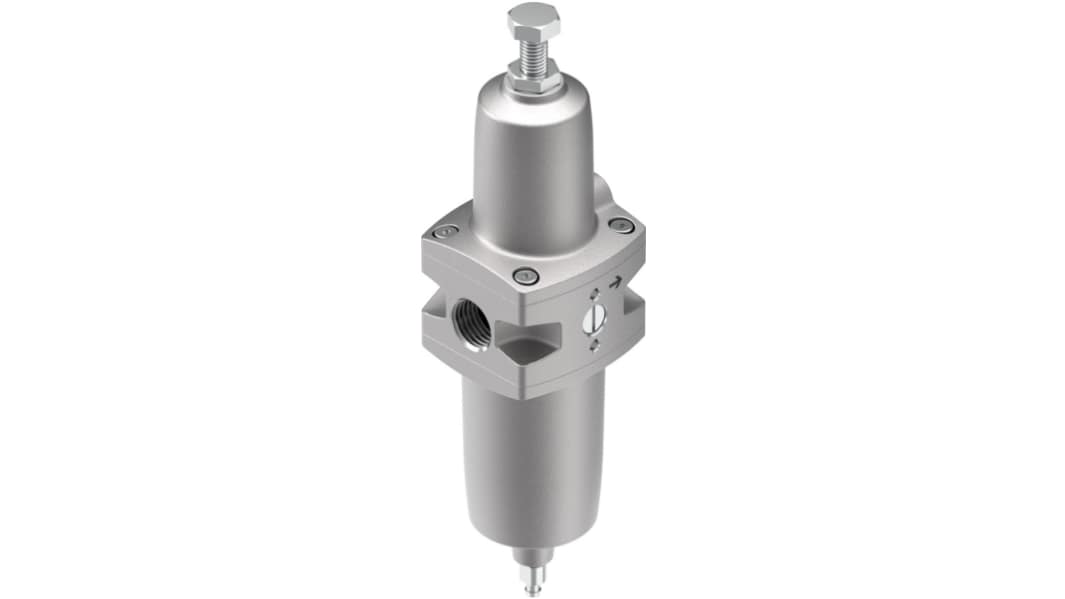

Festo P Stainless Steel Filter Regulator, 40μm, G 1/2, Manual, 20 bar, 4787813

RS Stock No.:: 288-2864
Mfr. Part No.:: PCRP-64-G12-7-E-R1-M-T18
Manufacturer:: Festo

Festo P Stainless Steel Filter Regulator, 40μm, G 1/2, Manual, 20 bar, 4787813

Subtotal (1 unit)*

PHP25,936.07

(exc. VAT)

PHP29,048.40

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Temporarily out of stock

Shipping from January 06, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP25,936.07

*price indicative

RS Stock No.:: 288-2864
Mfr. Part No.:: PCRP-64-G12-7-E-R1-M-T18
Manufacturer:: Festo

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Port Connection	G 1/2
	Maximum Operating Pressure	20 bar
	Manufacturer Series	P
	Drain Type	Manual
	Filtration Size	40µm
	Pressure Gauge Port	G 1/4
	Pressure Gauge Port Thread Size	1/4 in
	Port Connection Thread Size	1/2 in
	Maximum Ambient Operating Temperature	+80°C
	Minimum Process Operating Temperature	-20°C
	Minimum Operating Pressure	1bar
	Port Connection Thread Standard	G
	Minimum Ambient Operating Temperature	-20°C
	Process Operating Temperature Range	-20 → +80°C
	Model Number	4787813
	Bowl Material	Stainless Steel
	Maximum Process Operating Temperature	+80°C
	Ambient Operating Temperature Range	-20 → +80°C
	Pressure Gauge Port Thread Standard	G

	Select all
	Brand Festo
	Port Connection G 1/2
	Maximum Operating Pressure 20 bar
	Manufacturer Series P
	Drain Type Manual
	Filtration Size 40µm
	Pressure Gauge Port G 1/4
	Pressure Gauge Port Thread Size 1/4 in
	Port Connection Thread Size 1/2 in
	Maximum Ambient Operating Temperature +80°C
	Minimum Process Operating Temperature -20°C
	Minimum Operating Pressure 1bar
	Port Connection Thread Standard G
	Minimum Ambient Operating Temperature -20°C
	Process Operating Temperature Range -20 → +80°C
	Model Number 4787813
	Bowl Material Stainless Steel
	Maximum Process Operating Temperature +80°C
	Ambient Operating Temperature Range -20 → +80°C
	Pressure Gauge Port Thread Standard G

COO (Country of Origin):: IN

Festo Series P Filter Regulator, 20 bar Maximum Operating Pressure, G 1/2 Port Connection - PCRP-64-G12-7-E-R1-M-T18, Numeric Part Number: 4787813

This filter regulator is designed to provide reliable and efficient control of compressed air systems. With a filtration size of 40 μm and an operating pressure range from 1 bar to 20 bar, this unit is suitable for various industrial applications. Constructed from high-quality stainless steel, it ensures durability and resistance to corrosion, making it ideal for demanding environments.

Features & Benefits

• Offers a manual drain feature for easy maintenance
• Supports a maximum flow rate of 6750 l/min
• Equipped for both pressure gauge and display connection
• Designed to operate effectively across a temperature range of -20°C to +80°C
• Conforms to industry standards for smooth operation with inert gases

Applications

• Utilised in automation systems requiring stable pressure regulation
• Ideal for pneumatic circuits needing high purity air
• Suitable for environments with temperature fluctuations
• Effective in industrial frameworks for compressed air

What types of operating media can be used with this unit?

This device is compatible with compressed air that meets ISO 8573-1:2010 category [-:4:-] and inert gases, ensuring optimal performance in various conditions.

How can the pressure regulation be adjusted?

Adjustment is made via the actuator lock adjusting screw, which provides an easy means of setting the desired pressure within the regulated range.

What measures are in place for explosion protection?

The filter regulator has been certified for various ATEX zones (1, 2, 21, 22), making it safe for use in potentially explosive environments when the provided guidelines are adhered to.
