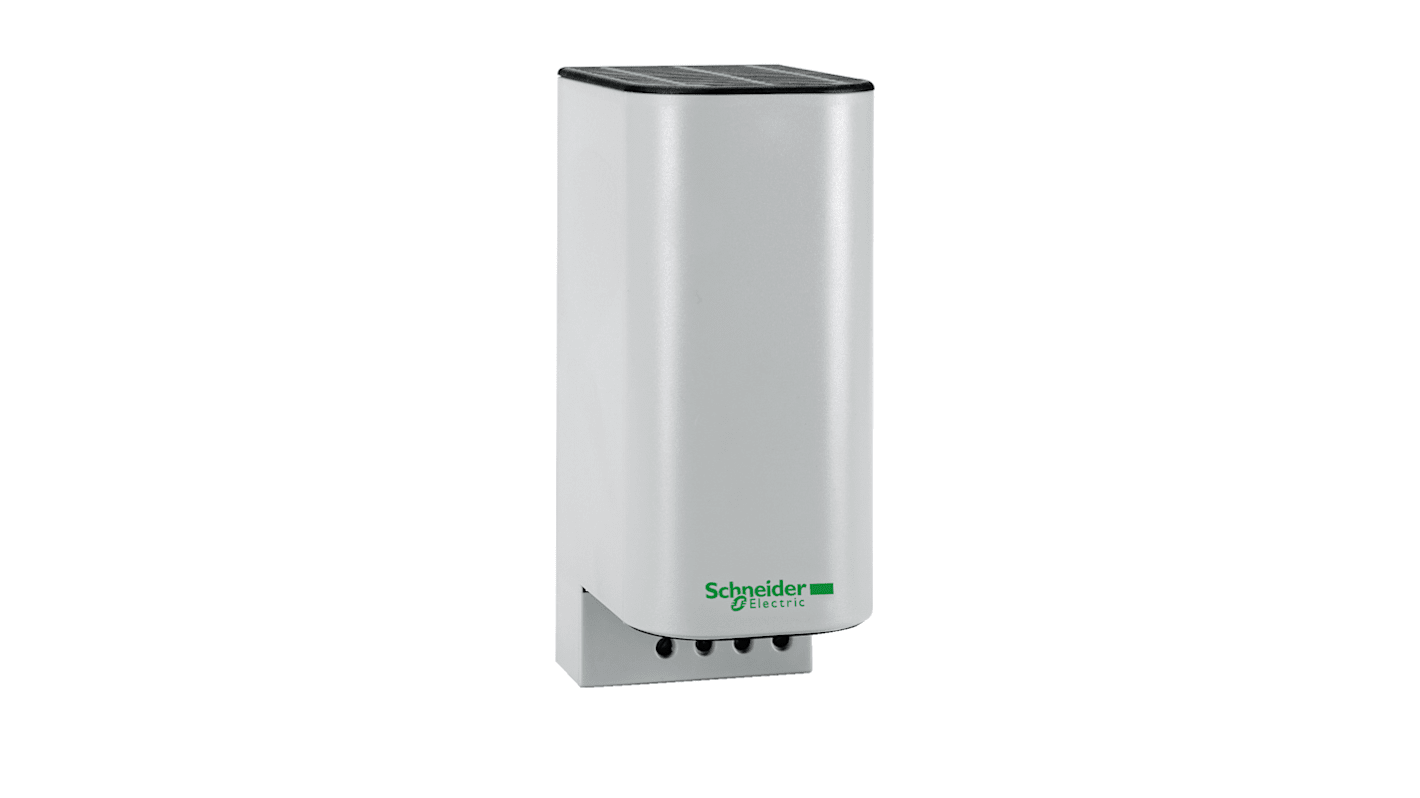

Schneider Electric Enclosure Heater, 12V dc, 24 V dc, 150W Output 60mm x 90 mm
- RS Stock No.:
- 211-2724
- Mfr. Part No.:
- NSYCR150WU1C
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP18,910.87
(exc. VAT)
PHP21,180.17
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP18,910.87 |
*price indicative
- RS Stock No.:
- 211-2724
- Mfr. Part No.:
- NSYCR150WU1C
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Enclosure Heater | |
| Output Power | 150W | |
| Supply Voltage | 12, 24V dc | |
| Connection Type | Screw Terminal | |
| Depth | 90mm | |
| Width | 60mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Insulated PTC | Yes | |
| Mounting Position | Vertical | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL, VDE | |
| Series | ClimaSys | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Enclosure Heater | ||
Output Power 150W | ||
Supply Voltage 12, 24V dc | ||
Connection Type Screw Terminal | ||
Depth 90mm | ||
Width 60mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Insulated PTC Yes | ||
Mounting Position Vertical | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL, VDE | ||
Series ClimaSys | ||
- COO (Country of Origin):
- DE
The Schneider Electric ClimaSys CR range are PTC resistance heaters prevent the formation of condensation and guarantee the ideal temperature for the correct operation of the electronic components in the enclosure. The resistance heaters for electrical and electronic enclosures are equipped with PTC-type heating devices (Positive Temperature Coefficient). The insulated PTC heater comes with a large range of power levels from 10 W to 550 W.
Large range of power levels
Innovating design
Easy installation and connection
High thermal efficiency
Improved convection and quick fixing
