Finder Enclosure Heater, 110V ac, 230 V ac, 25W Output, 25W Input, 50 °C 41mm x 41 mm
- RS Stock No.:
- 184-9919
- Distrelec Article No.:
- 300-57-352
- Mfr. Part No.:
- 7H.51.0.230.0025
- Manufacturer:
- Finder
Bulk discount available
Subtotal (1 unit)*
PHP3,066.60
(exc. VAT)
PHP3,434.59
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP3,066.60 |
| 5 + | PHP2,974.62 |
*price indicative
- RS Stock No.:
- 184-9919
- Distrelec Article No.:
- 300-57-352
- Mfr. Part No.:
- 7H.51.0.230.0025
- Manufacturer:
- Finder
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Enclosure Heater | |
| Output Power | 25W | |
| Air Flow | 30m³/h | |
| Input Power | 25W | |
| Supply Voltage | 110, 230V ac | |
| Surface Temperature | 50°C | |
| Depth | 41mm | |
| Mount Type | DIN Rail | |
| Connection Type | Screw | |
| Width | 41mm | |
| IP Rating | IP20 | |
| Insulated PTC | Yes | |
| Minimum Operating Temperature | -45°C | |
| Mounting Position | Vertical | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | UL, EAC, CE | |
| Series | 7h | |
| Nominal Current | 0.13A | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Enclosure Heater | ||
Output Power 25W | ||
Air Flow 30m³/h | ||
Input Power 25W | ||
Supply Voltage 110, 230V ac | ||
Surface Temperature 50°C | ||
Depth 41mm | ||
Mount Type DIN Rail | ||
Connection Type Screw | ||
Width 41mm | ||
IP Rating IP20 | ||
Insulated PTC Yes | ||
Minimum Operating Temperature -45°C | ||
Mounting Position Vertical | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals UL, EAC, CE | ||
Series 7h | ||
Nominal Current 0.13A | ||
Frequency 60Hz | ||
- COO (Country of Origin):
- IT

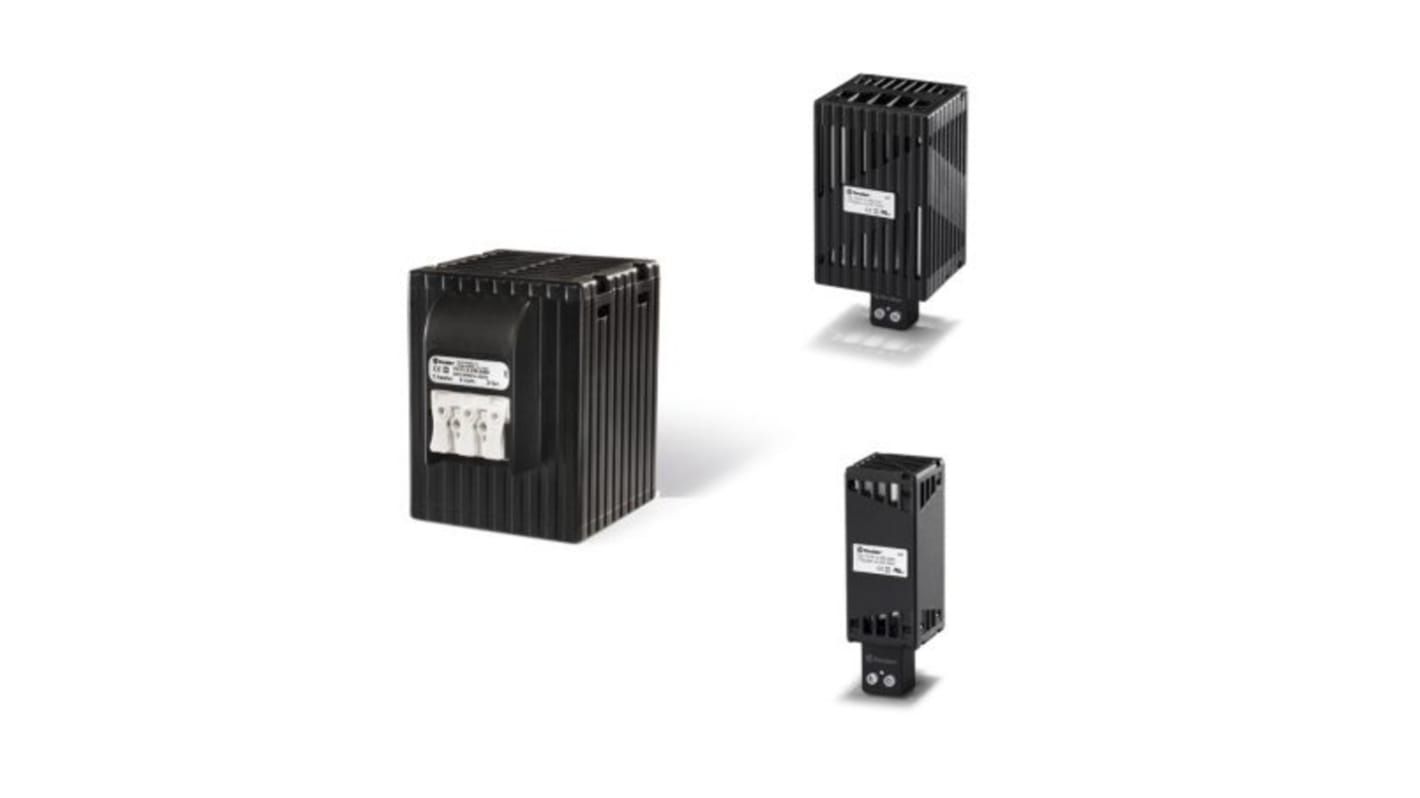

Finder Series 7H Enclosure Heater, 25W Power, 110 to 230V AC Voltage - 7H.51.0.230.0025
This enclosure heater is designed to provide effective heating for various applications. It operates at a power rating of 25W and functions within a supply voltage range of 110 to 230V AC. With dimensions of 125mm in height, 41mm in width, and a depth of 41mm, this compact device is suitable for efficient temperature maintenance.
Features & Benefits
• Self-regulating PTC resistor ensures consistent heating
• Safe-touch design prevents accidental burns
• Compatible with 35mm rail mounts for easy installation
• Wide operating temperature range from -45°C to +50°C
• Vertical fitting position optimises space efficiency
• Rugged plastic housing enhances durability and safety
Applications
• Ideal for maintaining temperature in electrical distribution panels
• Utilised in automatic car washes to prevent freezing
• Suitable for use in hoists and cranes
• Employed in drying kilns for efficient heat management
• Recommended for forced-air ventilators to enhance airflow
What type of voltage supply is needed for operation?
This heater requires a voltage supply within the range of 110 to 230V AC, making it versatile for different electrical systems.
How does the self-regulating heating mechanism work?
The self-regulating PTC resistor adjusts the heat output based on the ambient temperature, preventing overheating and ensuring reliable performance.
Can this heater be installed in an enclosed space?
Yes, it is designed to be safely mounted in cabinets, but ensure a minimum distance of 100mm from components above and below for optimal airflow.
Is this heater suitable for harsh environmental conditions?
With an operational range of -45°C to +50°C, it is built to perform reliably even in challenging conditions.
