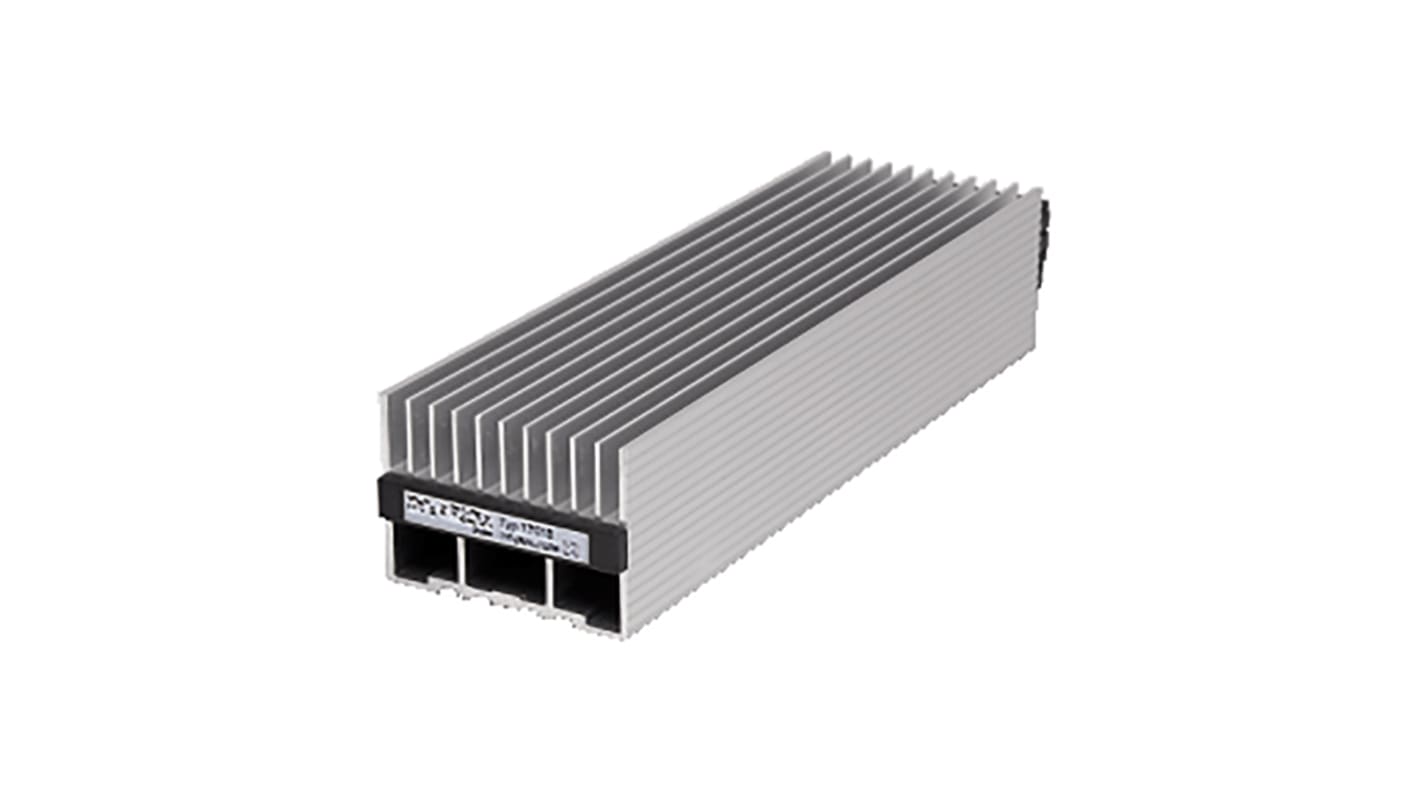

Schneider Electric Enclosure Heater, 110V ac, 250 V ac, 100W Output, 100W Input 85mm x 65 mm
- RS Stock No.:
- 177-8988
- Mfr. Part No.:
- NSYCR100WU2
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP6,674.18
(exc. VAT)
PHP7,475.08
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 12 unit(s) shipping from October 12, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP6,674.18 |
*price indicative
- RS Stock No.:
- 177-8988
- Mfr. Part No.:
- NSYCR100WU2
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Output Power | 100W | |
| Product Type | Enclosure Heater | |
| Input Power | 100W | |
| Supply Voltage | 110V ac, 250V ac | |
| Mount Type | DIN Rail | |
| Depth | 65mm | |
| Width | 85mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Mounting Position | Vertical | |
| Insulated PTC | Yes | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | VDE, REACH (Reference not containing SVHC above the threshold), RoHS (since 0940 - Schneider Electric Declaration ), UL | |
| Frequency | 60Hz | |
| Series | ClimaSys CR | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Output Power 100W | ||
Product Type Enclosure Heater | ||
Input Power 100W | ||
Supply Voltage 110V ac, 250V ac | ||
Mount Type DIN Rail | ||
Depth 65mm | ||
Width 85mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Mounting Position Vertical | ||
Insulated PTC Yes | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals VDE, REACH (Reference not containing SVHC above the threshold), RoHS (since 0940 - Schneider Electric Declaration ), UL | ||
Frequency 60Hz | ||
Series ClimaSys CR | ||
ClimaSys PTC heating resistance 100W 110-250V
