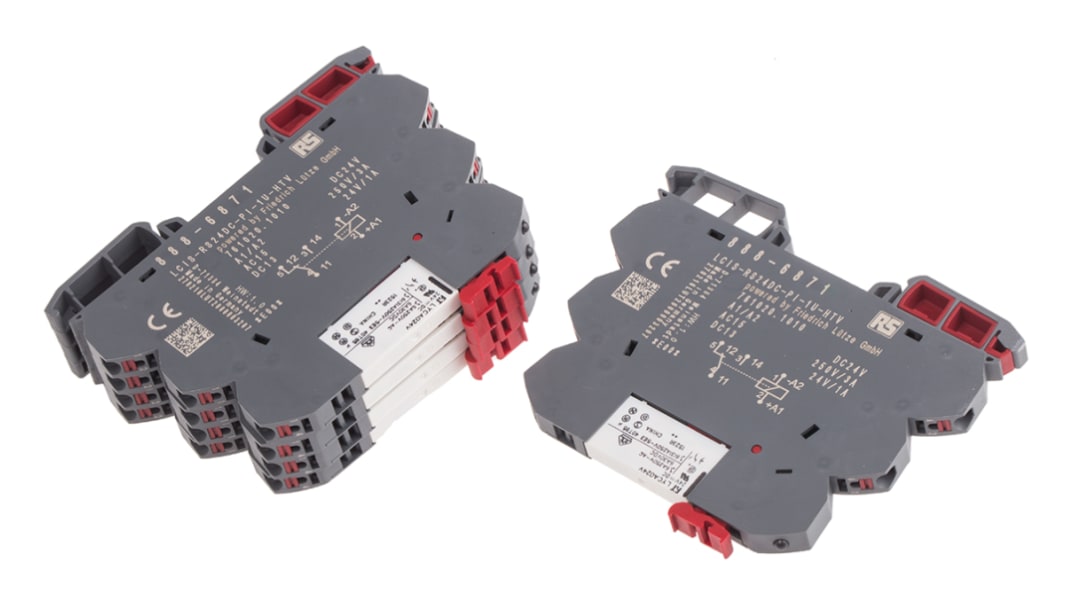

RS PRO LCIS Series Interface Relay, DIN Rail, 24 V dc Coil, SPDT

RS Stock No.:: 888-6871
Manufacturer:: RS PRO

RS PRO LCIS Series Interface Relay, DIN Rail, 24 V dc Coil, SPDT

Subtotal (1 pack of 5 units)*

PHP4,757.99

(exc. VAT)

PHP5,328.95

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

45 unit(s) ready to ship from another location
Plus 125 unit(s) shipping from April 09, 2026
Plus 250 unit(s) shipping from May 21, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Pack*
5 +	PHP951.598	PHP4,757.99

*price indicative

RS Stock No.:: 888-6871
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Interface Relay
	Coil Voltage	24 V dc
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Series	LCIS
	Terminal Type	Push-in
	Switching Current	6 A
	Minimum Operating Temperature	-25°C
	Switching DC Voltage	250 V dc
	Switching AC Voltage	250 V ac
	Contact Material	Silver Alloy
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS
	Height	93mm
	Length	6.2mm
	Width	76 mm

	Select all
	Brand RS PRO
	Product Type Interface Relay
	Coil Voltage 24 V dc
	Contact Configuration SPDT
	Mount Type DIN Rail
	Series LCIS
	Terminal Type Push-in
	Switching Current 6 A
	Minimum Operating Temperature -25°C
	Switching DC Voltage 250 V dc
	Switching AC Voltage 250 V ac
	Contact Material Silver Alloy
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS
	Height 93mm
	Length 6.2mm
	Width 76 mm

COO (Country of Origin):: DE

RS PRO 24 V DC SPDT Interface Relay Module, Push-In Terminal, DIN Rail

Need an industrial switch designed to open and close a circuit? Try this interface relay from RS PRO. A magnetic switch changes the relay from 'normally closed' (NC) to 'normally open' (NO) when it's turned on. This means it's an ideal solution for push-button applications, such as micro-controllers and keyboards.

The relay comes with a green light-emitting diode (LED) indicator, which makes it easy to identify when the component is on or off. Thanks to its broad operating temperature range of -25°C to +60°C, it's suitable for use in harsh environments.

This product can be used for current switching as well as for amplifying, controlling and measuring signals. This type of relay is often found in industrial machinery, automotive applications and telecommunication devices.

Features and Benefits

Interface application

Coil voltage of 24 V DC

SPDT (single pole double throw) contact configuration

Silver alloy contact material

Dimensions of 76 (depth) x 93 (height) x 6.2 mm (length)

Free-wheeling diode

Green LED indicator

Greater than 50,000,000 (Mechanical) operations life

Operating temperature range of -25°C to +60°C

Maximum switching voltage (AC) of 250 V

Maximum switching voltage (DC) of 250 V

DIN rail mounting

One pole

General-purpose relay switch

Meets Canadian Safety Association (CSA), Germanischer Lloyds (GL) and Underwriters' Laboratories (UL) safety standards

Switching current of 6 A

Push-in terminal type
