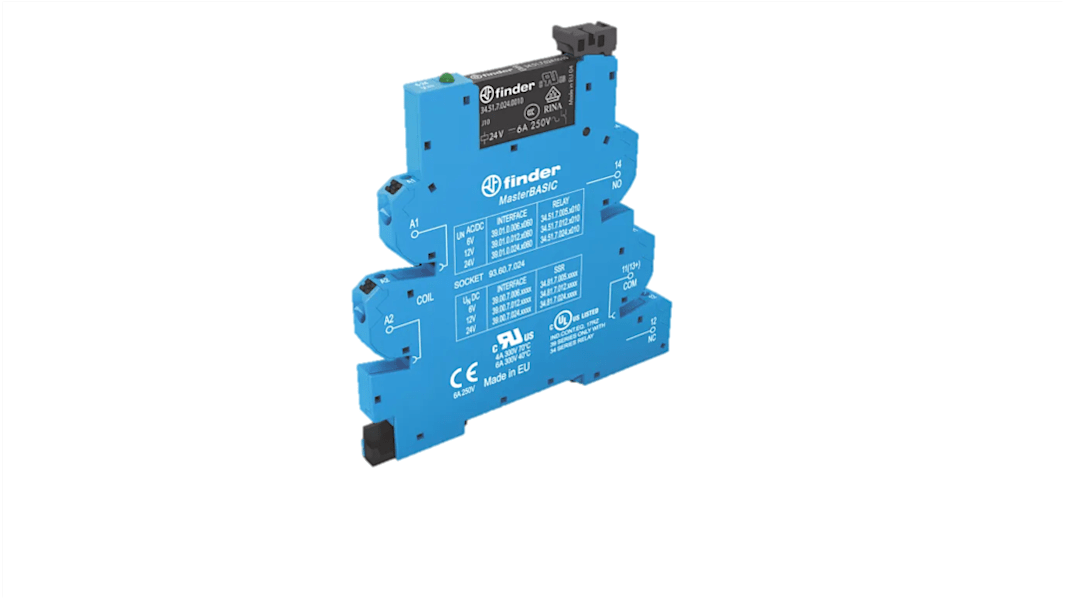

Finder 39 Series Electromechanical Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole

RS Stock No.:: 819-8805
Distrelec Article No.:: 301-05-963
Mfr. Part No.:: 39.01.0.024.0060
Manufacturer:: Finder

Finder 39 Series Electromechanical Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole

Subtotal (1 unit)*

PHP1,088.24

(exc. VAT)

PHP1,218.83

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

146 unit(s) ready to ship from another location
Plus 100 unit(s) shipping from January 30, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP1,088.24

*price indicative

RS Stock No.:: 819-8805
Distrelec Article No.:: 301-05-963
Mfr. Part No.:: 39.01.0.024.0060
Manufacturer:: Finder

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V ac/dc
	Contact Configuration	SPDT
	Mounting Type	DIN Rail
	Series	39 Series
	Number of Poles	1
	Maximum Input Voltage	26.4V ac/dc
	Minimum Input Voltage	19.2V ac/dc
	Switching Voltage	250 → 400V ac
	Terminal Type	Push In
	Depth	90.7mm
	Height	87mm
	Length	6.2mm
	Contact Material	Silver Alloy
	Input Current	11mA
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+70°C
	Dimensions	6.2 x 90.7 x 87mm
	Turn On Time	5ms
	Input Voltage Range	19.2 → 26.4V ac/dc
	Turn Off Time	6ms
	Operating Temperature Range	-40 → +70°C
	Life	10000000 Cycles
	Special Features	Protection category IP 20
	Standards Met	CE, EAC

	Select all
	Brand Finder
	Coil Voltage 24V ac/dc
	Contact Configuration SPDT
	Mounting Type DIN Rail
	Series 39 Series
	Number of Poles 1
	Maximum Input Voltage 26.4V ac/dc
	Minimum Input Voltage 19.2V ac/dc
	Switching Voltage 250 → 400V ac
	Terminal Type Push In
	Depth 90.7mm
	Height 87mm
	Length 6.2mm
	Contact Material Silver Alloy
	Input Current 11mA
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +70°C
	Dimensions 6.2 x 90.7 x 87mm
	Turn On Time 5ms
	Input Voltage Range 19.2 → 26.4V ac/dc
	Turn Off Time 6ms
	Operating Temperature Range -40 → +70°C
	Life 10000000 Cycles
	Special Features Protection category IP 20
	Standards Met CE, EAC

COO (Country of Origin):: IT

Finder Series 39 Interface Relay, 24V AC/DC Coil Voltage, SPDT Contact Configuration - 39.01.0.024.0060

This electromechanical interface relay is designed for automation and control applications in the electrical and mechanical industries. Operating at a coil voltage of 24 V AC/DC, it meets the demands of contemporary electronic systems with a focus on safety and efficiency.

Features & Benefits

• SPDT contact configuration enables flexible circuit control
• Push-in terminal design simplifies wiring and assembly
• Input voltage range accommodates diverse operational needs
• IP20 protection rating ensures safety in non-hazardous environments
• 5ms turn-on time enhances responsiveness
• Silver alloy contacts provide durability and reliable connectivity

Applications

• Ideal for automation control systems
• Suitable for switching high voltage
• Effective for circuit protection and interfacing tasks
• Used in industrial control panels
• Integrated within relay modules for various electrical devices

What is the maximum input voltage compatible with this device?

It can manage a maximum input voltage of 26.4 V AC/DC.

How does the turn-on time affect performance?

A turn-on time of 5ms allows for prompt responses in control applications.

Can it be used in outdoor environments?

No, this device is not advised for outdoor use due to its IP20 protection rating.

What type of mounting does this relay require?

It is designed for straightforward installation on DIN rail systems.

Is this relay suitable for high voltage applications?

Yes, it is effective for switching voltages ranging from 250 to 400 V AC.
