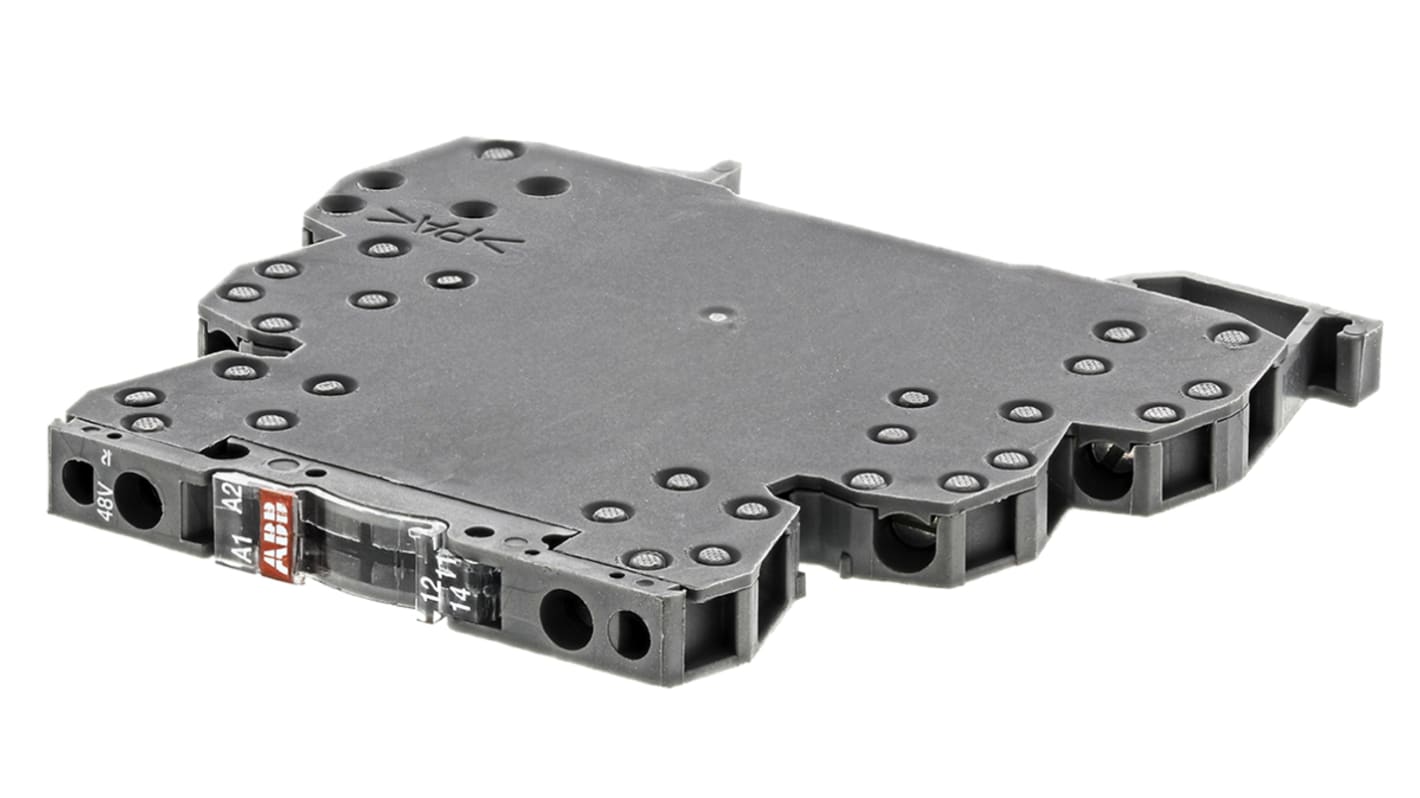

ABB R600 Series Interface Relay, DIN Rail Mount, 48V ac/dc Coil, SPDT, 6A Load
- RS Stock No.:
- 670-0006
- Mfr. Part No.:
- 1SNA645006R0000 RB121G-48-60VUC
- Manufacturer:
- ABB
Bulk discount available
Subtotal (1 unit)*
PHP1,602.70
(exc. VAT)
PHP1,795.02
(inc. VAT)
Add 2 units to get free delivery
In Stock
- 273 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 5 | PHP1,602.70 |
| 6 - 11 | PHP1,536.08 |
| 12 + | PHP1,512.16 |
*price indicative
- RS Stock No.:
- 670-0006
- Mfr. Part No.:
- 1SNA645006R0000 RB121G-48-60VUC
- Manufacturer:
- ABB
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 48V ac/dc | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Series | R600 | |
| Load Current Rating | 6A | |
| Maximum Input Voltage | 250V ac | |
| Switching Voltage | 5 V → 250V ac | |
| Terminal Type | Screw | |
| Depth | 6mm | |
| Height | 75mm | |
| Length | 70mm | |
| Input Current | 7 mA, 9mA | |
| Turn On Time | 5ms | |
| Turn Off Time | 8ms | |
| Operating Temperature Range | -20 → +70°C | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Dimensions | 70 x 6 x 75mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 48V ac/dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Series R600 | ||
Load Current Rating 6A | ||
Maximum Input Voltage 250V ac | ||
Switching Voltage 5 V → 250V ac | ||
Terminal Type Screw | ||
Depth 6mm | ||
Height 75mm | ||
Length 70mm | ||
Input Current 7 mA, 9mA | ||
Turn On Time 5ms | ||
Turn Off Time 8ms | ||
Operating Temperature Range -20 → +70°C | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Dimensions 70 x 6 x 75mm | ||
- COO (Country of Origin):
- TN
Interface Relay - R600 Series
ABB R600 series interface relays are used for electrical isolation, amplification and signal matching between a PLC, PC or field bus system and the sensor/actuator level. The compact design and different connection terminal possibilities optimise your panel installation.
Features and Benefits
Screw or spring type terminals
Wide range of output options
Built in RC circuit
Leakage current protection on the input side
Available with visible or covered switch
Manual or automatic actuation
LED for the indication of the operational state
