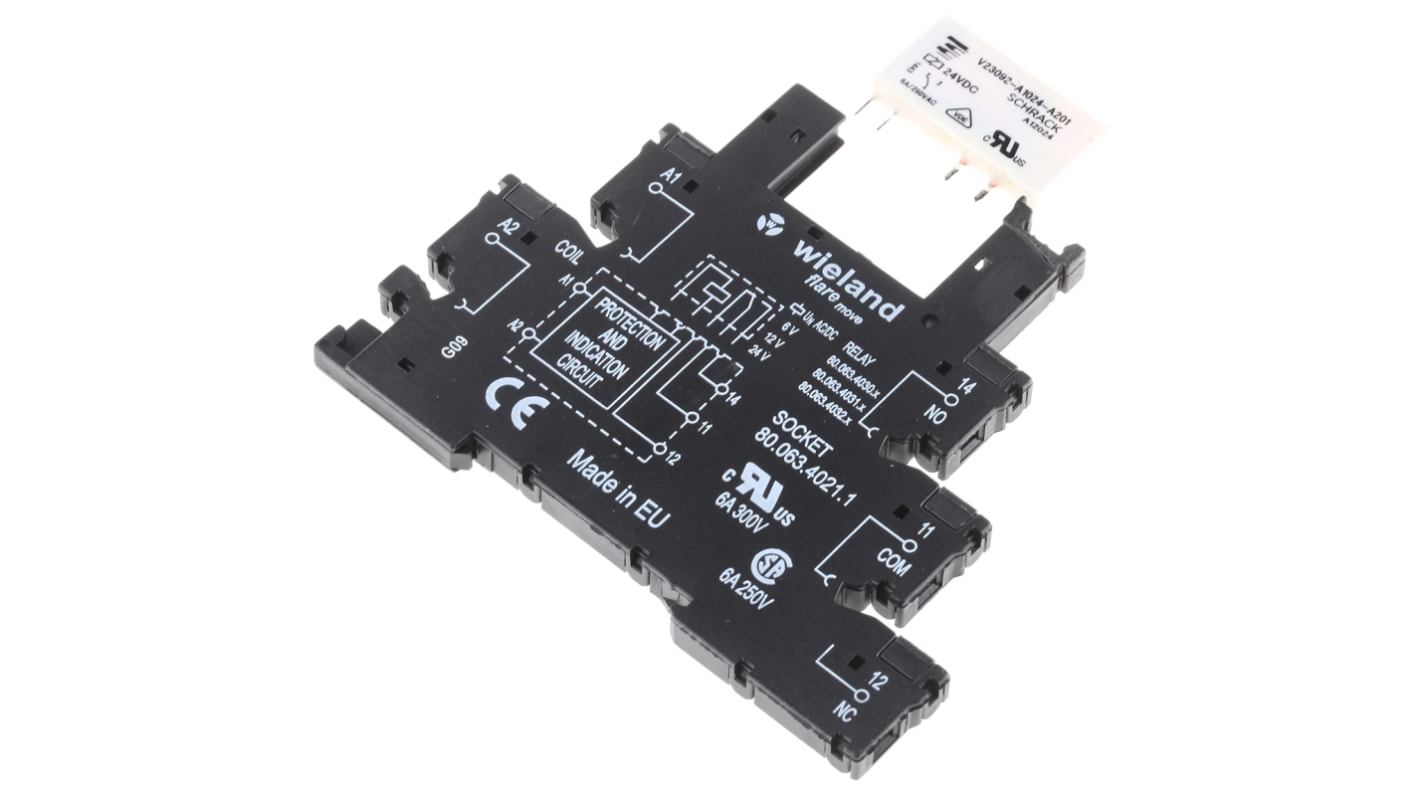

    Wieland DIN Rail Mount Interface Relay, 24V ac/dc Coil, SPDT

    RS Stock No.:
    469-4255
    Mfr. Part No.:
    80.010.4522.1
    Manufacturer:
    Wieland
    Wieland
    View this category
    32 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
    Add to Basket
    units

    Added

    Price Each

    PHP978.66

    (exc. VAT)

    PHP1,096.10

    (inc. VAT)

    unitsPer Unit
    1 - 9PHP978.66
    10 - 19PHP939.51
    20 +PHP900.37
    RS Stock No.:
    469-4255
    Mfr. Part No.:
    80.010.4522.1
    Manufacturer:
    Wieland
    COO (Country of Origin):
    DE

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Relay Module Plug-In MOVE


    DIN rail mounting and only 6.2mm wide
    Replaceable relay
    Jumper comb
    Status LED
    Marking facility
    Available as high load silver contacts '0' and Gold Flashed low current '1'

    Approvals

    UL and CSA

    Relay Module Flare MOVE 24 V


    From the Flare MOVE Series this standard relay module is both pluggable and compact and can be mounted on to a DIN rail for use in a number of industrial applications.

    Features and Benefits


    • Pluggable coupling relay
    • Operating voltage 24 V AC/DC
    • 1 change over contact 6A
    • Rated voltage 250 V
    • DIN rail mounting
    • Relay module has a mounting width of 6.2 mm
    • Wide operating temperature of between -40 to +55 °C


    Specifications

    AttributeValue
    Coil Voltage24V ac/dc
    Minimum Input Voltage18V dc
    Maximum Input Voltage28.8V dc
    Contact ConfigurationSPDT
    Mounting TypeDIN Rail
    Terminal TypeScrew
    Length76mm
    Seriesflare
    Depth6.2mm
    Height88mm
    Contact MaterialGold Plated
    Input Current12mA
    Number of Poles1
    Turn On Time7ms
    Turn Off Time11ms
    Maximum Operating Temperature+55°C
    Dimensions76 x 6.2 x 88mm
    Operating Temperature Range-40 → +55°C
    Standards MetCSA, UL
    Minimum Operating Temperature-40°C
    Input Voltage Range18 → 28.8V ac/dc
    Relay Switching ClassificationInterface Relay Module
