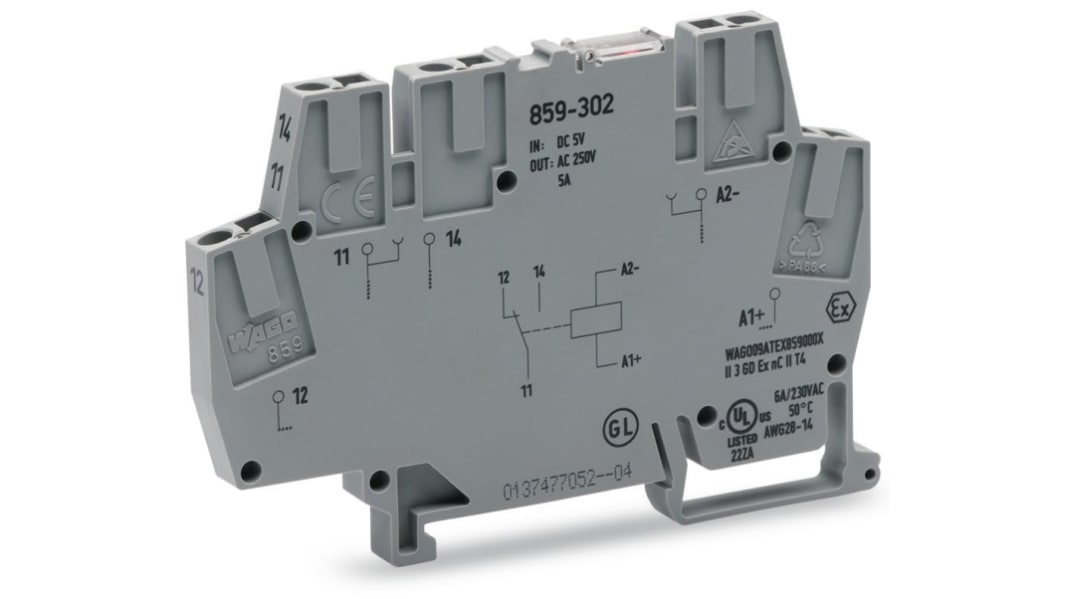

WAGO 859 Series Relay Module, DIN Rail, 5V dc Coil, SPDT, 31mA
- RS Stock No.:
- 279-2562
- Mfr. Part No.:
- 859-302
- Manufacturer:
- WAGO
Subtotal (1 box of 10 units)*
PHP20,746.36
(exc. VAT)
PHP23,235.92
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per Unit* |
|---|---|---|
| 1 + | PHP20,746.36 | PHP2,074.636 |
*price indicative
- RS Stock No.:
- 279-2562
- Mfr. Part No.:
- 859-302
- Manufacturer:
- WAGO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Relay Module | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | 859 | |
| Terminal Type | Cage Clamp | |
| Switching DC Voltage | 5V dc | |
| Coil Current | 31mA | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C | |
| Contact Material | Silver Tin Oxide | |
| Length | 56mm | |
| Width | 6mm | |
| Standards/Approvals | EN 61010-2-201, UL 508, EN 61810-1, EN 61373, DNV | |
| Height | 91mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Relay Module | ||
Coil Voltage 5V dc | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series 859 | ||
Terminal Type Cage Clamp | ||
Switching DC Voltage 5V dc | ||
Coil Current 31mA | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 70°C | ||
Contact Material Silver Tin Oxide | ||
Length 56mm | ||
Width 6mm | ||
Standards/Approvals EN 61010-2-201, UL 508, EN 61810-1, EN 61373, DNV | ||
Height 91mm | ||
- COO (Country of Origin):
- DE
The WAGO relay module features cage clamp connection technology and its contacts made from silver alloy.
Mounting type DIN-35 rail
RoHS compliant
