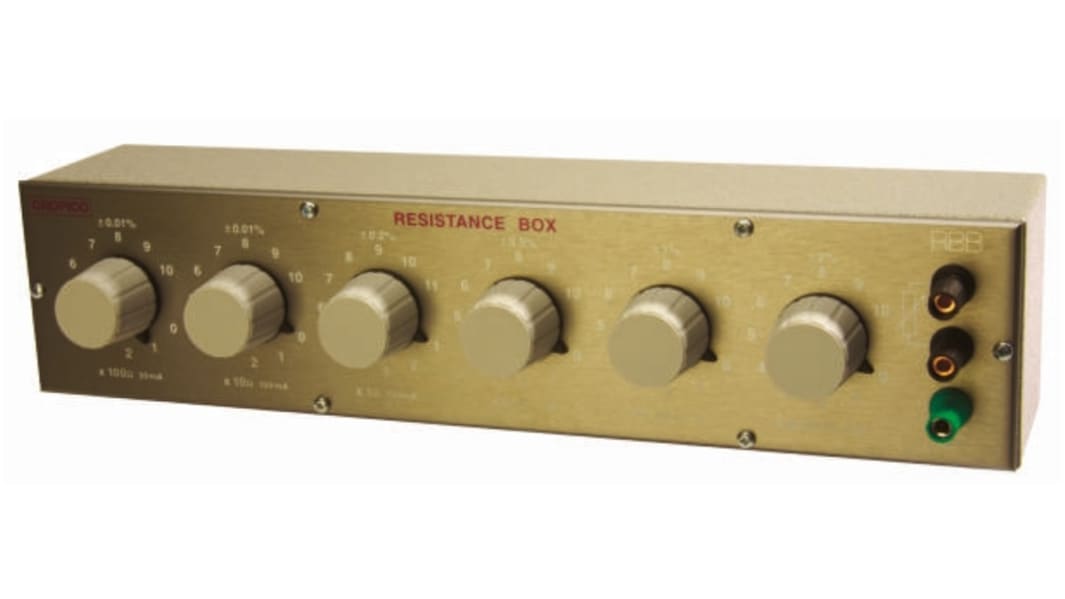

Cropico RBB6-F Decade Box, Decade Box Type Resistance, Resistance Resolution 10Ω

  • RS Stock No. 671-8895
  • Mfr. Part No. RBB6-F
  • Manufacturer Cropico
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): GB
Product Details

Calibration/Substitution, High Accuracy 6 Decade Resistance Box

Compact, durable case of encapsulated moulded epoxy
Constructed using low temperature coefficient resistor wire and gold plated contact switches
Particularly suitable for use in electrical and electronic industrial laboratories
Required resistance selected by the 6 rotary switches
The -B and -C models are suitable for pt100 simulation

Specifications
Attribute Value
Decade Box Type Resistance
Resistance Resolution 10Ω
Best Maximum Resistance Accuracy ±0.1%
Best Minimum Resistance Accuracy ±0.05%
Residual Resistance 0.013Ω
Power Rating 0.33W
Temperature Coefficient ±3 ppm/°C, ±5 ppm/°C
Dimensions 80 x 350 x 100mm
Height 100mm
Minimum Operating Temperature -50°C
Maximum Operating Temperature +125°C
Minimum Resistance Measurement 10Ω
Width 350mm
Absolute Maximum Resistance Measurement 1MΩ
Length 80mm
Weight 600g
2 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 70,284.54
(exc. VAT)
PHP 78,718.68
(inc. VAT)
units
Per Unit
1 +
PHP70,284.54
