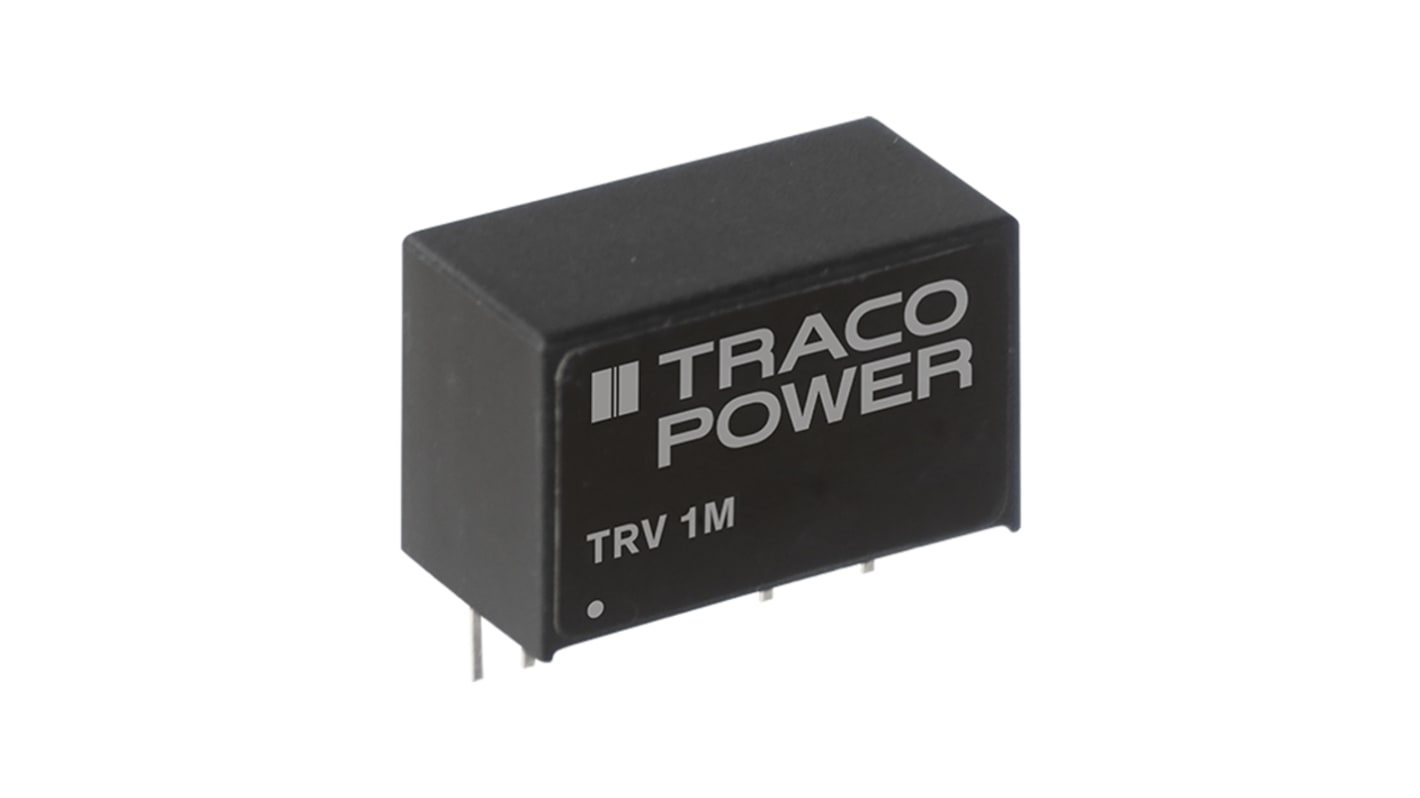

TRACOPOWER TRV DC-DC Converter, 12V dc/ 42mA Output, 19.2 → 28.8 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 209-9913
- Mfr. Part No.:
- TRV 1-2422M
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 5 units)**
PHP4,995.54
(exc. VAT)
PHP5,595.00
(inc. VAT)
Available for back order.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for over PHP3,000.00 (ex VAT)
Tube(s) | Per Tube | Per Unit** |
|---|---|---|
| 1 - 1 | PHP4,995.54 | PHP999.108 |
| 2 - 3 | PHP4,885.63 | PHP977.126 |
| 4 + | PHP4,780.72 | PHP956.144 |
**price indicative
- RS Stock No.:
- 209-9913
- Mfr. Part No.:
- TRV 1-2422M
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 19.2 → 28.8 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 42mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | 12 V dc -12V dc | |
| Package | SIP | |
| Isolation Voltage | 5kV | |
| Width | 9.8mm | |
| Depth | 12.5mm | |
| Length | 19.6mm | |
| Series | TRV | |
| Load Regulation | 0.07 | |
| Efficiency | 0.81 | |
| Medical Approved | Yes | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 19.2 → 28.8 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 42mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range 12 V dc -12V dc | ||
Package SIP | ||
Isolation Voltage 5kV | ||
Width 9.8mm | ||
Depth 12.5mm | ||
Length 19.6mm | ||
Series TRV | ||
Load Regulation 0.07 | ||
Efficiency 0.81 | ||
Medical Approved Yes | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
