TRACOPOWER TRV DC/DC Converter, 15V dc/ 67 mA, 28.8V dc Input, 19.2V Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min
- RS Stock No.:
- 209-9910
- Distrelec Article No.:
- 302-24-998
- Mfr. Part No.:
- TRV 1-2413M
- Manufacturer:
- TRACOPOWER

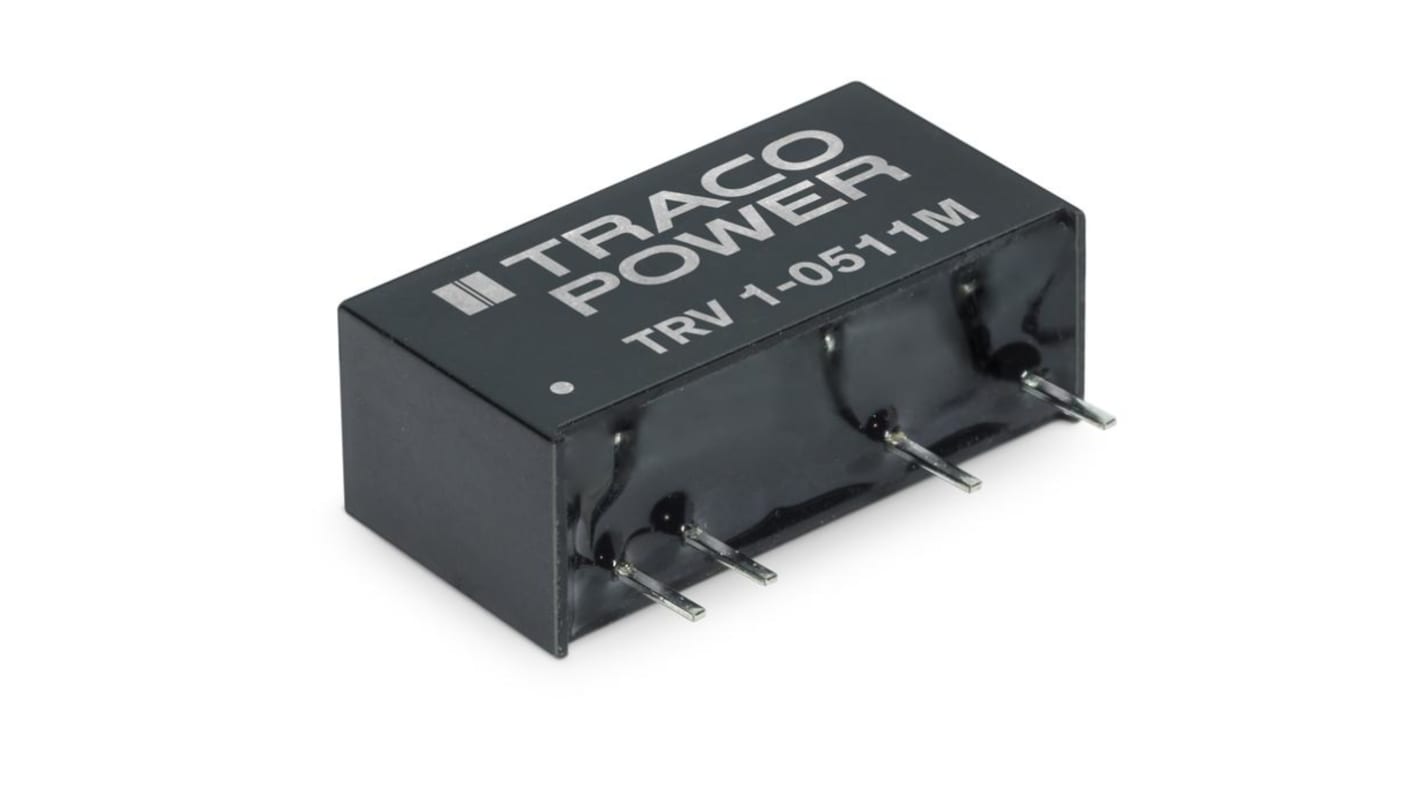

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP923.92
(exc. VAT)
PHP1,034.79
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Temporarily out of stock
- Shipping from February 10, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 1 | PHP923.92 |
| 2 - 2 | PHP914.40 |
| 3 + | PHP905.75 |
*price indicative
- RS Stock No.:
- 209-9910
- Distrelec Article No.:
- 302-24-998
- Mfr. Part No.:
- TRV 1-2413M
- Manufacturer:
- TRACOPOWER
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 15V dc | |
| Minimum Input Voltage | 19.2V | |
| Maximum Input Voltage | 28.8V dc | |
| Output Current 1 | 67mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 19360000h | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | 15 V dc | |
| Number of Pins | 5 | |
| Isolation Voltage | 5kV | |
| Maximum Output Power | 1W | |
| Package Type | SIP | |
| Series | TRV | |
| Depth | 12.5mm | |
| Length | 19.6mm | |
| Weight | 4.8g | |
| Standards/Approvals | RoHS | |
| Width | 9.8mm | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 83% | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 15V dc | ||
Minimum Input Voltage 19.2V | ||
Maximum Input Voltage 28.8V dc | ||
Output Current 1 67mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 19360000h | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range 15 V dc | ||
Number of Pins 5 | ||
Isolation Voltage 5kV | ||
Maximum Output Power 1W | ||
Package Type SIP | ||
Series TRV | ||
Depth 12.5mm | ||
Length 19.6mm | ||
Weight 4.8g | ||
Standards/Approvals RoHS | ||
Width 9.8mm | ||
Minimum Operating Temperature -40°C | ||
Efficiency 83% | ||
Maximum Operating Temperature 85°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TRV Series DC-DC Converter, 15V DC Output Voltage, 1W Power Rating - TRV 1-2413M
This isolated DC-DC converter offers dependable power solutions for a range of applications, especially in medical and industrial contexts. With a nominal output of 15 V dc, it converts input voltages from 19.2 to 28.8 V DC, making it a flexible component for stable power delivery in electronic interfaces. Its compact SIP-9 package facilitates straightforward PCB mounting, enhancing its use in space-limited environments.
Features & Benefits
• I/O isolation of 5 kV enhances safety for medical applications
• Short circuit protection promotes longevity and dependability
• Efficiency rating of 83% optimises energy use
• Operating temperature range from -40 to +95°C accommodates diverse environments
• Low leakage current below 2 μA safeguards sensitive connections
• Semi-regulated output balances performance and cost-effectiveness
Applications
• Used in medical devices that require strict safety standards
• Suitable for automation systems needing stable power regulation
• Ideal for electronic equipment with size constraints
• Appropriate for industrial settings due to its extensive temperature range
How does it ensure safety in medical applications?
It complies with IEC/EN 60601-1 standards, providing reinforced isolation and short circuit protection, which are essential for patient safety.
What mounting options are available?
It features a PCB mount design in a compact SIP-9 package, suitable for various board configurations.
Can this converter function in high-altitude environments?
Yes, it operates reliably at altitudes of up to 5000 m, making it suitable for a variety of geographical applications.
What requirements are needed to maintain optimal efficiency?
To sustain high efficiency, ensure operation within the specified input voltage range and consider environmental factors such as temperature and airflow.
