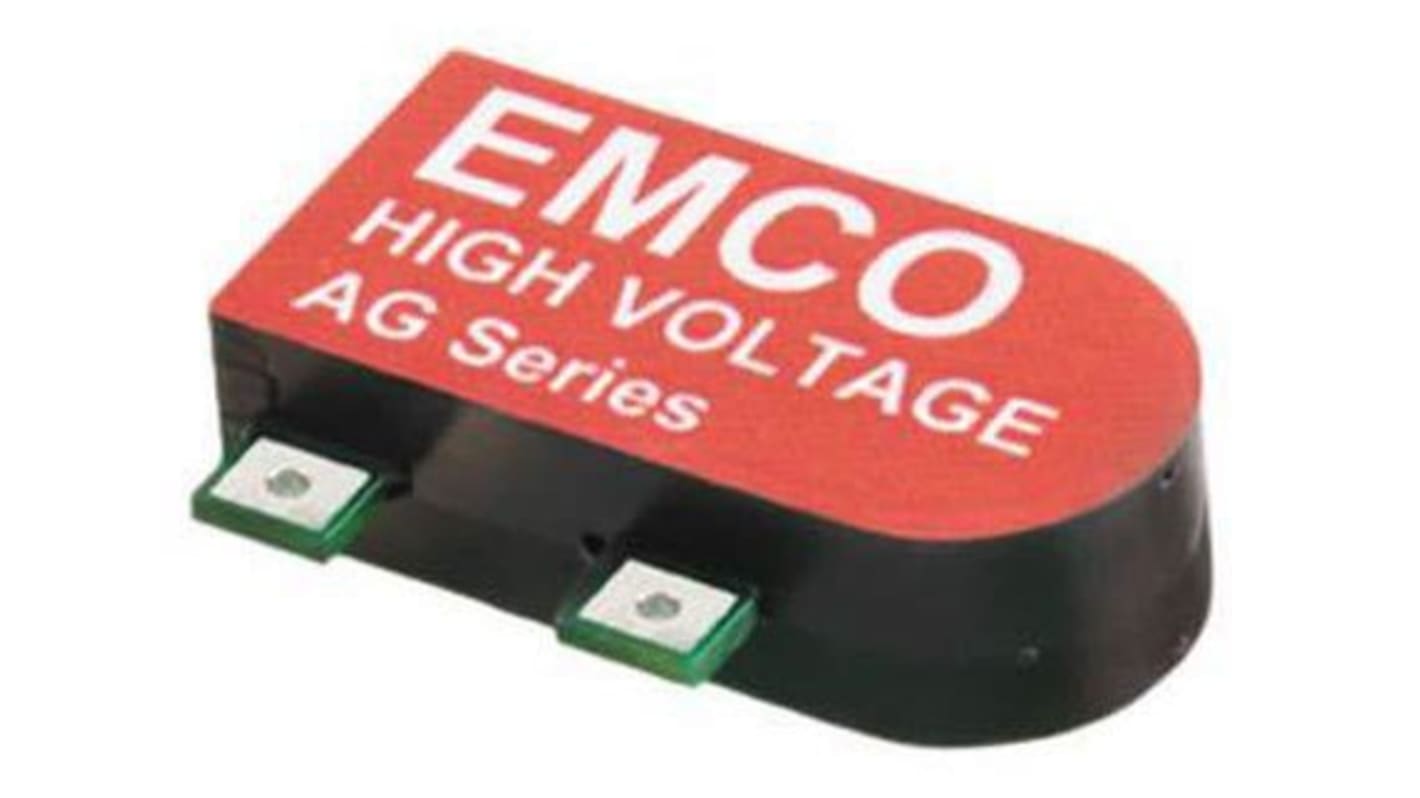

XP Power AG DC-DC Converter, 200V dc/ 5mA Output, 0 → 5 V dc Input, 1W, Surface Mount, +75°C Max Temp -25°C Min

RS Stock No.:: 123-8316
Distrelec Article No.:: 302-24-335
Mfr. Part No.:: AG02P-5
Manufacturer:: XP Power

XP Power AG DC-DC Converter, 200V dc/ 5mA Output, 0 → 5 V dc Input, 1W, Surface Mount, +75°C Max Temp -25°C Min

Bulk discount available

Subtotal (1 unit)*

PHP6,831.23

(exc. VAT)

PHP7,650.98

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Limited stock

2 left, ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	PHP6,831.23
5 - 9	PHP6,626.30
10 - 24	PHP6,427.49
25 - 49	PHP6,284.74
50 +	PHP6,148.12

*price indicative

RS Stock No.:: 123-8316
Distrelec Article No.:: 302-24-335
Mfr. Part No.:: AG02P-5
Manufacturer:: XP Power

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	XP Power
	Output Voltage	200V dc
	Input Voltage Range	0 → 5 V dc
	Power Rating	1W
	Input Voltage Nominal	5 V dc
	Output Current	5mA
	Mounting Type	Surface Mount
	Isolated	Yes
	Number of Outputs	1
	Output Voltage Adjustment Range	±10%
	Package	SMD
	Isolation Voltage	500V
	Width	17.53mm
	Length	23.37mm
	Series	AG
	Maximum Temperature	+75°C
	Minimum Temperature	-25°C

	Select all
	Brand XP Power
	Output Voltage 200V dc
	Input Voltage Range 0 → 5 V dc
	Power Rating 1W
	Input Voltage Nominal 5 V dc
	Output Current 5mA
	Mounting Type Surface Mount
	Isolated Yes
	Number of Outputs 1
	Output Voltage Adjustment Range ±10%
	Package SMD
	Isolation Voltage 500V
	Width 17.53mm
	Length 23.37mm
	Series AG
	Maximum Temperature +75°C
	Minimum Temperature -25°C

Datasheet

COO (Country of Origin):: US

XP Power Isolated DC to High Voltage DC Converters A Series

The A Series power isolated DC to high voltage DC converters are ultra miniature. These converters are ideal for applications where minimal size and weight are required.

Features and Benefits

Input/Output proportional
Quasi-sinewave Oscillator
Control Pin
Current - Low leakage
Low Output/Input Capacitance
Galvanic Input to Output isolation
1 minute minimum short circuit protection
No minimum load required ²
External componenents not required

Applications

Avalanche photodiodes
Capacitor charging
Electrophoresis
Photomultiplier tubes
Piezo Devices
Mass spectrometry
Sustaining Ion pumps

Standards

UL, RoHS

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Isolated DC to High Voltage DC Converters
