ROHM BD9E202FP4-ZTL, 1-Channel DC/DC Converter, Adjustable, 22.4V, 700 mV, 2 A 6-Pin, TSOT-23-6CJ
- RS Stock No.:
- 265-436
- Mfr. Part No.:
- BD9E202FP4-ZTL
- Manufacturer:
- ROHM

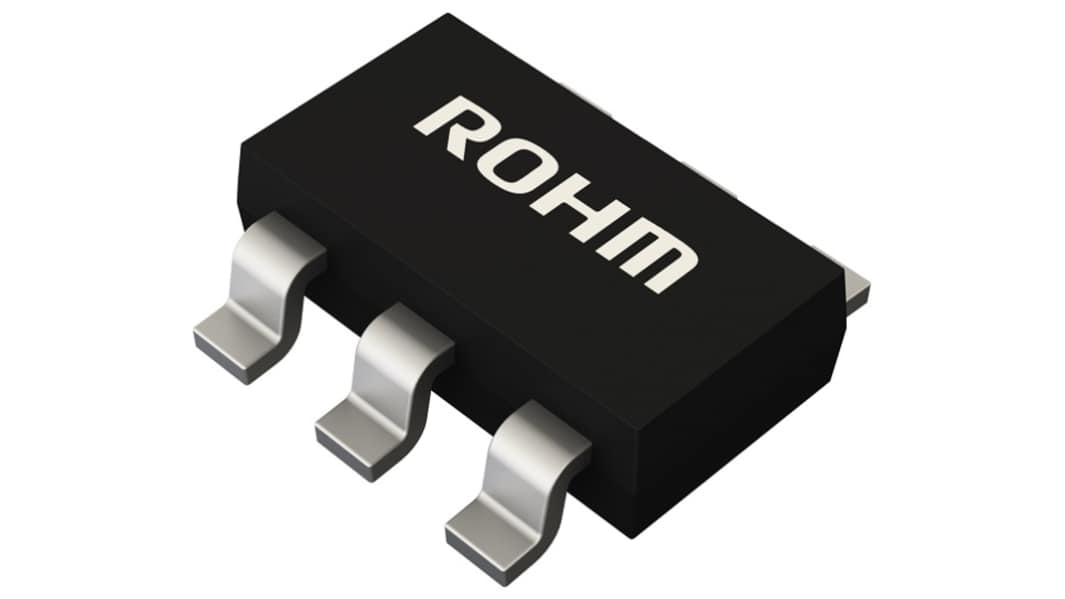

This image is representative of the product range
Get a bulk buy discount
Add 100 more to save 2%
View bulk pricing optionsSubtotal (1 tape of 10 units)*
PHP584.50
(exc. VAT)
PHP654.60
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 90 unit(s) shipping from November 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tape* | Saving |
|---|---|---|---|
| 10 - 90 | PHP58.45 | PHP584.50 | - |
| 100 - 240 | PHP56.697 | PHP566.97 | 2% |
| 250 - 490 | PHP54.996 | PHP549.96 | 5% |
| 500 - 990 | PHP53.346 | PHP533.46 | 8% |
| 1000 + | PHP51.746 | PHP517.46 | 11% |
*price indicative
- RS Stock No.:
- 265-436
- Mfr. Part No.:
- BD9E202FP4-ZTL
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | DC/DC Converter | |
| Maximum Output Voltage | 22.4V | |
| Minimum Input Voltage | 4.5V | |
| Maximum Input Voltage | 28V | |
| Minimum Output Current | 2A | |
| Maximum Output Current | 2A | |
| Number of Outputs | 1 | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 590kHz | |
| Minimum Operating Temperature | -40°C | |
| Package Type | TSOT-23-6CJ | |
| Pin Count | 6 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Width | 2.8mm | |
| Series | BD9E202FP4-Z | |
| Length | 2.9mm | |
| Height | 1.1mm | |
| Minimum Output Voltage | 700mV | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type DC/DC Converter | ||
Maximum Output Voltage 22.4V | ||
Minimum Input Voltage 4.5V | ||
Maximum Input Voltage 28V | ||
Minimum Output Current 2A | ||
Maximum Output Current 2A | ||
Number of Outputs 1 | ||
Topology Buck | ||
Output Type Adjustable | ||
Maximum Switching Frequency 590kHz | ||
Minimum Operating Temperature -40°C | ||
Package Type TSOT-23-6CJ | ||
Pin Count 6 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Width 2.8mm | ||
Series BD9E202FP4-Z | ||
Length 2.9mm | ||
Height 1.1mm | ||
Minimum Output Voltage 700mV | ||
Automotive Standard No | ||
The ROHM Single synchronous buck DC/DC converter with built in low on resistance power MOSFETs. The Light Load Mode control provides excellent efficiency characteristics in light load conditions, which make the product ideal for equipment, and devices that demand minimal standby power consumption. It is a current mode control DC/DC converter and features good transient response. It includes internal phase compensation. It achieves the high power density and offers a small footprint on the PCB by employing small package.
Light load mode control
Frequency spread spectrum
Internal phase compensation
Over voltage protection
Over current protection
Short circuit protection
Thermal shutdown protection
Under voltage lockout protection
Reduced external diode
