Epson 26 MHz Crystal Unit ±10 ppm SMT 4-Pin 0.35 mm 1.6 mm 1.2 mm
- RS Stock No.:
- 205-3395
- Mfr. Part No.:
- X1E000251001412
- Manufacturer:
- Epson

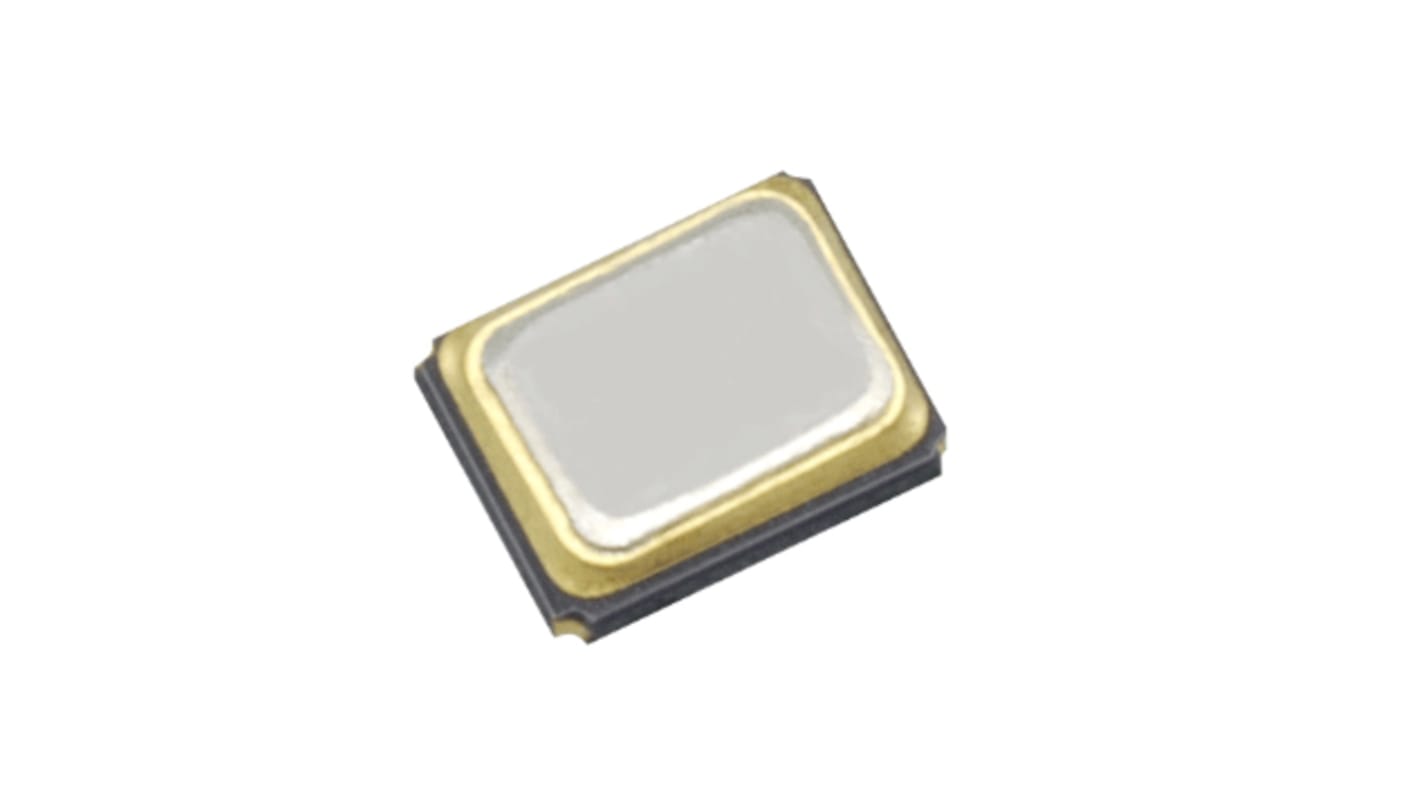

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 205-3395
- Mfr. Part No.:
- X1E000251001412
- Manufacturer:
- Epson
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Epson | |
| Product Type | Crystal Unit | |
| Standard Frequency | 26MHz | |
| Mount Type | Surface Mount | |
| Load Capacitance | 9pF | |
| Packaging | 3000 pieces per Reel | |
| Package Type | SMT | |
| Pin Count | 4 | |
| Length | 1.6mm | |
| Width | 1.2 mm | |
| Height | 0.35mm | |
| Frequency Tolerance | ±10 ppm | |
| Frequency Stability | -12 to 12 ppm | |
| Minimum Operating Temperature | -40°C | |
| Series Resistance | 200Ω | |
| Maximum Operating Temperature | 105°C | |
| Series | FA-118T | |
| Standards/Approvals | EU RoHS Directive | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Epson | ||
Product Type Crystal Unit | ||
Standard Frequency 26MHz | ||
Mount Type Surface Mount | ||
Load Capacitance 9pF | ||
Packaging 3000 pieces per Reel | ||
Package Type SMT | ||
Pin Count 4 | ||
Length 1.6mm | ||
Width 1.2 mm | ||
Height 0.35mm | ||
Frequency Tolerance ±10 ppm | ||
Frequency Stability -12 to 12 ppm | ||
Minimum Operating Temperature -40°C | ||
Series Resistance 200Ω | ||
Maximum Operating Temperature 105°C | ||
Series FA-118T | ||
Standards/Approvals EU RoHS Directive | ||
Automotive Standard No | ||
The Epson FA-118T series crystal has a nominal frequency range of 24 MHz to 54 MHz The applications include mobile phone, Bluetooth, W-LAN, ISM band radio, clock for MPU. The crystal unit is a surface mount crystal.
Operating Temperature Range: -40°C to +85 °C
Pb Free
RoHS Compliant
