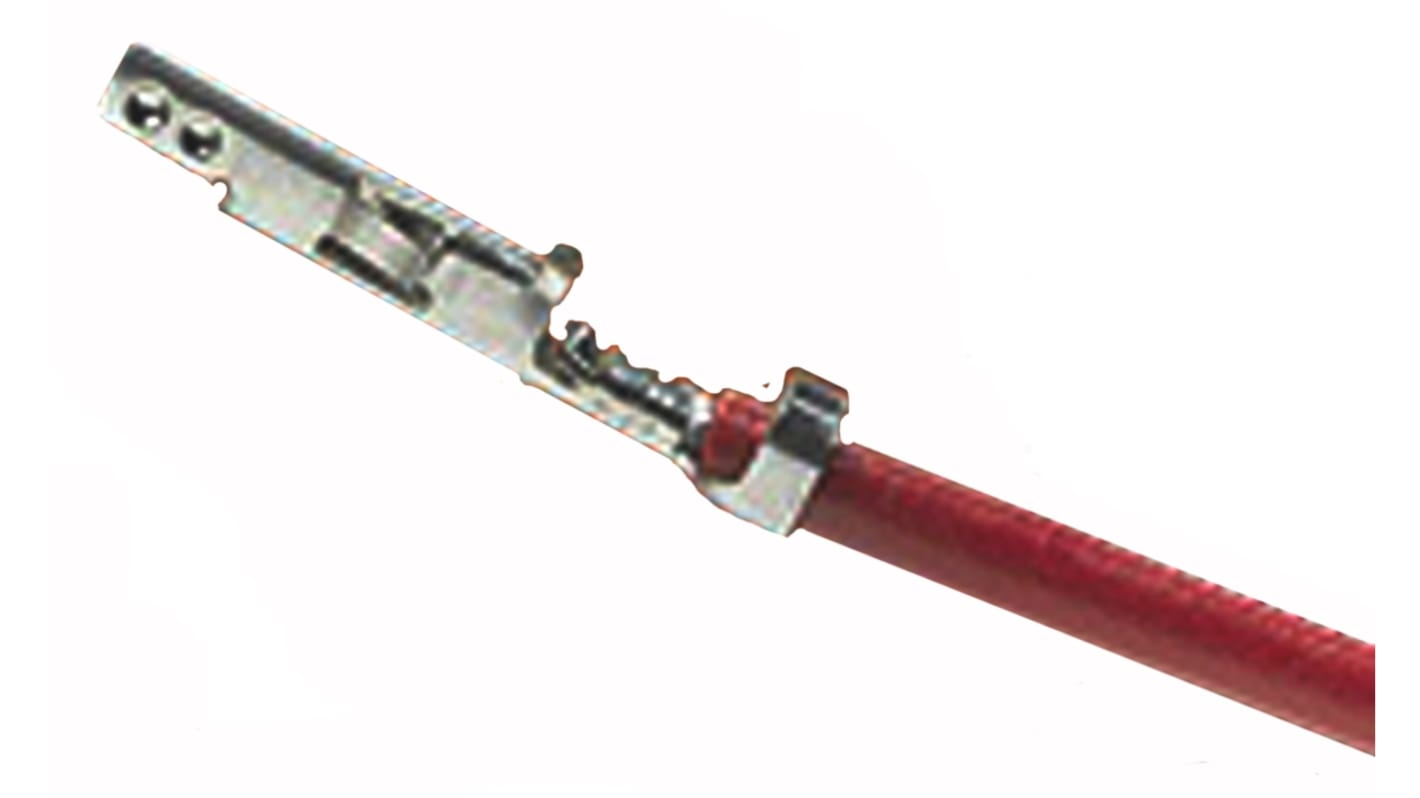

Molex Mini-Fit Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max

RS Stock No.:: 821-5752
Distrelec Article No.:: 304-09-695
Mfr. Part No.:: 39-00-0074
Manufacturer:: Molex

Molex Mini-Fit Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max

Bulk discount available

Subtotal (1 pack of 25 units)*

PHP480.15

(exc. VAT)

PHP537.775

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

10,675 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Pack*
25 - 475	PHP19.206	PHP480.15
500 - 1850	PHP17.938	PHP448.45
1875 - 7475	PHP16.825	PHP420.63
7500 - 14975	PHP16.134	PHP403.35
15000 +	PHP15.538	PHP388.45

*price indicative

RS Stock No.:: 821-5752
Distrelec Article No.:: 304-09-695
Mfr. Part No.:: 39-00-0074
Manufacturer:: Molex

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	Product Type	Crimp Terminal
	For Use With	Mini-Fit Jr Connector Housing
	Current	9A
	Series	Mini-Fit
	Minimum Wire Size AWG	24 AWG
	Contact Plating	Gold
	Maximum Wire Size AWG	18 AWG
	Contact Material	Brass
	Maximum Contact Resistance	10mΩ
	Termination Type	Crimp
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Standards/Approvals	No

	Select all
	Brand Molex
	Gender Female
	Product Type Crimp Terminal
	For Use With Mini-Fit Jr Connector Housing
	Current 9A
	Series Mini-Fit
	Minimum Wire Size AWG 24 AWG
	Contact Plating Gold
	Maximum Wire Size AWG 18 AWG
	Contact Material Brass
	Maximum Contact Resistance 10mΩ
	Termination Type Crimp
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Standards/Approvals No

COO (Country of Origin):: US

Molex Crimp Terminal, 24 to 18AWG Wire Sizes, Pack of 25 - 5556 Series - 39-00-0074

Need to hook new devices up to your PCB? Make the link with this Molex crimp terminal. The highly conductive brass body is plated in gold and tin to let signals flow freely and keep processes running without a hitch. Installing the unit is quick and easy, thanks to its crimp mounting method. As the terminal handles current up to 9A, it's a safe bet for carrying common electrical loads.

• Contact lifespan of 30 mating cycles for long-term performance

• Supports conductor sizes between 24 and 18AWG, so it's a versatile connector

• Comes in a pack of 25, so you'll have plenty for lots of jobs

Applications

• Computer building

• Telecommunications networks

• Lighting systems

What voltage does this terminal handle?

It withstands up to 600V, so it's suitable for low-voltage to medium-voltage setups.

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900
