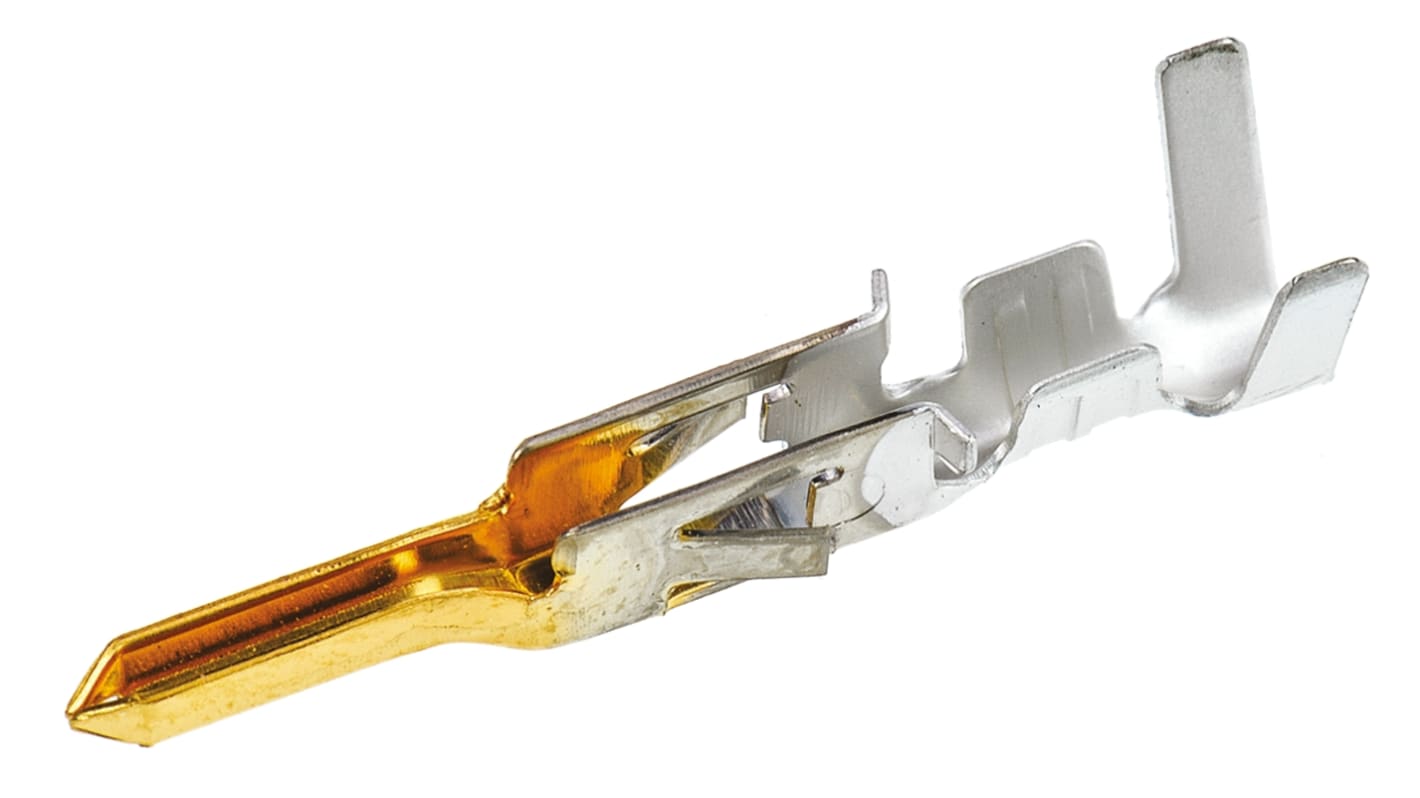

Molex Mini-Fit Series Male Crimp Terminal, 24AWG Min, 18AWG Max

RS Stock No.:: 670-6394
Mfr. Part No.:: 39-00-0219
Manufacturer:: Molex

Molex Mini-Fit Series Male Crimp Terminal, 24AWG Min, 18AWG Max

Bulk discount available

Subtotal (1 pack of 100 units)**

PHP2,146.20

(exc. VAT)

PHP2,403.70

(inc. VAT)

400 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP3,000.00 (ex VAT)

Real time qty checker

Units	Per Unit	Per Pack**
100 - 900	PHP21.462	PHP2,146.20
1000 - 2900	PHP20.818	PHP2,081.80
3000 - 7400	PHP20.194	PHP2,019.40
7500 - 14900	PHP19.745	PHP1,974.50
15000 +	PHP19.316	PHP1,931.60

**price indicative

RS Stock No.:: 670-6394
Mfr. Part No.:: 39-00-0219
Manufacturer:: Molex

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

Molex Mini-Fit Series Crimp Terminal, 0.2mm² Minimum Wire size, 9A Maximum Current - 39-00-0220

This crimp terminal is designed for use with Mini-Fit Jr connectors, offering reliable electrical connections in various applications. As a male crimp terminal, it accommodates wire sizes between 18 to 24 AWG while providing robust performance in demanding environments. Constructed from phosphor bronze with gold plating, it ensures low contact resistance and high durability.

Features & Benefits

• Rated for a maximum current of 9A to support high-power requirements
• Gold plating delivers superior conductivity and corrosion resistance
• Temperature resistant with operating ranges from -40 to +105 °C
• Supports wire insulation diameters from 1.30 to 3.10 mm
• Compatible with multiple Mini-Fit connector housings for versatility

Applications

• Ideal for automation and electrical systems requiring crimp terminals
• Recommended for mechanical systems where high current connections are needed
• Suitable for connecting various electrical components in industrial settings

What is the recommended crimping tool for this terminal?

A hand crimp tool designed for 16 to 24 AWG wire is recommended to ensure proper crimp quality and reliability when terminating connections.

What should I consider when determining wire size compatibility?

Ensure the selected wire size falls within the 18 to 24 AWG range, as using an improper size can affect performance and increase contact resistance.

How does the gold plating benefit electrical connections?

Gold plating improves electrical conductivity and protects against oxidation, ensuring consistent and reliable performance in all applications.

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Molex Minifit Jr.™ Series

Attribute	Value
Gender	Male
For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Series	Mini-Fit
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Termination Method	Crimp
Minimum Wire Size AWG	24AWG
Contact Plating	Gold
Maximum Wire Size AWG	18AWG
Contact Material	Phosphor Bronze
Series Number	5558
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+105°C
