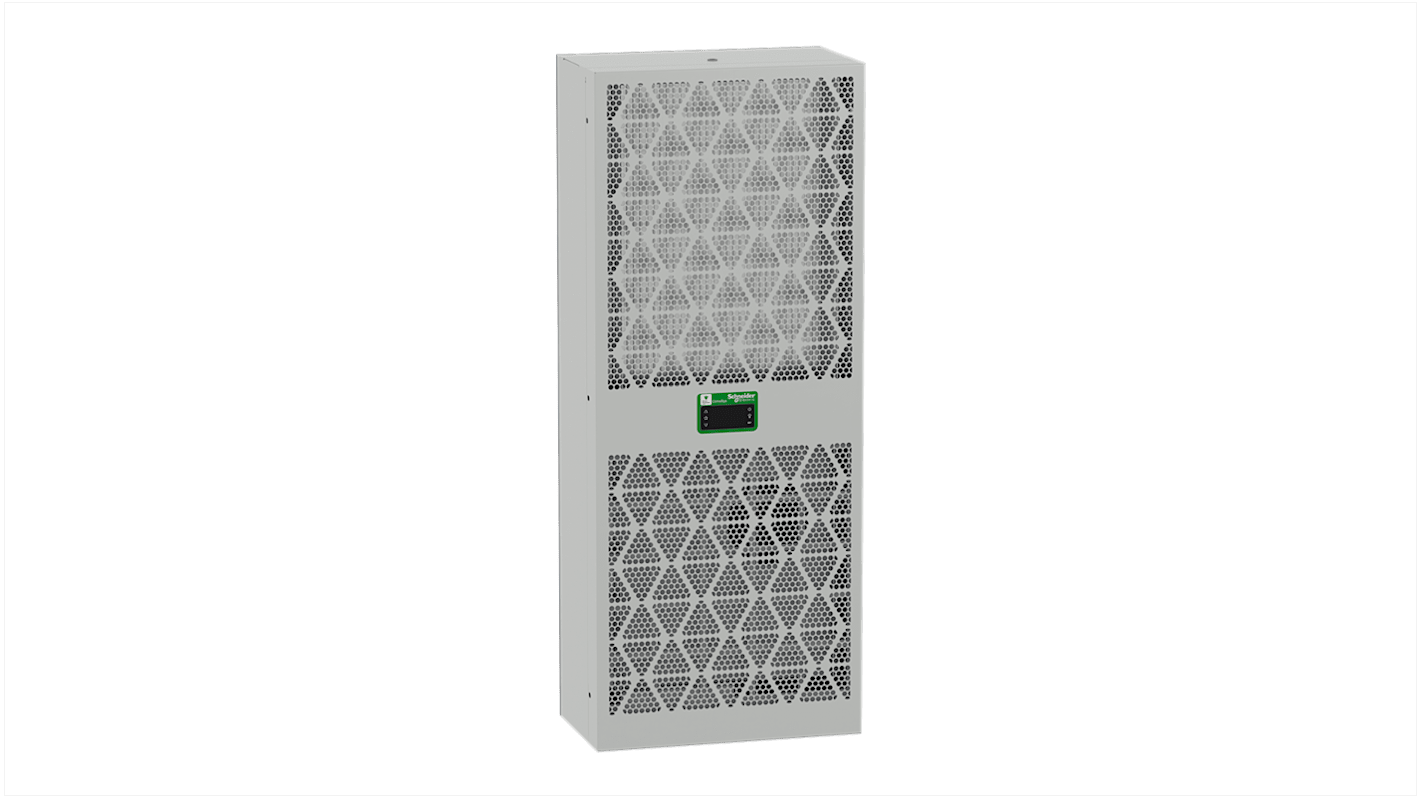

Schneider Electric ClimaSys Series Enclosure Cooling Unit, 1650W, 850 m³/h 460 V ac 1000 mm 405 mm 225 mm
- RS Stock No.:
- 285-5401
- Mfr. Part No.:
- NSYCU1K62P4DG
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP280,195.15
(exc. VAT)
PHP313,818.57
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from March 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP280,195.15 |
*price indicative
- RS Stock No.:
- 285-5401
- Mfr. Part No.:
- NSYCU1K62P4DG
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 1650W | |
| Air Flow | 850m³/h | |
| Noise Level | 72dB | |
| Input Power | 1650W | |
| Mount Type | Side | |
| Connection Type | Side | |
| Power Consumption | 880W | |
| Maximum Supply Voltage | 460V ac | |
| IP Rating | IP55, IP24 | |
| Certification | UL | |
| Material | Steel | |
| Maximum Temperature Setting | 55°C | |
| Min Temperature Setting | 20°C | |
| Type of installation | Indoor | |
| Height | 1000mm | |
| Width | 405 mm | |
| Depth | 225mm | |
| Series | ClimaSys | |
| Standards/Approvals | EN 60335-2-40, EN/ISO 12100, EN 60335-1, EN/IEC 63000:2018, EN 61000-3-3, EN 14511, EN 61000-6-3, EN 61000-3-2, EN 61000-6-2 | |
| Weight | 44.5kg | |
| Cooler Type | Cooling Unit | |
| Refrigerant Type | R134A | |
| Cooling Capacity | 1650W | |
| Nominal Current | 2.8A | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 1650W | ||
Air Flow 850m³/h | ||
Noise Level 72dB | ||
Input Power 1650W | ||
Mount Type Side | ||
Connection Type Side | ||
Power Consumption 880W | ||
Maximum Supply Voltage 460V ac | ||
IP Rating IP55, IP24 | ||
Certification UL | ||
Material Steel | ||
Maximum Temperature Setting 55°C | ||
Min Temperature Setting 20°C | ||
Type of installation Indoor | ||
Height 1000mm | ||
Width 405 mm | ||
Depth 225mm | ||
Series ClimaSys | ||
Standards/Approvals EN 60335-2-40, EN/ISO 12100, EN 60335-1, EN/IEC 63000:2018, EN 61000-3-3, EN 14511, EN 61000-6-3, EN 61000-3-2, EN 61000-6-2 | ||
Weight 44.5kg | ||
Cooler Type Cooling Unit | ||
Refrigerant Type R134A | ||
Cooling Capacity 1650W | ||
Nominal Current 2.8A | ||
Frequency 60Hz | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MT
The Schneider Electric Climasys CU Cooling Unit is a high-quality product designed to efficiently cool enclosures, ensuring optimal performance and longevity of electronic components. With a sleek steel construction and advanced electronic controller, this cooling unit is a reliable solution for maintaining a stable temperature range in indoor environments.
Mounting Type of Side installation for easy setup and space-saving design.
Rated Power of 1650 W to provide sufficient cooling power for electronics.
Noise Level of 72 dB for quiet operation in indoor settings.
Cooling Gas Type R134a for effective cooling performance.
Circuit breaker and thermal protection for safety and reliability.
Degree Of Protection IP55 conforming to IEC 60529 for protection against dust and moisture.
