Rittal SK 3374.540 Series Enclosure Cooling Unit, 3000W, 1300 m³/h 400V ac 950 mm 400mm 145 mm
- RS Stock No.:
- 224-0066
- Mfr. Part No.:
- 3374540
- Manufacturer:
- Rittal
Subtotal (1 unit)*
PHP159,142.73
(exc. VAT)
PHP178,239.86
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from June 12, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP159,142.73 |
*price indicative
- RS Stock No.:
- 224-0066
- Mfr. Part No.:
- 3374540
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 3000W | |
| Air Flow | 1300m³/h | |
| Input Power | 169W | |
| Mount Type | Wall | |
| Connection Type | 1/2 in Connector Sleeve, G 3/8 in External Thread | |
| Power Consumption | 232W | |
| Maximum Supply Voltage | 400V ac | |
| IP Rating | IP55 | |
| Certification | EAC, FTTA uR, UL, CSA, cUr, cUL | |
| Material | Copper, Brass (Cu/Cuzn) | |
| Type of installation | External or Full Internal | |
| Maximum Temperature Setting | 55°C | |
| Min Temperature Setting | 1°C | |
| Depth | 145mm | |
| Series | SK 3374.540 | |
| Width | 400mm | |
| Standards/Approvals | CSA UL+C-UL-FTTA UR+C-UR, EAC | |
| Weight | 26kg | |
| Height | 950mm | |
| Nominal Current | 0.58A | |
| Cooling Capacity | 3kW | |
| Refrigerant Type | Water | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 3000W | ||
Air Flow 1300m³/h | ||
Input Power 169W | ||
Mount Type Wall | ||
Connection Type 1/2 in Connector Sleeve, G 3/8 in External Thread | ||
Power Consumption 232W | ||
Maximum Supply Voltage 400V ac | ||
IP Rating IP55 | ||
Certification EAC, FTTA uR, UL, CSA, cUr, cUL | ||
Material Copper, Brass (Cu/Cuzn) | ||
Type of installation External or Full Internal | ||
Maximum Temperature Setting 55°C | ||
Min Temperature Setting 1°C | ||
Depth 145mm | ||
Series SK 3374.540 | ||
Width 400mm | ||
Standards/Approvals CSA UL+C-UL-FTTA UR+C-UR, EAC | ||
Weight 26kg | ||
Height 950mm | ||
Nominal Current 0.58A | ||
Cooling Capacity 3kW | ||
Refrigerant Type Water | ||
Frequency 60Hz | ||
- COO (Country of Origin):
- IT

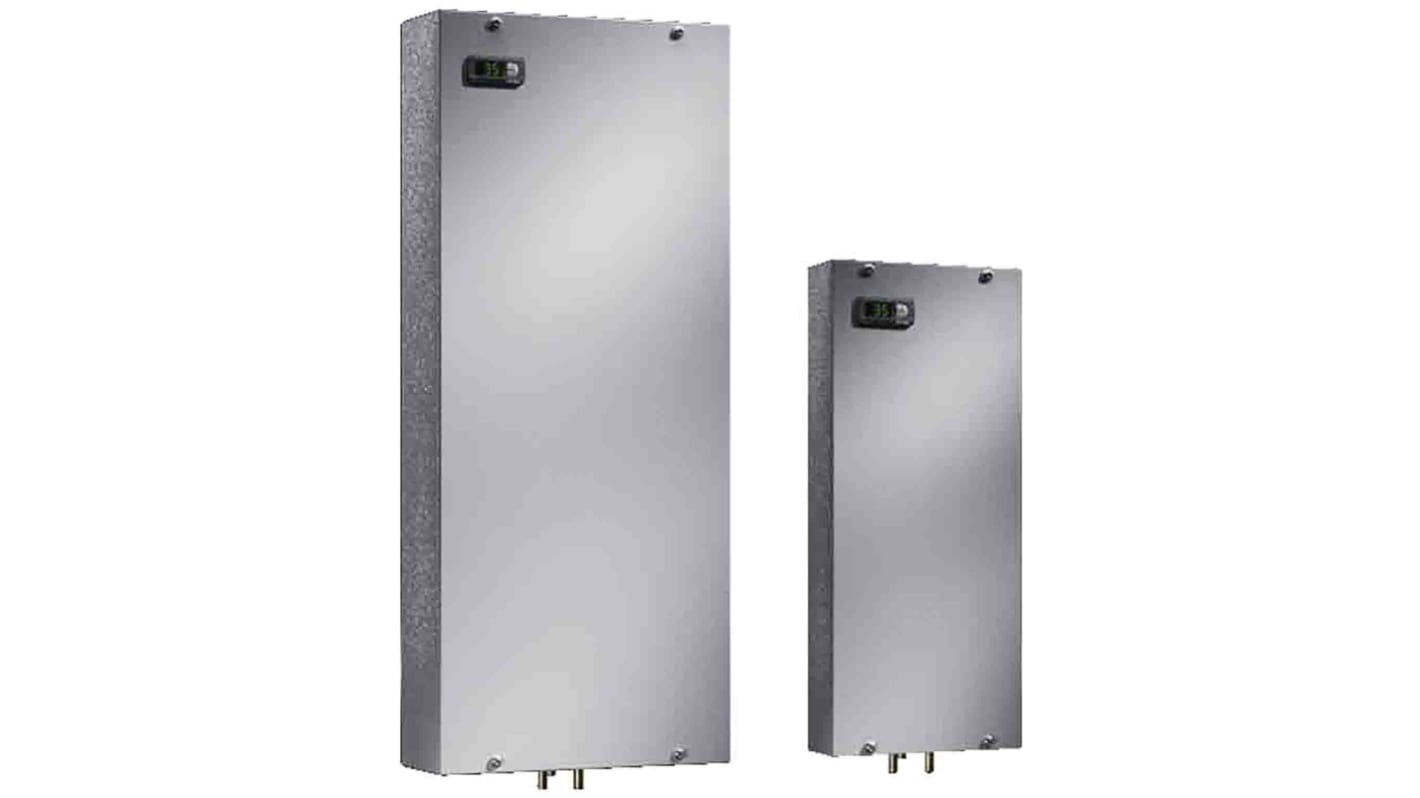

The Rittal SK series is the wall-mounted heat exchanger for use in harsh environments and temperature ranges up to +70 °C. Its user-friendly assembly plus flexible water connection options. External mounting or full internal mounting are supported. The total cooling output of the heat exchanger is 3kW.
IP degree of protection is IP55
Colour is RAL 7035
Operation temperature is +1 °C to 70 °C
