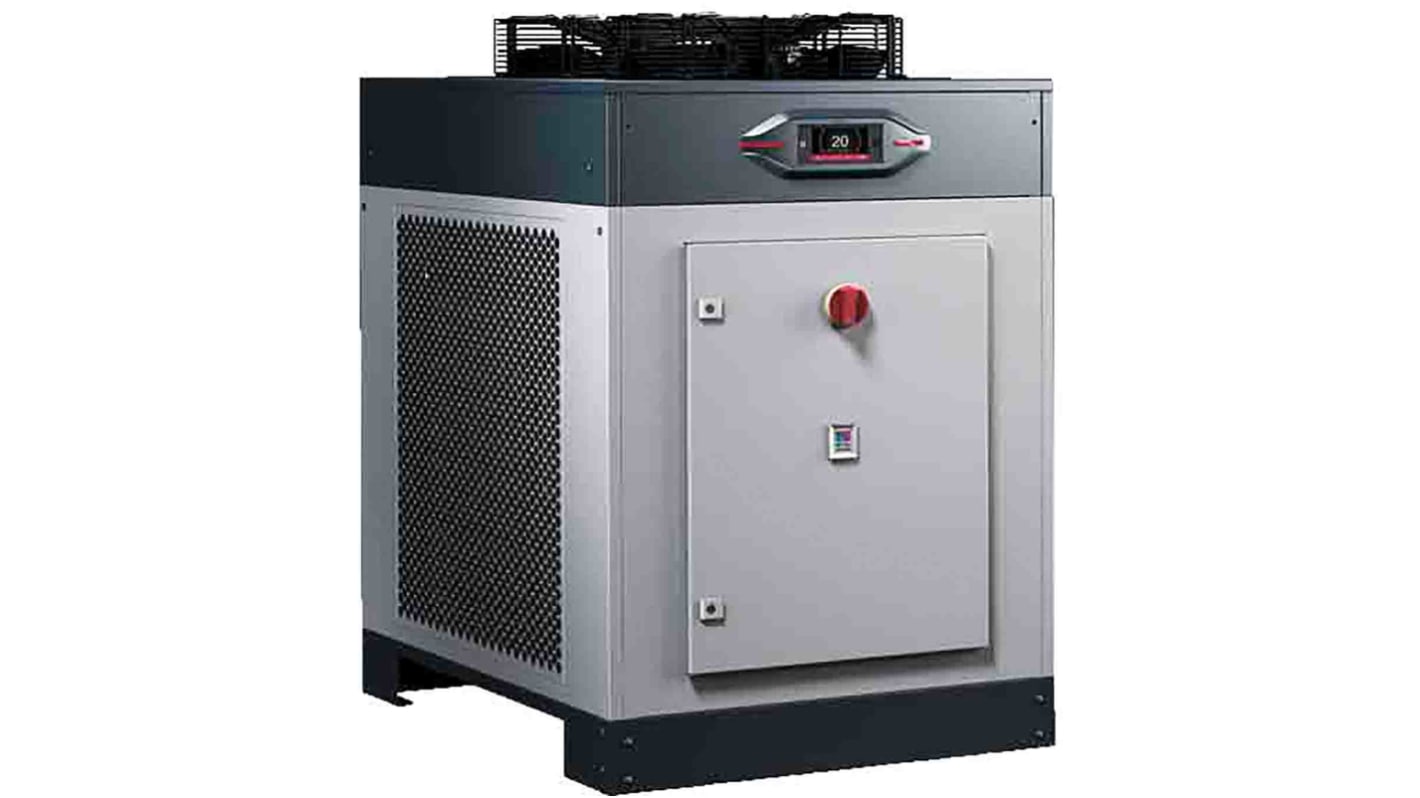

Rittal Blue e Series, 14500 m³/h Enclosure Cooling Unit, 19900W 400V ac 1.26 m 760mm 1.52 m
- RS Stock No.:
- 224-0029
- Mfr. Part No.:
- 3336450
- Manufacturer:
- Rittal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP1,223,380.86
(exc. VAT)
PHP1,370,186.56
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from October 13, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP1,223,380.86 |
| 5 - 9 | PHP1,198,913.24 |
| 10 + | PHP1,174,934.98 |
*price indicative
- RS Stock No.:
- 224-0029
- Mfr. Part No.:
- 3336450
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 19900W | |
| Air Flow | 14500m³/h | |
| Noise Level | 79dBA | |
| Input Power | 10.6kW | |
| IP Rating | IP44 | |
| Maximum Supply Voltage | 400V ac | |
| Material | Polyethylene | |
| Maximum Temperature Setting | 43°C | |
| Min Temperature Setting | 10°C | |
| Series | Blue e | |
| Height | 1.26m | |
| Depth | 1.52m | |
| Width | 760mm | |
| Standards/Approvals | EAC | |
| Weight | 404kg | |
| Cooler Type | SK 3336.450 | |
| Refrigerant Type | R410a | |
| Nominal Current | 22.4A | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 19900W | ||
Air Flow 14500m³/h | ||
Noise Level 79dBA | ||
Input Power 10.6kW | ||
IP Rating IP44 | ||
Maximum Supply Voltage 400V ac | ||
Material Polyethylene | ||
Maximum Temperature Setting 43°C | ||
Min Temperature Setting 10°C | ||
Series Blue e | ||
Height 1.26m | ||
Depth 1.52m | ||
Width 760mm | ||
Standards/Approvals EAC | ||
Weight 404kg | ||
Cooler Type SK 3336.450 | ||
Refrigerant Type R410a | ||
Nominal Current 22.4A | ||
Frequency 60Hz | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the chiller and the total cooling output is 19.9 Kw.The rated maximum current required for chiller is 21.7 A and its power consumption is 10.6 Kw.
Robust industrial standard
Touch display for simplified user guidance
Intelligent interfaces
Integral safety functions
IP degree of protection is IP 44
