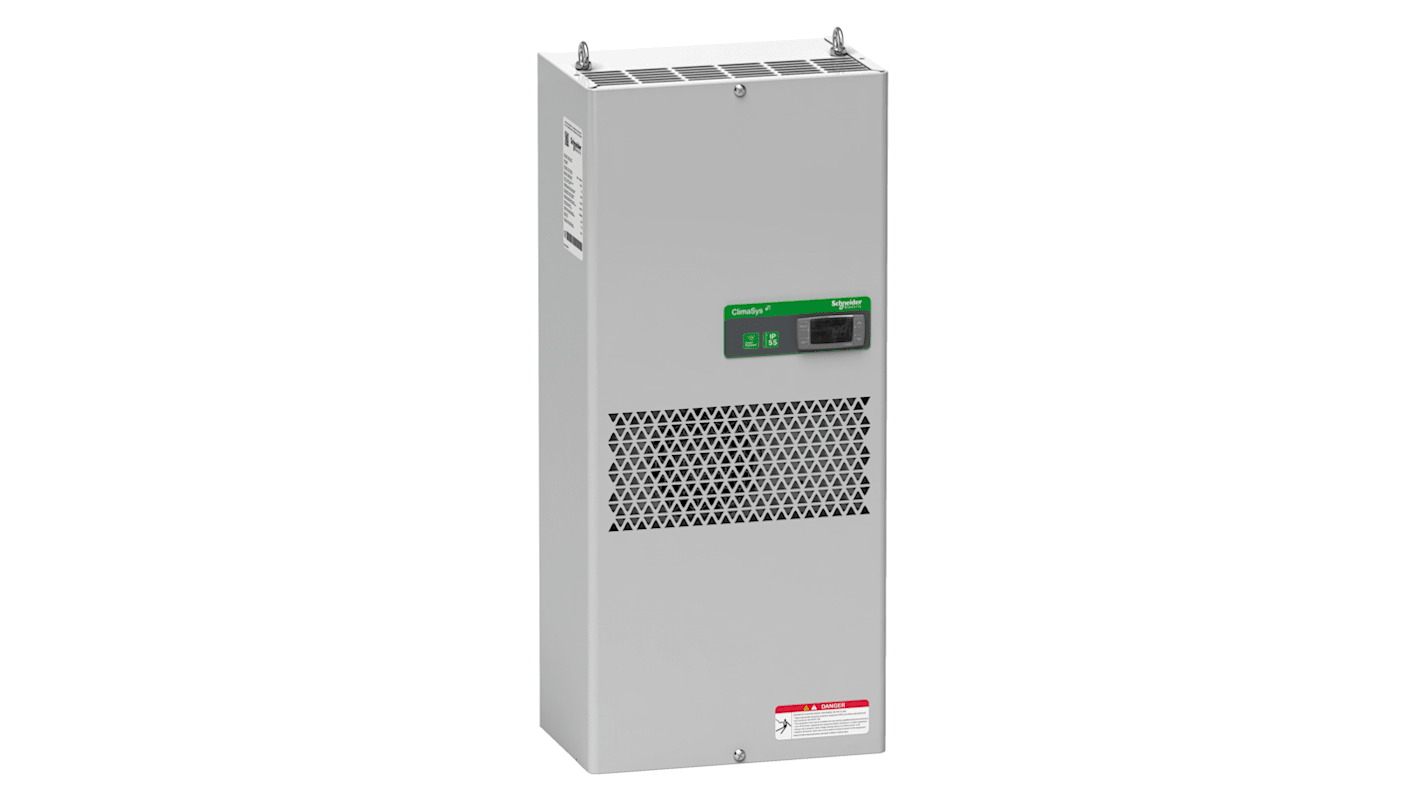

Schneider Electric ClimaSys Series Enclosure Cooling Unit, 1000W, 330 m³/h 440V ac 783 mm 348mm 273 mm
- RS Stock No.:
- 211-2737
- Mfr. Part No.:
- NSYCU1K2P4
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP225,941.72
(exc. VAT)
PHP253,054.73
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from August 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP225,941.72 |
*price indicative
- RS Stock No.:
- 211-2737
- Mfr. Part No.:
- NSYCU1K2P4
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 1000W | |
| Air Flow | 330m³/h | |
| Noise Level | 65dB | |
| Mount Type | Side | |
| Input Power | 590W | |
| Power Consumption | 670W | |
| Maximum Supply Voltage | 440V ac | |
| IP Rating | IP55, IP34 | |
| Material | Steel | |
| Certification | CE | |
| Maximum Temperature Setting | 50°C | |
| Min Temperature Setting | 20°C | |
| Type of installation | Indoor | |
| Depth | 273mm | |
| Weight | 29kg | |
| Height | 783mm | |
| Width | 348mm | |
| Standards/Approvals | EN/ISO 12100, EN 60204-1, EN 60335-1, EN 378, EN 60335-2-40 | |
| Series | ClimaSys | |
| Cooler Type | Climasys CU | |
| Frequency | 60Hz | |
| Cooling Capacity | 790W | |
| Refrigerant Type | R134A (0.23 Kg) | |
| Nominal Current | 2A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 1000W | ||
Air Flow 330m³/h | ||
Noise Level 65dB | ||
Mount Type Side | ||
Input Power 590W | ||
Power Consumption 670W | ||
Maximum Supply Voltage 440V ac | ||
IP Rating IP55, IP34 | ||
Material Steel | ||
Certification CE | ||
Maximum Temperature Setting 50°C | ||
Min Temperature Setting 20°C | ||
Type of installation Indoor | ||
Depth 273mm | ||
Weight 29kg | ||
Height 783mm | ||
Width 348mm | ||
Standards/Approvals EN/ISO 12100, EN 60204-1, EN 60335-1, EN 378, EN 60335-2-40 | ||
Series ClimaSys | ||
Cooler Type Climasys CU | ||
Frequency 60Hz | ||
Cooling Capacity 790W | ||
Refrigerant Type R134A (0.23 Kg) | ||
Nominal Current 2A | ||
- COO (Country of Origin):
- IT
The Schneider Electric ClimaSys CU range are cooling units for harsh environments, where ambient temperatures can reach up to 55°C. The unit’s integrated alarm system will signal you in the event of any operational anomaly. An internal grid of a new design protects the components and personnel during operation of the equipment while at the same time facilitating cleaning and maintenance. The cooling units has three models of mounting which are roof model, floor model and side model.
Several mounting solutions
Enhanced protection
Precision of temperature control
Simplicity
UL, CE, EAC Certified
