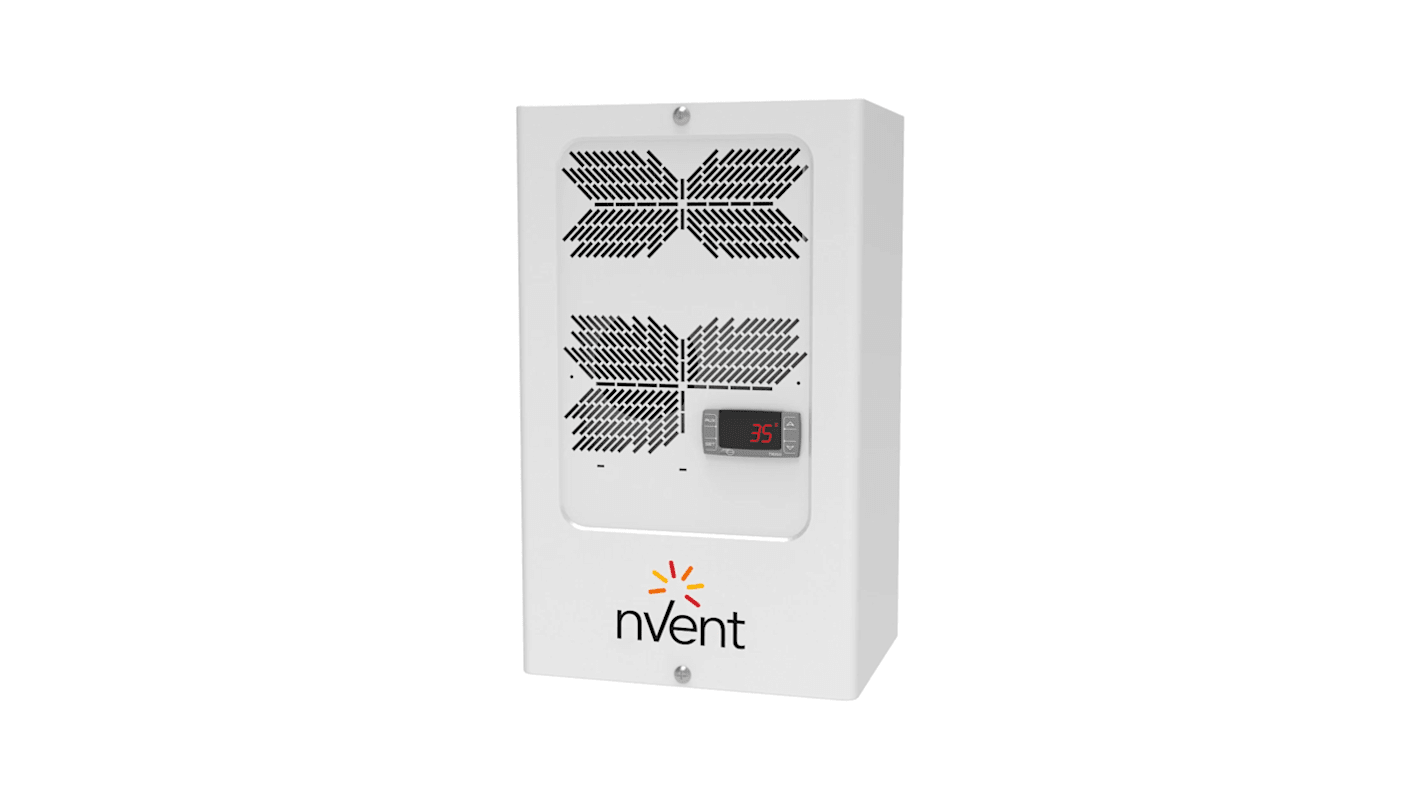

nVent HOFFMAN NXT04 Series, 165 m³/h Air Conditioning Unit, 380 115V 460 mm 280mm 200 mm
- RS Stock No.:
- 171-375
- Mfr. Part No.:
- NXT04C0T1U00000
- Manufacturer:
- nVent HOFFMAN
Subtotal (1 unit)*
PHP121,969.07
(exc. VAT)
PHP136,605.36
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from November 12, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP121,969.07 |
*price indicative
- RS Stock No.:
- 171-375
- Mfr. Part No.:
- NXT04C0T1U00000
- Manufacturer:
- nVent HOFFMAN
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent HOFFMAN | |
| Product Type | Air Conditioning Unit | |
| Maximum Cooling Power | 380 | |
| Air Flow | 165m³/h | |
| Noise Level | 60dB | |
| Mount Type | Vertical | |
| Connection Type | 4 Pin | |
| Power Consumption | 240W | |
| IP Rating | IP55 | |
| Maximum Supply Voltage | 115V | |
| Certification | UL, UKCA, CE | |
| Material | Galvanised Steel | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 55°C | |
| Type of installation | Vertical Mount | |
| Height | 460mm | |
| Depth | 200mm | |
| Weight | 17kg | |
| Series | NXT04 | |
| Standards/Approvals | UL Listed, UKCA, CE | |
| Width | 280mm | |
| Cooler Type | Vertical Cooling Unit | |
| Cooling Capacity | 240W | |
| Frequency | 60Hz | |
| Nominal Current | 3A | |
| Select all | ||
|---|---|---|
Brand nVent HOFFMAN | ||
Product Type Air Conditioning Unit | ||
Maximum Cooling Power 380 | ||
Air Flow 165m³/h | ||
Noise Level 60dB | ||
Mount Type Vertical | ||
Connection Type 4 Pin | ||
Power Consumption 240W | ||
IP Rating IP55 | ||
Maximum Supply Voltage 115V | ||
Certification UL, UKCA, CE | ||
Material Galvanised Steel | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 55°C | ||
Type of installation Vertical Mount | ||
Height 460mm | ||
Depth 200mm | ||
Weight 17kg | ||
Series NXT04 | ||
Standards/Approvals UL Listed, UKCA, CE | ||
Width 280mm | ||
Cooler Type Vertical Cooling Unit | ||
Cooling Capacity 240W | ||
Frequency 60Hz | ||
Nominal Current 3A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
The nVent Hoffman Cooling Unit features an IP55 NEMA type 12 protection degree, ensuring durability in various environments. It operates effectively within temperature limits of +20°C to +45°C and has a nominal voltage of 115 V. This makes it a reliable choice for maintaining optimal conditions in diverse applications.
Galvanized steel construction
Temperature limits outside is +20°C to +55°C
